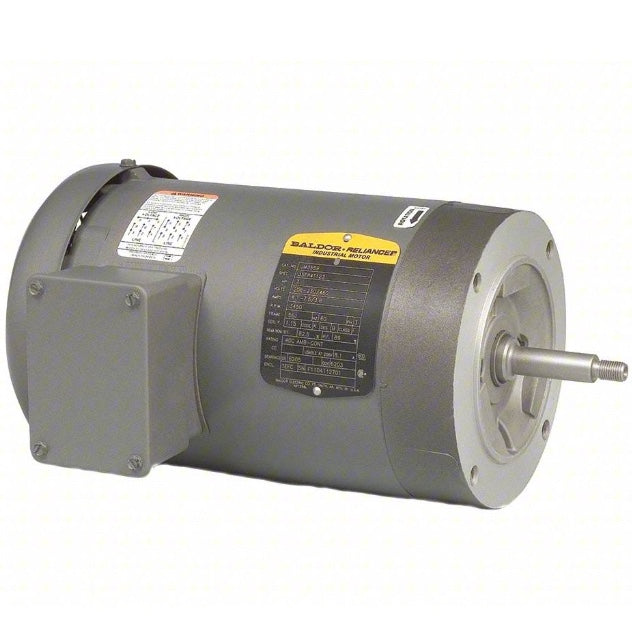

Baldor EJM3559 Jet Pump Motor (3 HP, Three Phase, 230/460V, 3450 RPM, 60 Hz, 56J, 3532M, TEFC)

Baldor EJM3559 Jet Pump Motor (3 HP, Three Phase, 230/460V, 3450 RPM, 60 Hz, 56J, 3532M, TEFC)

$1,298.74 USD
$1,451.00 USD $1,298.74 USD
Sale Sold out
Shipping calculated at checkout.

EJM3559

The Baldor EJM3559 3 HP Jet Pump Motor is designed to meet mounting requirements of JM, JP and West Coast Fit. Designed and manufactured by ABB / Baldor, a trusted name in the industry that surpasses NEMA standards consistently. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

Specifications:

Catalog Number: EJM3559
Voltage:  230/460

Enclosure:  TEFC

HP:  3

Frame:  56J

Frame Material:  Steel

Frequency:  60 Hz

Shaft Diameter:  5/8"

Motor Letter Type:  Three Phase

Motor Type:  3532M

Speed:  3450 RPM

Motor Standards:  NEMA

Baldor-Reliance Close-Coupled pump motors are available in a wide variety of construction enclosures from industrial steel band open designs to harsh applications requiring totally enclosed cast iron design. Various mounting provisions from JM, JP and Westcoast are available as stock and custom.

Series Features:

  • 1 – 75 hp
  • Designed to meet mounting requirements of JM, JP and West Coast Fit
  • Motor flange and shaft designed to support pump unit
  • Oversized ball bearing with locked DE construction to minimize endplay
  • Dynamically balanced rotor to reduce noise and increase bearing life
  • Inverter-Ready
  • Motor enclosures available in both enclosed and open
  • 1.15 SF, Class F Insulation
  • Stainless Steel version: Class H insulation system
  • Corrosion resistant finish
  • 3 Year warranty, NEMA Premium® Efficiency

Common Industries:

  • Aggregate
  • Cement
  • Chemical
  • Forest
  • Petroleum
  • Pulp & Paper
  • Food

Common Applications:

  • Residential and Industrial pumps
  • Transfer and circulating pumps
  • Fluid handling
  • Water treatment
  • Food Processing
