Berkeley 07SJH11C Stainless Steel Self-Priming Shallow Well Jet Pump (3/4 HP, Single Phase, 115/230V)

The Berkeley 07SJH11C Stainless Steel Self-Priming Shallow Well Jet Pump outlasts it's cast iron and plastic pump casing peers. Suitable for wells up to 25' of depth. Berkeley tests all pumps before they leave the factory allowing you to purchase and install with confidence. Designed and manufactured by Pentair Berkeley, a trusted name in the industry.

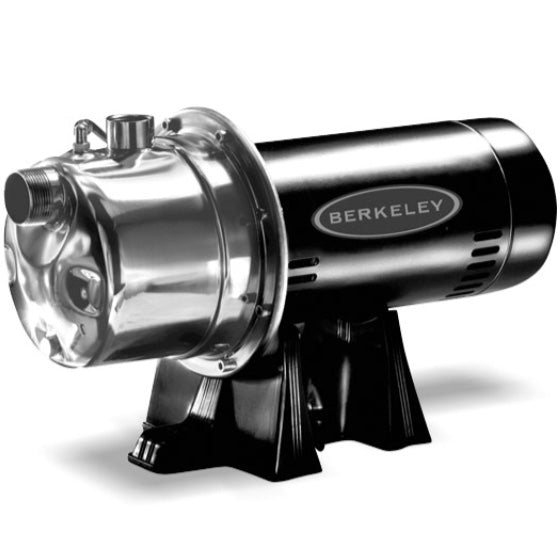

Picture is a stock series photo - it may not match your model. Please contact customer service for assistance selecting the correct product.

Pump Casing Material:  Stainless Steel

Voltage:  115/230V

Motor:  3/4 HP, Single Phase

Ports:  1-1/4" x 1"

Maximum Water Temperature:  140 Degrees F

Duty Cycle:  Continuous

Frequency:  60 Hz

ClearJet models provide excellent performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water.

• Stainless Steel Pump Body Provides Maximum Resistance To Corrosion
• Built-In Jet Made of High Strength Thermoplastic Components
• Mechanical Shaft Seal with Highly Polished Carbon-Ceramic Faces and Stainless Steel Components
• Superior Insulation Materials Protect Motor Windings Against Excessive Moisture and Contaminants
• Dynamically Balanced Rotor is Die Cast Under High Pressure For Uniform Performance and Greater Efficiency
• Heavy-Duty Ball Bearings: Shielded, Permanently Lubricated Bearings, Extensively Tested To Ensure Extended Life and Smooth, Quiet Operation
• Stainless Steel Pump and Motor Shaft Provides Maximum Corrosion Resistance; One-Piece Threaded Shaft for Positive Impeller Drive and Alignment
• Dustproof Motor Cover Protects All Electrical Components From Dirt, Dust, and Insects. Ventilating Air Cannot Contaminate Vital Switching Components
• Quality Pressure Switch with Fixed 20 PSI Differential

Specifications:

• Maximum Liquid Temperature Limits: 122°F (50°C)
• Max. Inlet Pressure: 50 PSI
• Average Priming Time at 20 Feet: 07SJH11C = 5.3 min. 10SJH11C = 4.2 min.
• Body: 304 Stainless steel
• Jet Assembly, Diffuser, Impeller: Noryl®
• Shaft: One-piece threaded, 416 grade stainless steel
• Base: Polypropylene
