Berkeley B3ZRM-Replacement Parts for B66161 & B66168 Type B Series Water Truck Pumps Exploded Parts Diagram
Berkeley B3ZRM-Replacement Parts for B66161 & B66168 Type B Series Water Truck Pumps Exploded Parts Diagram
SKU:B3ZRM-PARTS-DIAGRAM
Couldn't load pickup availability

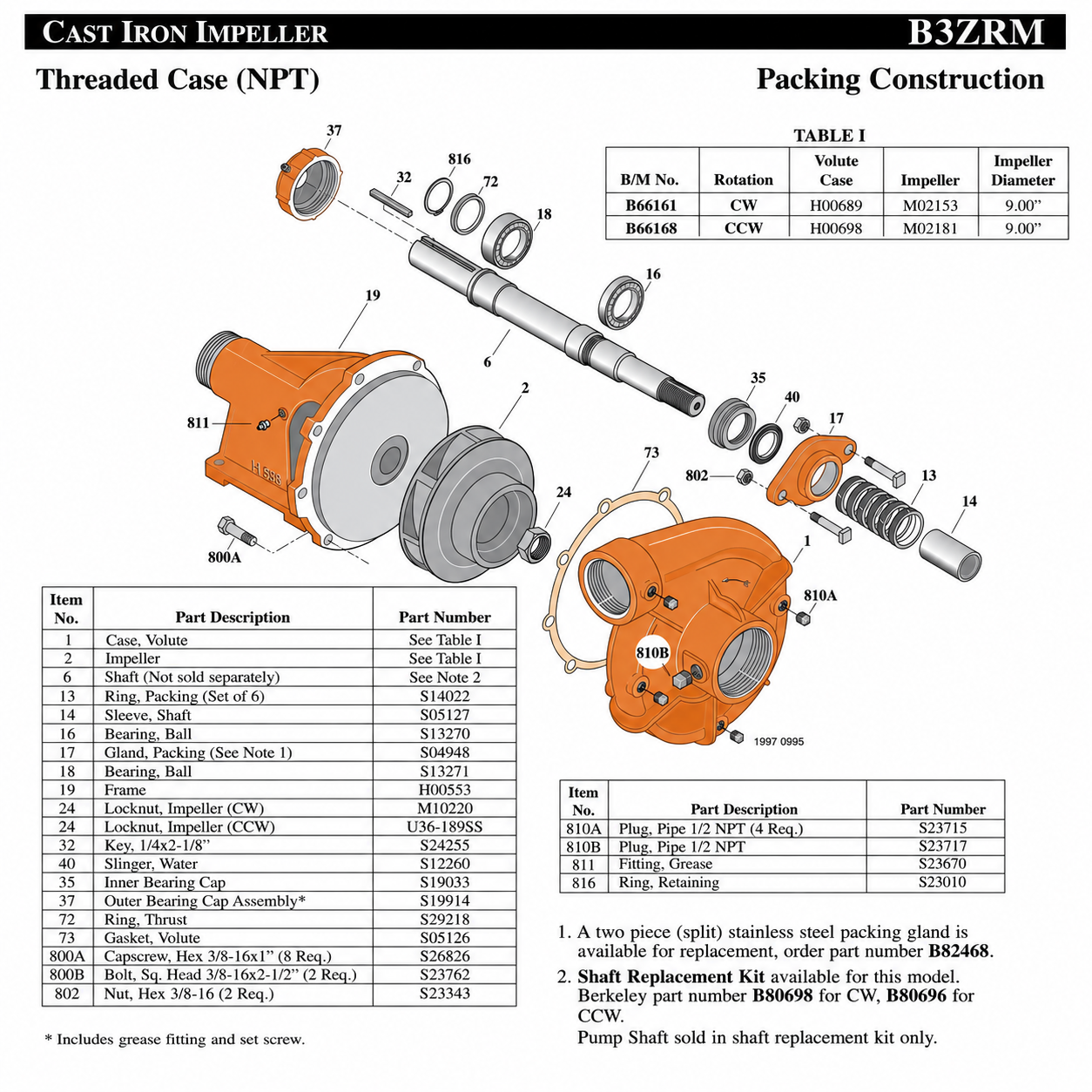

The Berkeley B3ZRM Replacement Parts listing provides repair and maintenance components for compatible Berkeley B66161 and B66168 Type B Series water truck centrifugal pumps. Use the exploded parts diagram and replacement parts table below to identify the correct component for your B3ZRM pump.
The B66161 is configured for CW (clockwise) rotation, while the B66168 is configured for CCW (counterclockwise) rotation. Rotation-specific parts, including the volute case, impeller, impeller locknut, and shaft replacement kit, should be verified before ordering.
Compatible Model: B3ZRM
Series: Type B Series / Z Series
Pump Application: Water Truck and Water Transfer
Volute Connection: Threaded NPT
Seal Construction: Packing
Impeller Material: Cast Iron
Berkeley B3ZRM Replacement Parts
| Item | Part Number | Part Description | Compatibility |
|---|---|---|---|
| 1 | H00689 | Volute Case | B66161 - CW |
| 1 | H00698 | Volute Case | B66168 - CCW |
| 2 | M02153 | 9-Inch Cast Iron Impeller | B66161 - CW |
| 2 | M02181 | 9-Inch Cast Iron Impeller | B66168 - CCW |
| 13 | S14022 | Packing Ring Set of 6 | B66161 / B66168 |
| 14 | S05127 | Shaft Sleeve | B66161 / B66168 |
| 16 | S13270 | Ball Bearing | B66161 / B66168 |
| 17 | S04948 | Packing Gland | B66161 / B66168 |
| 18 | S13271 | Ball Bearing | B66161 / B66168 |
| 19 | H00553 | Pump Frame | B66161 / B66168 |
| 24 | M10220 | CW Impeller Locknut | B66161 - CW |
| 24 | U36-189SS | CCW Impeller Locknut | B66168 - CCW |
| 32 | S24255 | 1/4 x 2-1/8 Inch Shaft Key | B66161 / B66168 |
| 35 | S19033 | Inner Bearing Cap | B66161 / B66168 |
| 37 | S19914 | Outer Bearing Cap Assembly | B66161 / B66168 |
| 40 | S12260 | Water Slinger | B66161 / B66168 |
| 72 | S29218 | Thrust Ring | B66161 / B66168 |
| 73 | S05126 | Volute Gasket | B66161 / B66168 |
| 800A | S26826 | 3/8-16 x 1 Inch Hex Capscrew | B66161 / B66168 |
| 800B | S23762 | 3/8-16 x 2-1/2 Inch Square Head Bolt | B66161 / B66168 |
| 802 | S23343 | 3/8-16 Hex Nut | B66161 / B66168 |
| 810A | S23715 | 1/4 NPT Pipe Plug | B66161 / B66168 |
| 810B | S23717 | 1/2 NPT Pipe Plug | B66161 / B66168 |
| 811 | S23670 | Grease Fitting | B66161 / B66168 |
| 816 | S23010 | Retaining Ring | B66161 / B66168 |
| Replacement | B82468 | Two-Piece Split Stainless Steel Packing Gland | B66161 / B66168 |
| Kit | B80698 | CW Shaft Replacement Kit | B66161 - CW |
| Kit | B80696 | CCW Shaft Replacement Kit | B66168 - CCW |
Rotation-Specific B3ZRM Parts
B66161 - CW Rotation
Volute Case: H00689
Impeller: M02153
Impeller Diameter: 9 Inches
Impeller Locknut: M10220
Shaft Replacement Kit: B80698
B66168 - CCW Rotation
Volute Case: H00698
Impeller: M02181
Impeller Diameter: 9 Inches
Impeller Locknut: U36-189SS
Shaft Replacement Kit: B80696
Important: The pump shaft is not sold separately. Berkeley identifies the shaft as available through the applicable shaft replacement kit only. Always verify your Berkeley pump model, rotation, and original part number before ordering replacement parts.
