Berkeley BFH50 FH Series Shallow Well Cast Iron Jet Pump (1/2 HP, Single Phase, 115/230V)

The Berkeley BFH50 FH Series Shallow Well Cast Iron Jet Pump is suitable for wells up to 25' of depth. Berkeley tests all pumps before they leave the factory allowing you to purchase and install with confidence. Designed and manufactured by Pentair Berkeley, a trusted name in the industry.

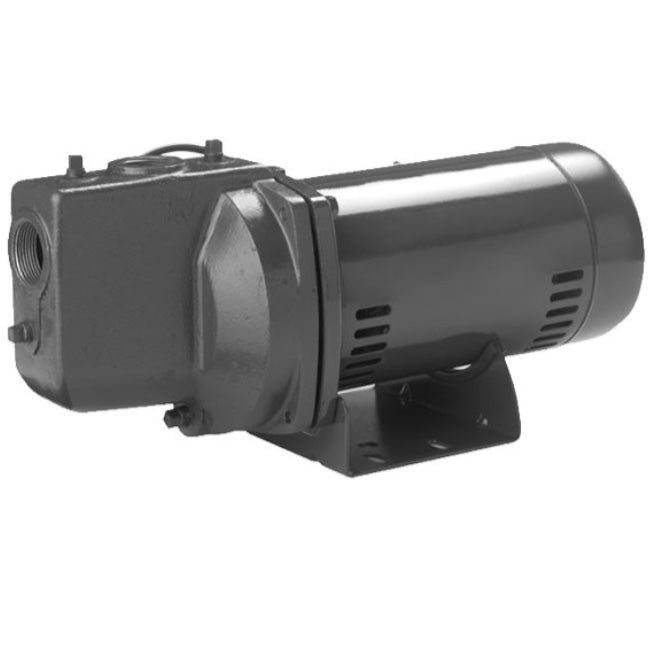

Picture is a stock series photo - it may not match your model. Please contact customer service for assistance selecting the correct product.

Pump Casing Material:  Cast Iron

Voltage:  115/230V

Motor:  1/2 HP, Single Phase

Ports:  1-1/4" x 1"

Maximum Water Temperature:  140 Degrees F

Duty Cycle:  Continuous

Frequency:  60 Hz

The FH Series Jet Pump provides best-in-class performance for shallow wells up to 25’ deep and flows over 20 GPM. Designed for the professional with heavy-duty cast iron construction, Noryl® internals and factory wired pressure switch for years of extended service. Available in 1/2 HP model.

• High performance and efficiency with high strength for longevity Precision molded noryl impeller with 300 grade stainless insert
• High performance and efficiency with superior abrasion resistance Precision molded reinforced polypropylene diffuser, nozzle and venturi
• Facilitates plumbing of accessories and easy access to nozzle for cleanout cast iron pump case with 1-1/4" suction and 1" discharge ports, two 1/4" auxiliary pressure ports and cleanout plug
• Positive alignment between pump case and motor Rugged cast iron seal plate
• Industry standard switch is easily field replaceable Factory installed Square D pressure switch with fixed 20 pound differential and 1/4" NPT port
• Every pump unit is factory tested Peace of mind for you and your customer

Specifications:

• Pump Case – Cast iron
• Diffuser – Reinforced Polypropylene
• Seal Plate – Cast iron
• Impeller – Noryl®
• Mechanical Shaft Seal, Type 6 – Buna-N, Carbon, Ceramic, 18-8 stainless steel
• Nozzle – Acetal
• Venturi Tube – Acetal
• 1⁄4” NPT Pipe Plug – Zinc plated steel
• Mounting Base – Steel
