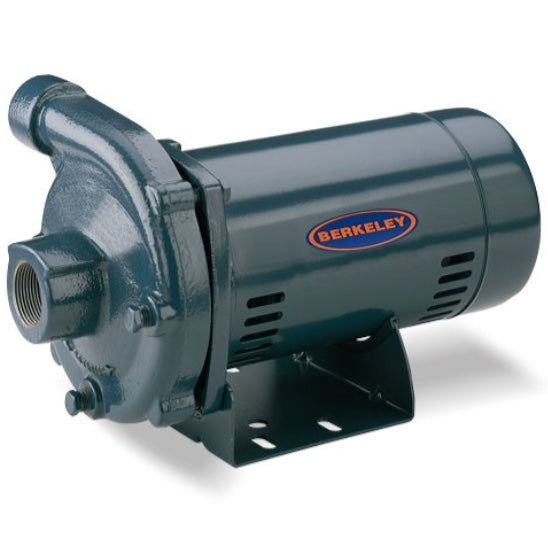

Berkeley S39516 CP1XPHS CP Series High Head Cast Iron Centrifugal Pump (1/2 HP, Single Phase, 115/230V, Noryl Impeller)

The Berkeley S39516 CP1XPHS CP Series High Head Cast Iron Centrifugal Pump is equipped with a reliable 1/2 HP electric motor and Noryl impeller. High Head models deliver a maximum of 140' of head. Designed and engineered by Pentair Berkeley - a leader in the water pump industry. Please contact a Dade Pump representative for assistance in selecting the correct pump and motor for your needs.

**Picture is stock photo and may not match**

Specifications:

Motor:  1/2 HP, Single Phase

Voltage:  115/230V

Pump Casing:  Cast Iron

Impeller:  Noryl

Ports:  1-1/4" x 1" NPT

The CP/CB Series Pumps have a heavy-duty cast iron construction and are offered in high and medium head models, with Noryl or brass impeller. Applications include water systems and sprinkling for homes, farms and industry.

Pentair Berkeley CP / CB Series Features & Benefits:

• Motor sizes 1/2 HP through 2-1/2 HP:  High head performance models, heavy-duty motors, easy serviceability, and four-position discharge
• Drain Port:  Provided for easy winterizing
• Performance Range - High Head Models: up to 150’+ of head, with capacities to over 100 gpm.
• Performance Range - Medium Head Models: up to 100’+ of head, with capacities to over 110 gpm.
• Easy Serviceability:  All models feature a replaceable wear ring, and a back pull-out design
• CP Series - Noryl Impellers:  Abrasion resistant for normal applications and working temperatures to 140 Degrees F
• CB Series – Silicon Bronze Impellers:  Include shaft seals rated for working temperatures to 225 Degrees F
• Volute and Seal Plate:  Close-grained Cast Iron
• Base Plate:  12 gauge stamped steel
• Motor Shaft: 300 series stainless steel
• Mechanical Seal: Carbon ceramic faces, BUNA-N cup and bellows
