Century

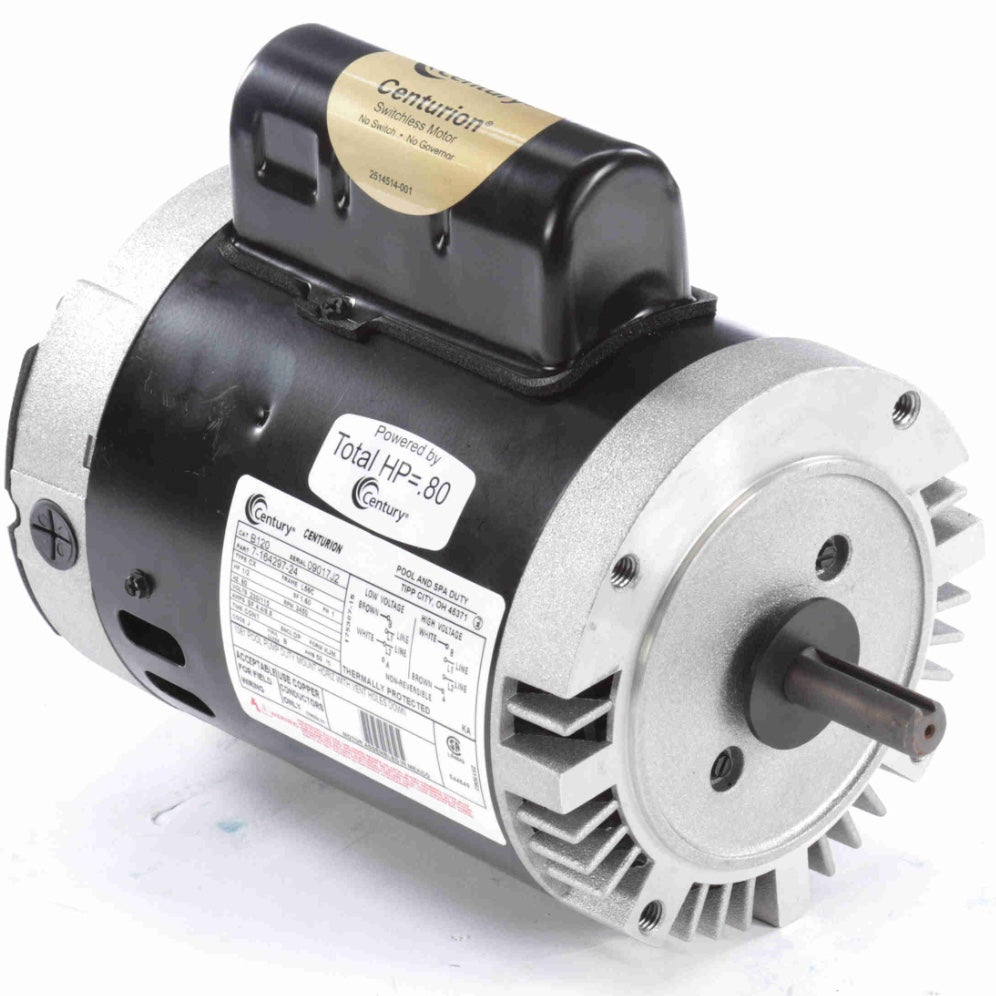

Century B121 3/4 HP Pool Pump Motor (Single Phase, 60 Hz, 115/230V, 3600 RPM, S56C, DP)
Century B121 3/4 HP Pool Pump Motor (Single Phase, 60 Hz, 115/230V, 3600 RPM, S56C, DP)
Regular price
$384.00 USD
Regular price
$717.00 USD
Sale price
$384.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:B121
Couldn't load pickup availability
**Unable to sell or install in New York or California**
Century Pool Pump Motor, 3/4 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, S56C Frame, DP - B121
- 50°C Ambient
- 304 Bearing Shaft End
- Switchless
- UL 1081 Design
- Permanent Split Capacitor
- Open Dripproof
- Rigid Base
- Keyed Shaft
Nameplate Specifications:
| Phase: | 1 | Output HP: | 3/4 Hp |
| Output KW: | 0.56 kW | Voltage: | 230/115 V |
| Speed: | 3450 rpm | Service Factor: | 1.5 |
| Frame: | S56C | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 50 °C |
| Frequency: | 60 Hz | Current: | SF 6.0/12.0 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor, Single Or Dual Voltage | Poles: | 2 |
| Rotation: | Counterclockwise Pump End | Mounting: | Round |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | 5/8 Keyed | Overall Length: | 11.44 in |
| Frame Length: | 6.38 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 2.07 in |
General Specifications:
| UPC: | 786674011824 | Weight: | 24.00 LB |
| Packaged Length: | 16.00 IN | Packaged Width: | 9.50 IN |
| Packaged Height: | 11.00 IN | HTC: | 8501.40.6040 |
| Country of Origin: | Mexico |
