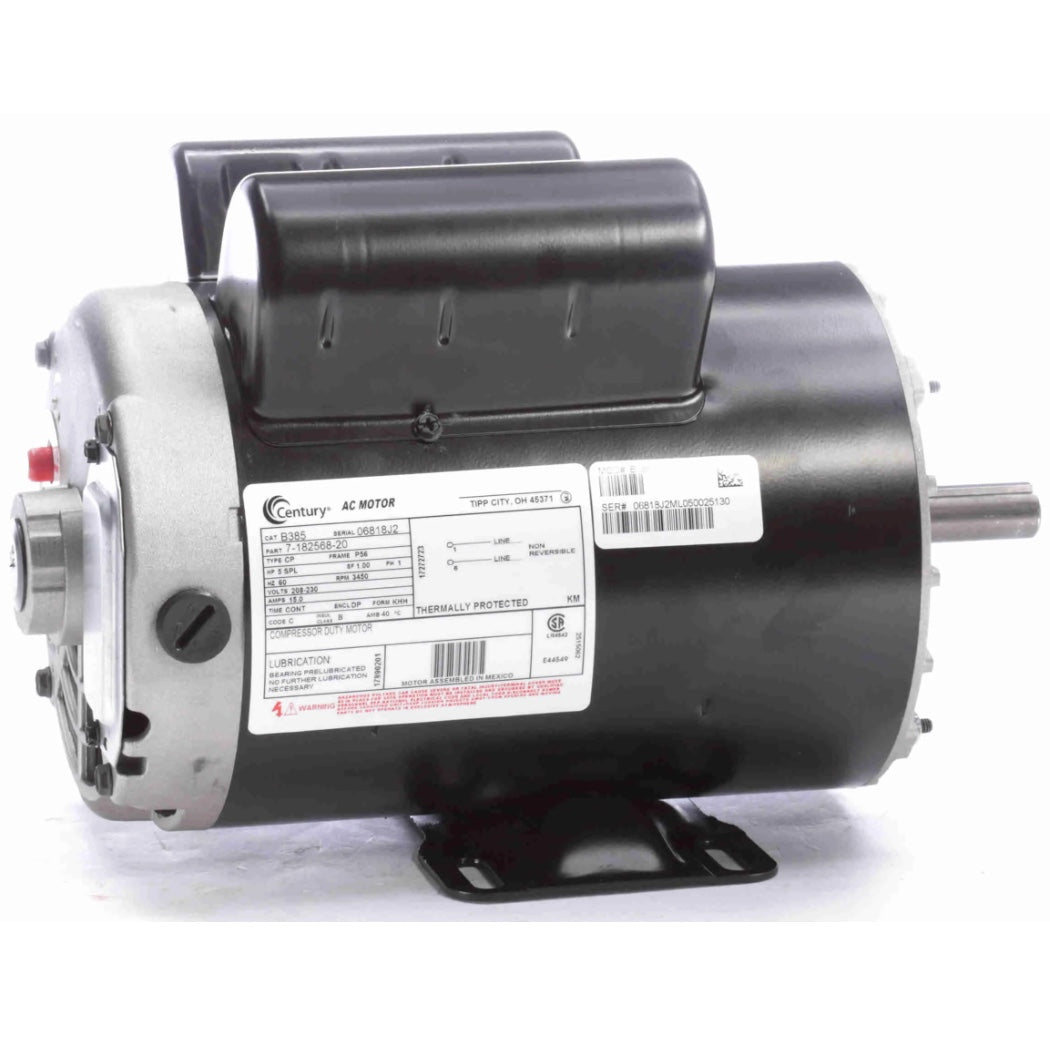

Century B385 5 HP Air Compressor Motor (Single Phase, 60 Hz, 208-230V, 3600 RPM, P56, DP) ** Clearance **

** Only Qty 2 in Stock at Clearance Price - New in Manufacturer Packaging **

Century B385 5 HP Air Compressor Motor (Single Phase, 60 Hz, 208-230V, 3600 RPM, P56, DP)

• Phase:	1	Output HP:	5 SPL Hp
  Output KW:	3.7 kW	Voltage:	208-230 V
  Speed:	3450 rpm	Service Factor:	1.00
  Frame:	P56	Enclosure:	Drip Proof
  Thermal Protection:	Thermally Protected	Ambient Temperature:	40 °C
  Frequency:	60 Hz	Current:	15.0 A
  Duty:	Continuous	Insulation Class:	B
  UL:	Recognized	CSA:	Y
  CE:	N	Number of Speeds:	1

• Electrical Type:	Capacitor Start, Capacitor Run, Single Or Dual Voltage	Starting Method:	Across The Line
  Poles:	2	Rotation:	Clockwise
  Mounting:	Rigid Base	Drive End Bearing:	Ball
  Opp Drive End Bearing:	Ball	Frame Material:	Rolled Steel
  Shaft Type:	Keyed	Overall Length:	12.59 in
  Frame Length:	8.00 in	Shaft Diameter:	0.625 in
  Shaft Extension:	1.94 in
