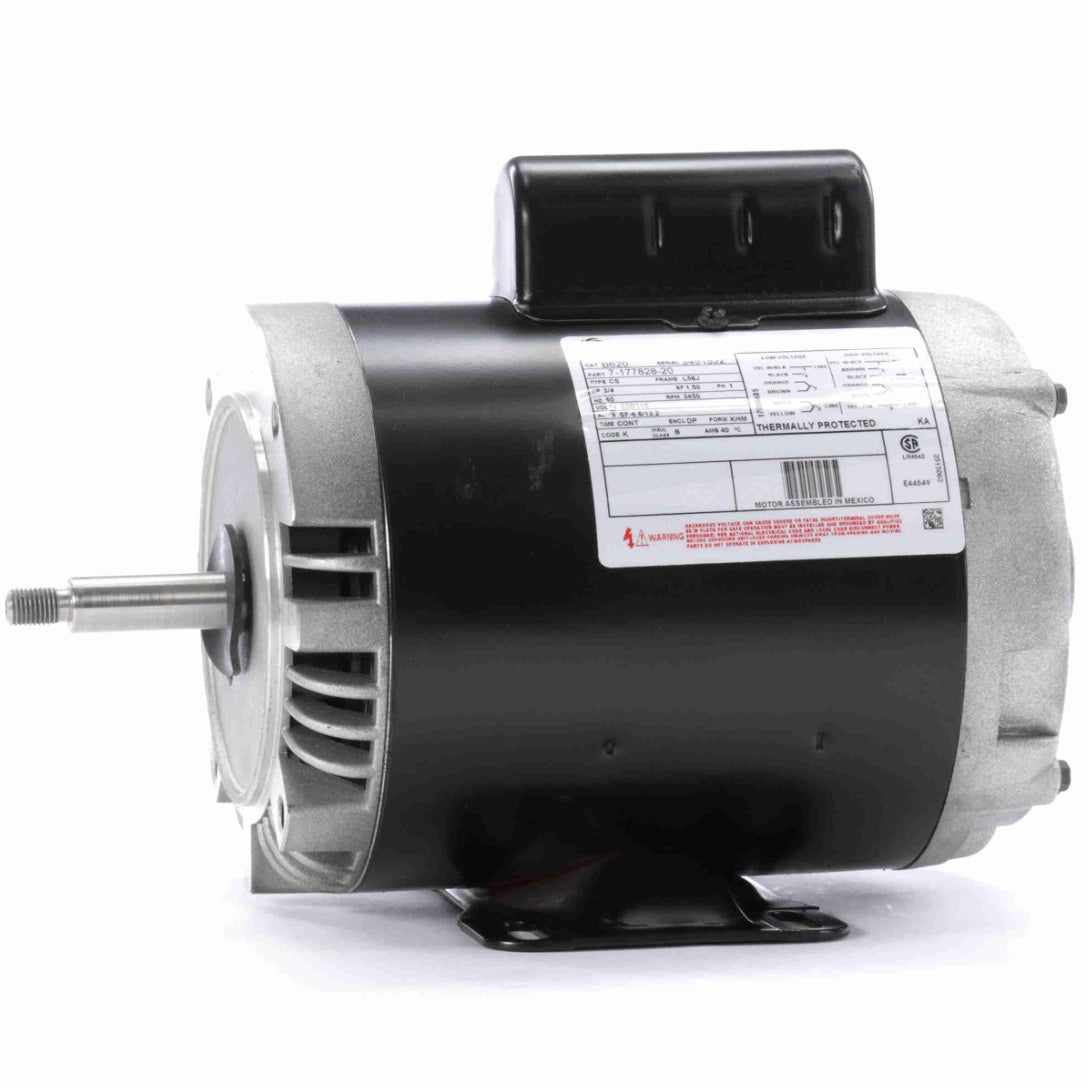

Century B620 3/4 HP Centrifugal Pump Electric Motor (Single Phase, 60 Hz, 115/230V, 3600 RPM, L56J, DP)**Clearance**

Century B620 3/4 HP Centrifugal Pump Electric Motor (Single Phase, 60 Hz, 115/230V, 3600 RPM, L56J, DP)**Clearance**

$217.00 USD
$717.00 USD $217.00 USD
Sale Sold out
Shipping calculated at checkout.

B620

**Brand New - Never Used. In Factory Packaging. 2 in stock at Clearance Price**

Century Centrifugal Pumps Motor, 3/4 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, L56J Frame, DP - B620

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Double sealed ball bearings mechanically locked on shaft end.
  • Continuous duty cycle design allows maximum operation at the rated power specifications.
  • Class F insulation(as noted) protects motor for a maximum temperature rating.

Nameplate Specifications:

Phase: 1 Output HP: 3/4 Hp
Output KW: 0.56 kW Voltage: 230/115 V
Speed: 3450 rpm Service Factor: 1.5
Frame: L56J Enclosure: Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: SF 6.6/13.2 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N

Technical Specifications:

Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Clockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 11.80 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 2.45 in

General Specifications:

UPC: 786674012616 Weight: 24.00 LB
Packaged Length: 16.00 IN Packaged Width: 8.00 IN
Packaged Height: 10.00 IN HTC: 8501.40.6040
Country of Origin: Mexico
