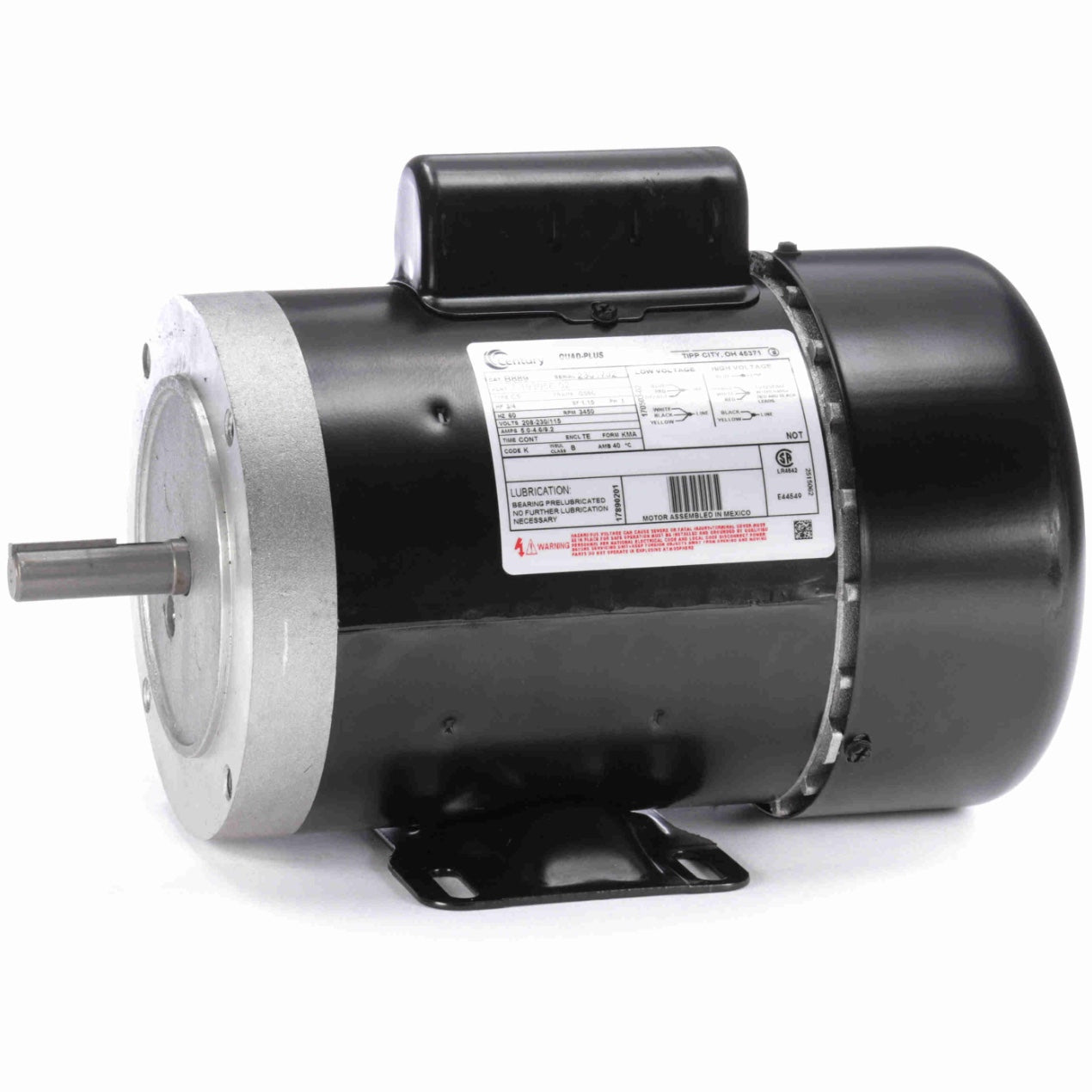

Century B889 3/4 HP General Purpose Electric Motor (Single Phase, 60 Hz, 115/208-230V, 3600 RPM, G56C, TEFC)**Clearance**

Century B889 3/4 HP General Purpose Electric Motor (Single Phase, 60 Hz, 115/208-230V, 3600 RPM, G56C, TEFC)**Clearance**

$248.00 USD
$717.00 USD $248.00 USD
Sale Sold out
Shipping calculated at checkout.

B889

**Brand New - Never Used. In Factory Packaging. 2 in stock at Clearance Price**

Century General Purpose Motor, 3/4 HP, 1 Ph, 60 Hz, 208-230/115 V, 3600 RPM, G56C Frame, TEFC - B889

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and efficiency performance.



Nameplate Specifications:

Phase: 1 Output HP: 3/4 Hp
Output KW: 0.56 kW Voltage: 208-230/115 V
Speed: 3450 rpm Service Factor: 1.15
Frame: G56C Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 5.0-4.6/9.2 A
Duty: Continuous Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1

Technical Specifications:

Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.21 in
Frame Length: 6.00 in Shaft Diameter: 0.625 in
Shaft Extension: 2.07 in

General Specifications:

UPC: 786674013361 Weight: 26.00 LB
Packaged Length: 15.50 IN Packaged Width: 10.50 IN
Packaged Height: 10.00 IN HTC: 8501.40.4040
Country of Origin: Mexico
