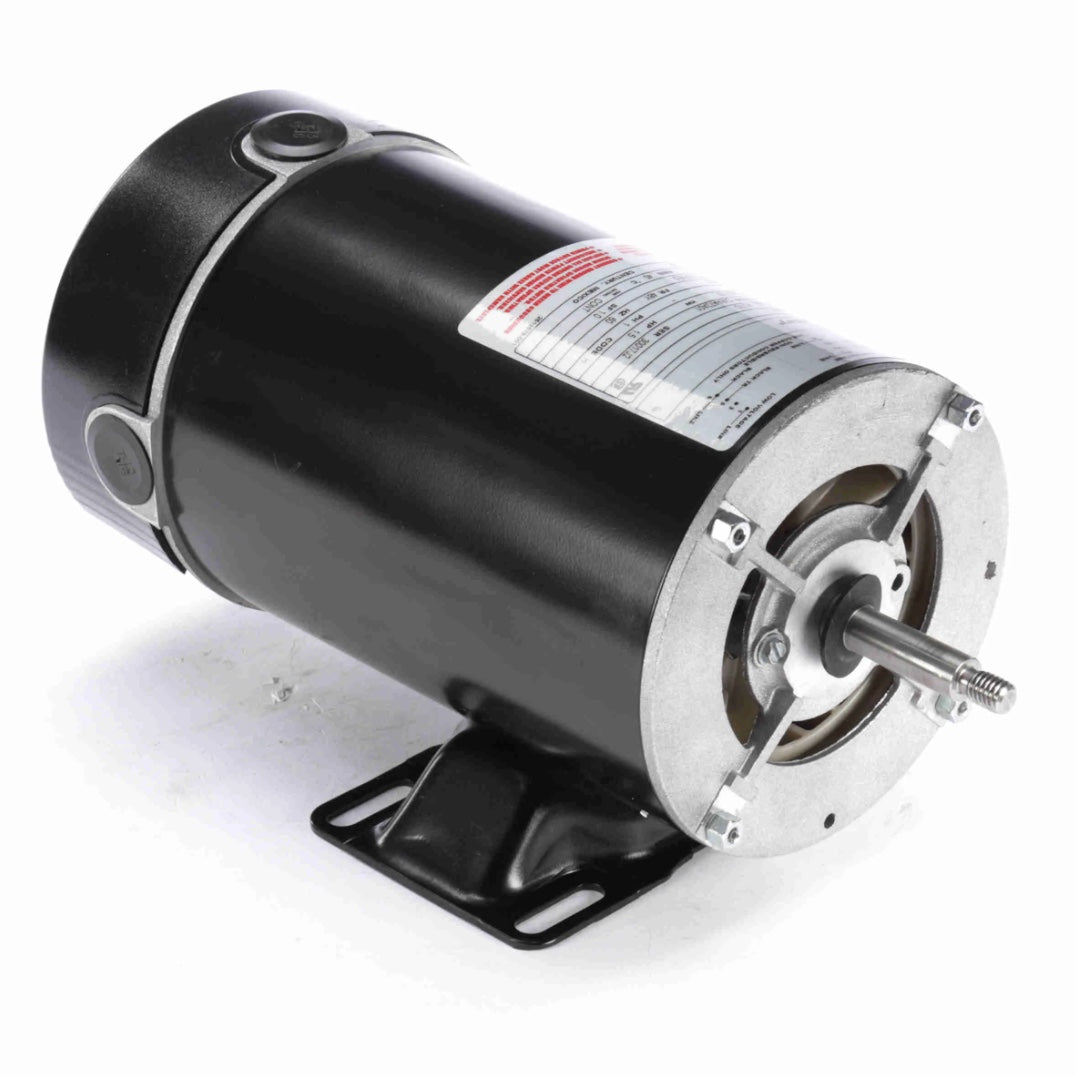

Century BN35V1 1.5 HP Pool Pump Motor (Single Phase, 60 Hz, 115/230V, 3600 RPM, 48Y)
Century BN35V1 1.5 HP Pool Pump Motor (Single Phase, 60 Hz, 115/230V, 3600 RPM, 48Y)
Regular price
$299.00 USD
Regular price
$495.00 USD
Sale price
$299.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:BN35V1
Couldn't load pickup availability
Century BN35V1 1.5 HP Pool Pump Motor (Single Phase, 60 Hz, 115/230V, 3600 RPM, 48Y)
Century Pool Pump Motor, 1.5 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 48Y Frame, DP - BN35V1
- 12 & 3 O'clock Conduit Entries
- 3-1/2" Shaft Height
- 40°C Ambient
- Stainless Steel Shaft
- Four Thru Bolts on a 5.146 Bolt Circle
- 48/56 Base Mounting
- Sealed Ball Bearings
- UL 1081 Design
- Rigid Base
- Threaded Shaft
Nameplate Specifications
| Phase: | 1 | Output HP: | 1.5 Hp |
| Output KW: | 1.1 kW | Voltage: | 230/115 V |
| Speed: | 3450 rpm | Service Factor: | 1 |
| Frame: | 48Y | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 8.0/16.0 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start, Induction Run, Single Or Dual Voltage | Poles: | 2 |
| Rotation: | Counterclockwise Pump End | Mounting: | Thru Bolt |
| Motor Orientation: | Horizontal | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | 3/8 Threaded | Overall Length: | 12.08 in |
| Frame Length: | 7.50 in | Shaft Diameter: | 0.500 in |
| Shaft Extension: | 2.375 in |
General Specifications
| UPC: | 786674056979 | Weight: | 20.00 LB |
| Packaged Length: | 16.00 IN | Packaged Width: | 9.50 IN |
| Packaged Height: | 9.50 IN | HTC: | 8501.40.6040 |
| Country of Origin: | Mexico |
