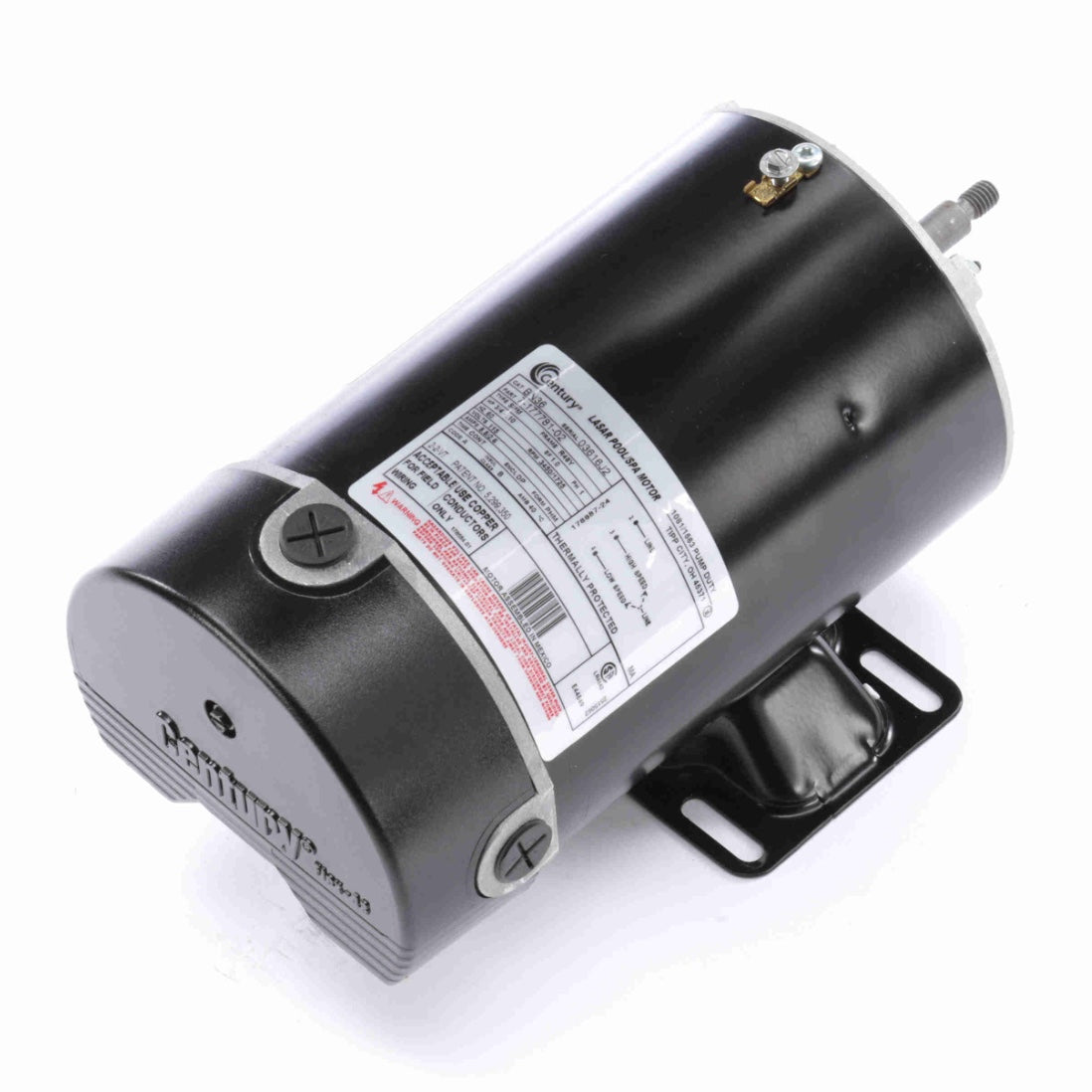

Century BN36 3/4-.10 HP Pool Pump Motor (Single Phase, 60 Hz, 115V, 3600 RPM, R48Y, DP)**Clearance**
Century BN36 3/4-.10 HP Pool Pump Motor (Single Phase, 60 Hz, 115V, 3600 RPM, R48Y, DP)**Clearance**
Regular price
$165.00 USD
Regular price
$445.00 USD
Sale price
$165.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:BN36
Couldn't load pickup availability
**3 in stock at Clearance Price
Unable to sell or install this product in New York or California**
Century Pool Pump Motor, 3/4 - .10 HP, 1 Ph, 60 Hz, 115 V, 3600 RPM, R48Y Frame, DP - BN36
- Two Speed
- 12 & 3 O'clock Conduit Entries
- 3-1/2" Shaft Height
- 40°C Ambient
- Four Thru Bolts on a 5.146 Bolt Circle
- Flex 48 LASAR Line Low Amp Start and Run
- 48/56 Base Mounting
- Threaded Shaft
- Rigid Base
Nameplate Specifications
| Phase: | 1 | Output HP: | 3/4 - .10 Hp |
| Output KW: | 0.56 kW | Voltage: | 115 V |
| Speed: | 3450/1725 rpm | Service Factor: | 1 |
| Frame: | R48Y | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 8.8/2.6 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| Number of Speeds: | 2-2-VT |
Technical Specifications
| Electrical Type: | Split Phase, Induction Run, Multi-Speed | Starting Method: | Across The Line |
| Poles: | 2/4 | Rotation: | Counterclockwise Pump End |
| Mounting: | Thru Bolt | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | 3/8 Threaded |
| Overall Length: | 12.08 in | Frame Length: | 7.25 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 2.36 in |
General Specifications
| UPC: | 786674014399 | Weight: | 23.00 LB |
| Packaged Length: | 16.00 IN | Packaged Width: | 9.50 IN |
| Packaged Height: | 9.50 IN | HTC: | 8501.40.4040 |
| Country of Origin: | Mexico |
