Century

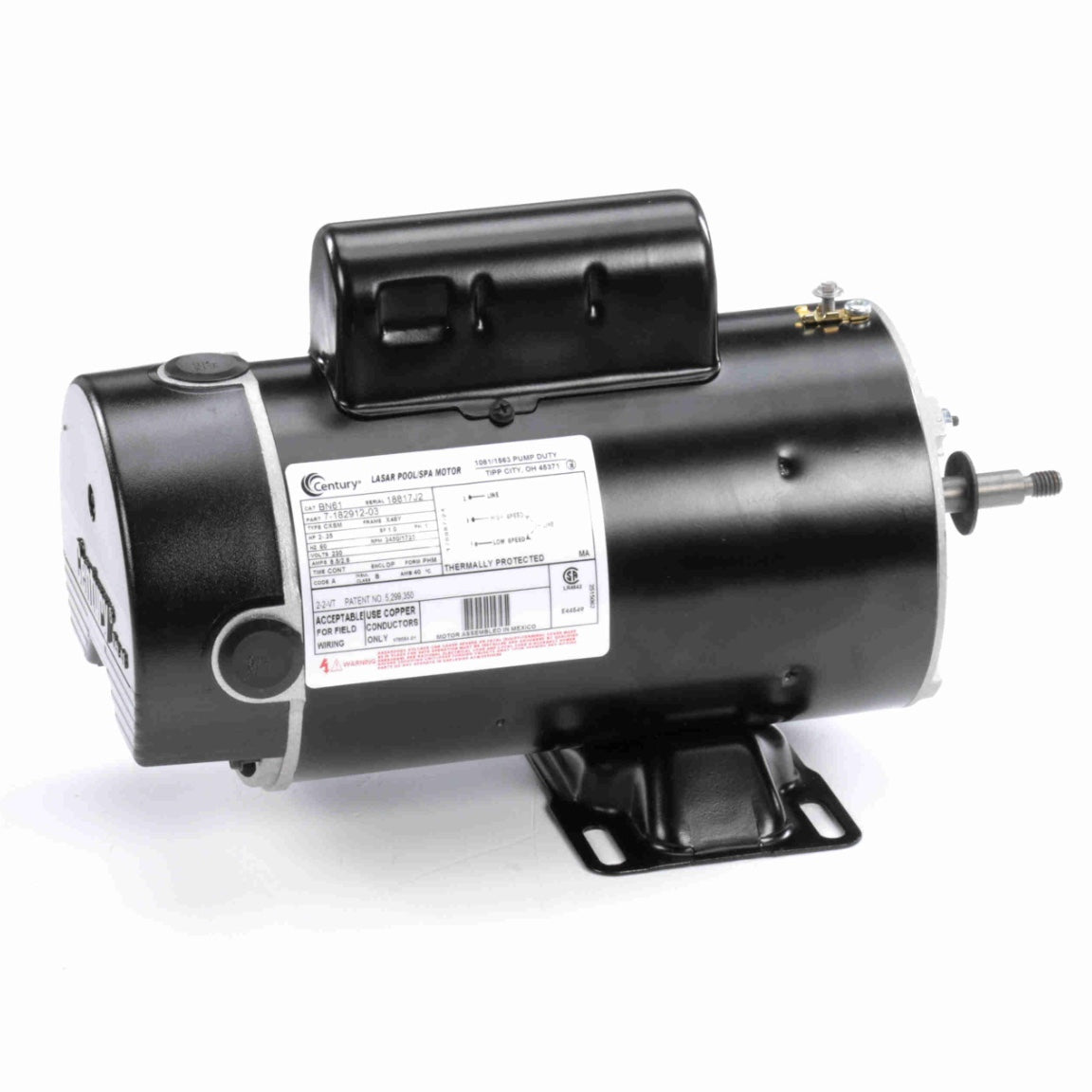

Century BN62 3-.38 HP Pool Pump Motor (Single Phase, 60 Hz, 230V, 3600 RPM, Y48Y, DP)**Clearance**
Century BN62 3-.38 HP Pool Pump Motor (Single Phase, 60 Hz, 230V, 3600 RPM, Y48Y, DP)**Clearance**
Regular price
$264.00 USD
Regular price
$717.00 USD
Sale price
$264.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:BN62
Couldn't load pickup availability
**2 in stock at Clearance Price**
Century Pool Pump Motor, 3-.38 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, Y48Y Frame, DP - BN62
- Two Speed
- 12 & 3 O'clock Conduit Entries
- 3-1/2" Shaft Height
- 50°C Ambient
- Four Thru Bolts on a 5.146 Bolt Circle
- Flex 48 LASAR XL for Extra Low Running Amps
- Threaded Shaft
- Rigid Base
- Energy Efficient
- Meets California Energy Commission Appliance Regulations 2008
Nameplate Specifications
| Phase: | 1 | Output HP: | 3-.38 Hp |
| Output KW: | 2.2 kW | Voltage: | 230 V |
| Speed: | 3450/1725 rpm | Service Factor: | 1 |
| Frame: | Y48Y | Enclosure: | Drip Proof |
| Thermal Protection: | Thermally Protected | Ambient Temperature: | 50 °C |
| Frequency: | 60 Hz | Current: | 12.0/3.5 A |
| Duty: | Continuous | Insulation Class: | F |
| UL: | Recognized | CSA: | Y |
| Number of Speeds: | 2-2-VT |
Technical Specifications
| Electrical Type: | Permanent Split Capacitor, High Speed; Capacitor Start, Low Speed | Starting Method: | Across The Line |
| Poles: | 2/4 | Rotation: | Counterclockwise Pump End |
| Mounting: | Thru Bolt | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | 3/8 Threaded |
| Overall Length: | 14.33 in | Frame Length: | 9.50 in |
| Shaft Diameter: | 0.500 in | Shaft Extension: | 2.36 in |
General Specifications
| UPC: | 786674014474 | Weight: | 32.00 LB |
| Packaged Length: | 16.00 IN | Packaged Width: | 9.50 IN |
| Packaged Height: | 11.00 IN | HTC: | 8501.40.6040 |
| Country of Origin: | Mexico |
