Century

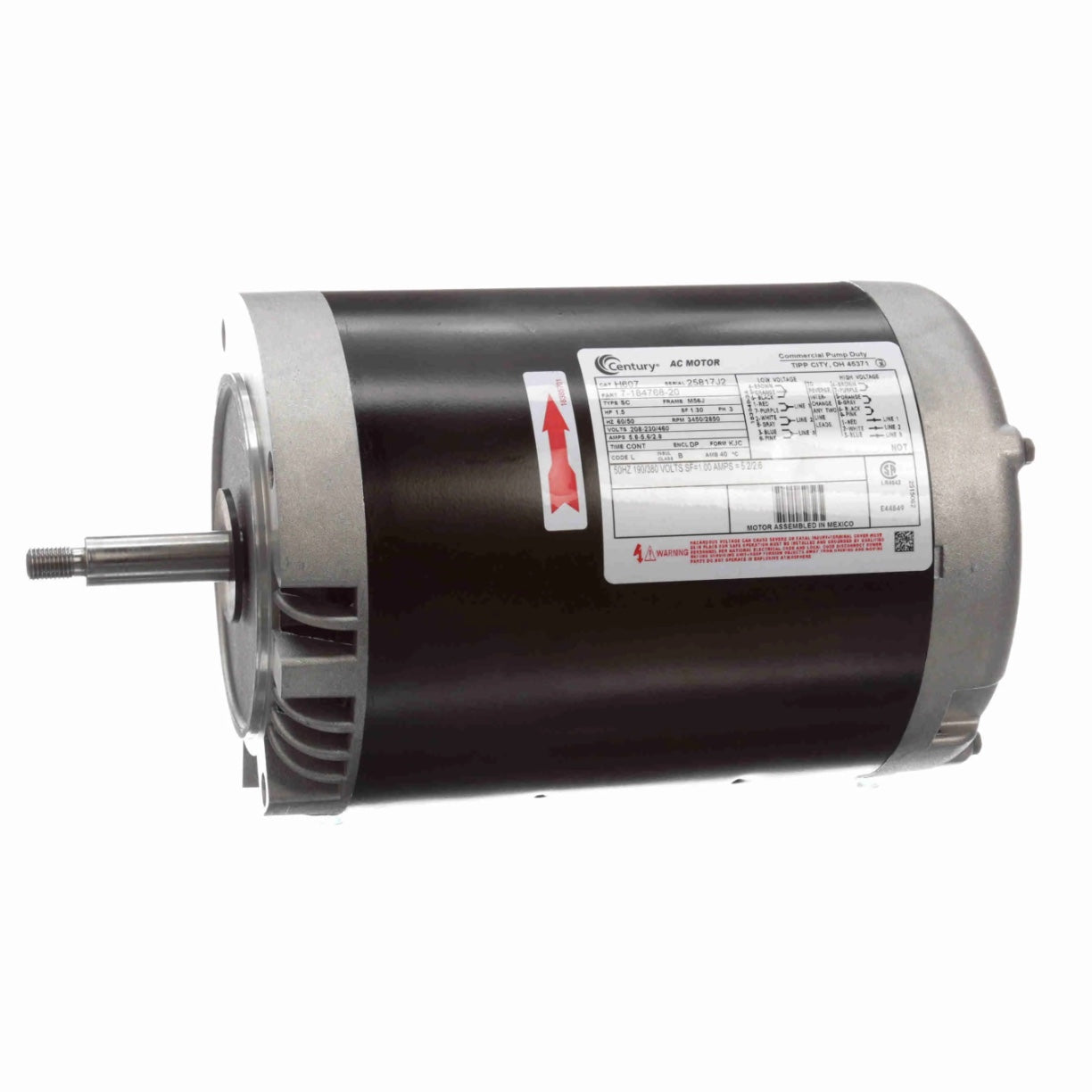

Century H607 1.5 HP General Purpose Pump Electric Motor (Three Phase, 60 Hz, 208-230/460V, 3600 RPM, M56J, DP)**Clearance**
Century H607 1.5 HP General Purpose Pump Electric Motor (Three Phase, 60 Hz, 208-230/460V, 3600 RPM, M56J, DP)**Clearance**
Regular price
$333.00 USD
Regular price
$894.00 USD
Sale price
$333.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:H607
Couldn't load pickup availability
**Brand New - Never Used. In Factory Packaging. 2 in stock at Clearance Price**
Century General Purpose Pump Motor, 1.5 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, M56J Frame, DP - H607
- Mechanically locked bearing on shaft end
- Double sealed ball bearings
- 303 stainless steel threaded shaft
Nameplate Specifications:
| Phase: | 3 | Output HP: | 1.5 Hp |
| Output KW: | 1.1 kW | Voltage: | 208-230/460 V |
| Speed: | 3450/2850 rpm | Service Factor: | 1.3 |
| Frame: | M56J | Enclosure: | Drip Proof |
| Thermal Protection: | No Protection | Ambient Temperature: | 40 °C |
| Frequency: | 60 Hz | Current: | 5.8-5.6/2.8 A |
| Duty: | Continuous | Insulation Class: | B |
| UL: | Recognized | CSA: | Y |
| CE: | N | Number of Speeds: | 1 |
Technical Specifications:
| Electrical Type: | Polyphase, Induction Type, Single Or Dual Voltage | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Reversible Clockwise |
| Mounting: | Round | Drive End Bearing: | Ball |
| Opp Drive End Bearing: | Ball | Frame Material: | Rolled Steel |
| Shaft Type: | Threaded | Overall Length: | 12.35 in |
| Frame Length: | 6.75 in | Shaft Diameter: | 0.625 in |
| Shaft Extension: | 2.60 in |
General Specifications:
| UPC: | 786674023803 | Weight: | 27.00 LB |
| Packaged Length: | 16.00 IN | Packaged Width: | 9.00 IN |
| Packaged Height: | 8.00 IN | HTC: | 8501.52.4000 |
| Country of Origin: | China |
