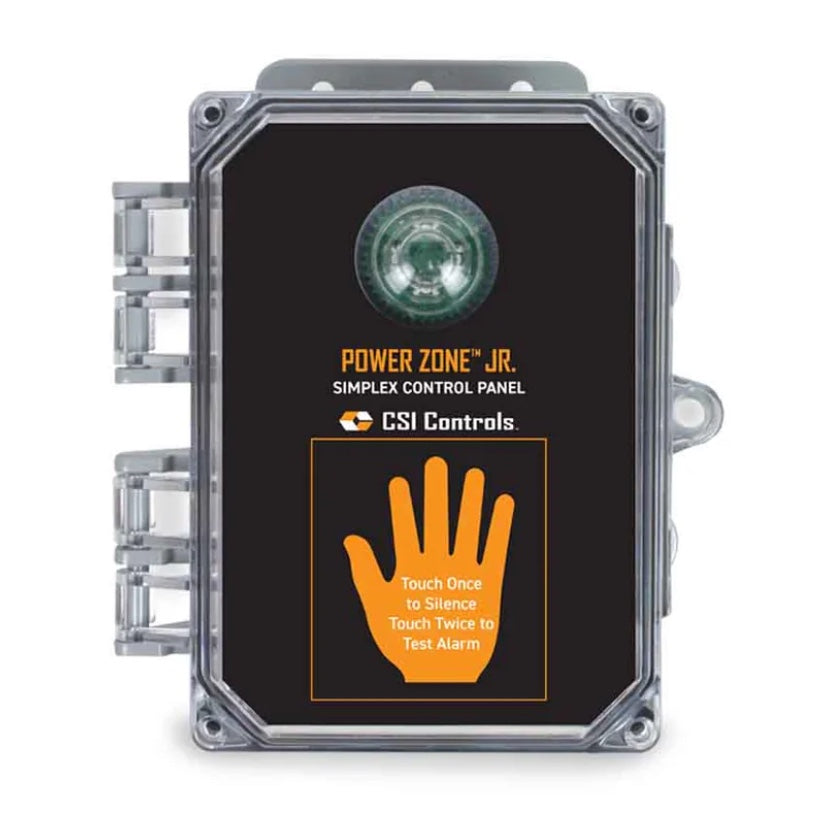

CSI Controls PZJRF230-F Simplex Control Panel with Float Switches (230V, Single Phase, 16 Amp, NEMA 4x)

CSI Controls PZJRF230-F Simplex Control Panel with Float Switches (230V, Single Phase, 16 Amp, NEMA 4x). The FC15 option is (2) 15 foot (4.6m) mechanical float switches (one pump switch and one control switch).

The Power Zone™ Jr. simplex panel is designed to control one 115 VAC, or 230 VAC single phase pump in water and sewage applications. The compact design features the zero cross over technology for extended relay life and touch sensor circuitry for the alarm test and silence.

Features:

• Zero cross over sensing for extended motor relay life
• Exterior Touch Sensor for alarm silence and test
• NEMA 4X rated enclosure for indoor or outdoor use with padlockable enclosure
• Provided with (4) 1/2 inch liquid tight connectors for floats, pump, and incoming power

Components:

• NEMA 4X enclosure rated for indoor or outdoor use
• Padlockable enclosure cover for added safety
• Power relay controls the pump motor load by switching the electrical lines
• Pump Manual Run button provides manual pump control
• Pump Call to Run green LED provides indication when the pump is called to run
• Red alarm beacon provides visual alert
• Alarm horn provides audible alarm alert
• Terminal strip for field wiring of incoming power, floats, and pump
