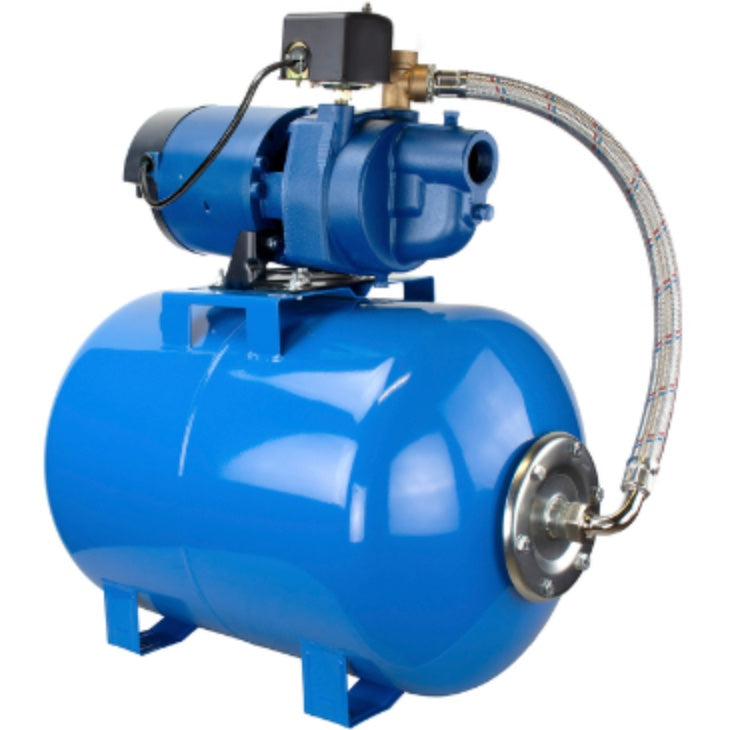

Flint & Walling EK07SAT44H EK Shallow Well Jet Pump Tank Mounted System (3/4 HP, Single Phase, 115/230V, 14 Gallon Tank)

The Flint & Walling EK07SAT44H EK Shallow Well Jet Pump Tank Mounted System is pre-configured to conserve space and lessen installation time. Each pump and tank combination is made in the USA with mostly USA made parts. It is tested before leaving the factory allowing installation with confidence. Designed and manufactured by Flint & Walling, a trusted name in the industry with over 100 years in the pump and motor business.

Complete system includes pump, ejector, motor, tank and pressure switch.

Upgrade your water supply system with the EK Shallow Well Jet Pump Tank Mounted System. This system features a heavy cast iron jet pump, complete with a shallow well ejector for optimal performance. The capacitor start, copper wound motor includes thermal overload protection, and its dual voltage is factory connected for convenience. Quick voltage changes are easily accomplished with spade connectors.

The system includes a Horizontal Air-E-Tainer® pre-charged pressure tank with plumbing fittings positioned between the pump and tank. The pressure switch is factory preset to 20-40 PSI, ensuring efficient operation. Backed by a 1-year limited warranty, the EK Shallow Well Jet Pump Tank Mounted System provides a reliable and durable solution for your water pumping needs.

Pump & Motor Specifications:

Pump Casing Material:  Cast Iron

Tank Capacity:  14 Gallons

Voltage:  115/230V

Motor:  3/4 HP, Single Phase

Approximate Dimensions:  24.5" L x 17.5" W x 33.5" H

Shipping Weight:  76 lbs - Requires LTL Shipping

Ports:  1-1/4" NPT Suction, 3/4" Discharge

RPM:  3450

60 Hz

Features:
