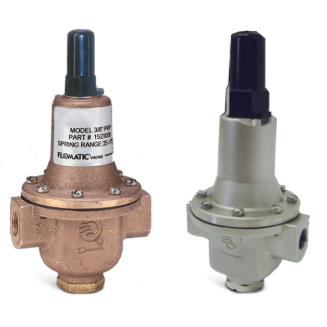

Flomatic 152100SC PRP Pressure Reducing Pilot – 2–35 PSI (316 Stainless Steel)

The Flomatic 152100SC PRP pressure reducing pilot is a direct-acting, spring-loaded diaphragm pilot control valve designed to automatically reduce higher inlet pressure to a lower, regulated outlet pressure. This pilot senses downstream pressure directly and operates hydraulically to maintain a preset pressure range.

Specifications:

Valve Type: Pressure reducing pilot

Size: ⅜"

Material: 316 stainless-steel

Spring Range: 2–35 PSI

Operation: Direct acting, spring-loaded diaphragm

Max Pressure: 400 PSI

Max Temperature: 180°F (80°C)

Weight: 2 lbs

Operation: The PRP pilot automatically modulates in response to downstream pressure changes, opening or closing to maintain the desired outlet pressure setting within the specified spring range.

Construction: Constructed of corrosion-resistant 316 stainless-steel with precision internal components, the PRP pilot is designed for reliable performance and long service life in demanding water system applications.

Applications: Used as a pilot control component on Flomatic automatic control valves for pressure reducing service in municipal, commercial, and industrial water systems.

Flomatic Quality: Flomatic pilot controls are engineered to meet demanding water system requirements and are built for dependable performance as part of complete automatic control valve assemblies.
