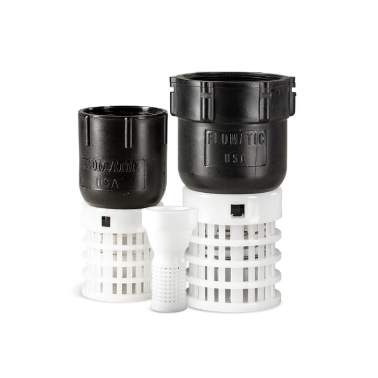

Flomatic 5725 190D 2" Plastic Foot Valve

The Flomatic 5725 2" 190D plastic foot valve features an acetal body and poppet, stainless-steel spring, EPDM seal, and polyethylene strainer. Designed to maintain prime, minimize backflow, and prevent debris entry into suction lines. Rated for a maximum working pressure of 150 psi and a maximum temperature of 140°F (60°C).

Specifications:

Max Pressure: 150 psi

Max Temperature: 140°F (60°C)

Body: Acetal

Poppet: Acetal

Seal: EPDM

Spring: Stainless steel

Strainer: Polyethylene

Connection: 2" Female NPT

Weight: 0.4 lbs

Case Quantity: 6

Operation: The spring-loaded poppet offers rapid closure to reduce reverse flow and loss of suction prime, while the polyethylene strainer prevents larger debris from entering the system.

Construction: The 190D series combines a durable acetal body and poppet with a polyethylene strainer and stainless-steel spring to handle larger suction line sizes. The thermoplastic construction helps resist corrosion while the open-area strainer design supports good flow with controlled head loss.

Applications: Agricultural, residential, and light commercial water systems using larger suction lines.
