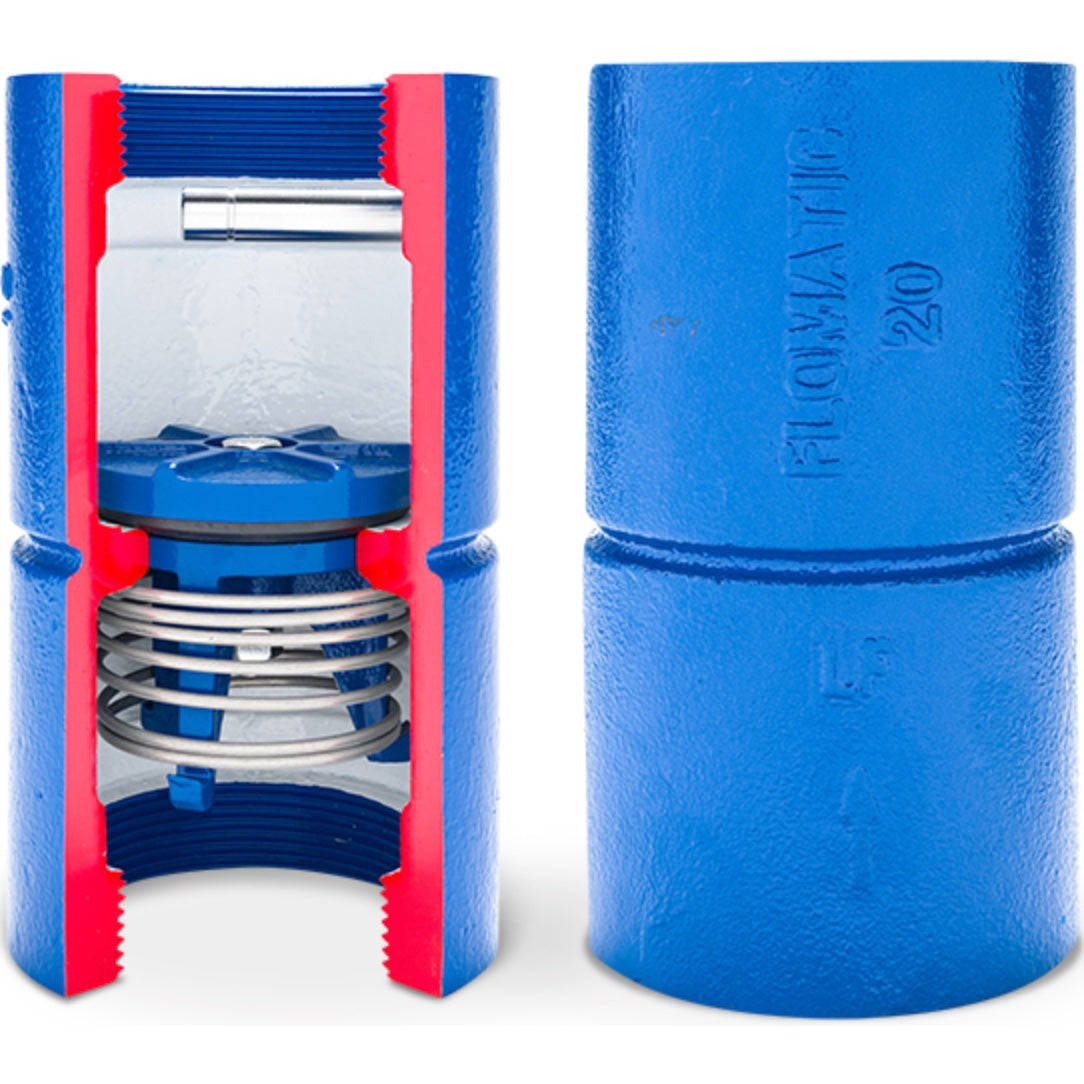

Flomatic 4032DI 1-1/4" 80DI - Ductile Iron Check Valve

Flomatic 4032DI 1-1/4" 80DI - Ductile Iron Check Valve

Regular price $33.66 USD
Regular price $67.31 USD Sale price $33.66 USD
Sale Sold out
Shipping calculated at checkout.

SKU:4032DI

The Flomatic 4032DI 1-1/4" 80DI - Ductile Iron Check Valve can handle pressures to 400 psi and temperatures up to 180°F (80°C).

80DI - High strength epoxy coated ductile iron body, disc and follower with threaded female connections. Features a Nitrile (Buna-N) seal, stainless steel spring fasteners, and ductile iron poppet. 2 ½" and larger are recommended for vertical applications. See 80DIX or VFD design for horizontal.

Note: 1" through 1 ½" features acetal poppet.

Specifications:

NSF/ANSI 61 and 372 Approved

Max Pressure:  400 psi

Body:  Ductile Iron

Inlet / Outlet:  1-1/4" FNPT

Weight:  1.3 lbs

Case Qty:  36

Manufacturer Information:

For over 50 years, Flomatic’s Ductile Iron Check Valves have been an industry-proven favorite. The Ductile Iron series (DI) is an industry proven heavy duty in-line poppet style valve designed to prevent flow reversal. When pumping from a well, water is allowed to flow through the valve and then closes automatically when the pump is shut off to prevent backflow. Flomatic’s DI series are among the most popular valves in the water well industry today. These valves are specifically designed for use with submersible pumps or other applications where it is necessary for the check valve to be installed in a well casing.

Operation: Flomatic Model 80DI series ductile iron check valves are designed to provide years of trouble free operation without maintenance when properly sized and installed in an appropriately selected pumping application, in regards to flow and maximum system pressures.

Construction: The Flomatic check valve body is constructed to handle the rated system flow and pressures as stated, and to support the combined weight of the submersible pump, pipe, and the water in the riser pipe. In addition, the valves are uniquely designed to mitigate some of the hydraulic water shocks associated with well water pumping when the following check valve installation instructions are adhered to.

Features & Benefits:

  • NSF/ANSI 61 approved
  • Low head loss
  • Reduces hydraulic shock
  • Prevents water flow reversal
  • Corrosion resistant internals
  • Custom-molded Nitrile (Buna-N) seal

Applications:

  • Domestic well water systems
  • Municipal/public water systems
  • Irrigation and sprinkler systems
  • Booster pump systems
