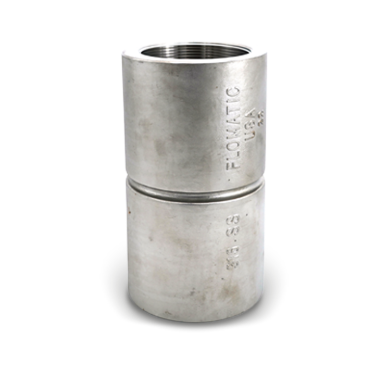

Flomatic 4034S6 2" 80S6 - Stainless Steel Check Valve

The Flomatic 4034S6 2" 80S6 – All 316 stainless-steel threaded female x female Check Valve is rated for a maximum working pressure of 450 psi. MAX TEMP: 400°F (200°C).

The Flomatic 4034S6 2" 80S6 is a premium all stainless-steel spring check valve designed for water and industrial applications. This model features high corrosion resistance, lead-free construction, and reliable performance under demanding conditions.

80S6 series – All 316 stainless steel female threaded check valve body. Features a stainless-steel spring, poppet and a Viton seal (Buna-N optional).

Specifications:

NSF/ANSI 61 and 372 approved

Max Pressure: 450 psi

Max Temperature: 400°F (200°C)

Body: 316 Stainless Steel

Inlet / Outlet: 2" FNPT x 2" FNPT

Weight: 4 lbs

Operation: Flomatic Model 80S6 stainless steel check valves are designed to provide years of trouble-free service when properly sized and installed in a suitable pumping application.

Construction: The Flomatic check valve body is engineered to handle the rated system pressures and flows, while providing dependable backflow prevention in water distribution and pumping systems.

Proud to manufacture high-quality valves built to last since 1933, Flomatic® Valves is an American valve manufacturer certified under ISO 9001 and ISO 14001 quality and environmental management systems.

Features & Benefits:

• NSF/ANSI 61 approved
• Low head loss
• Corrosion resistant internals
• Viton seal (Buna-N optional)
• 316 stainless-steel construction

Applications:

• Well water pump systems
• Water distribution systems
• Irrigation systems
• Submersible applications
• Sprinkler systems
