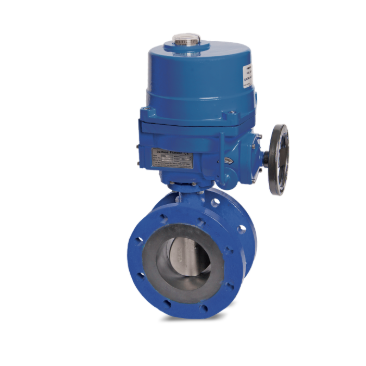

Flomatic 45000006A Azure® Model 45 3" Electric Actuated Butterfly Valve

The Flomatic 45000006A Azure® Model 45 3" electric-actuated butterfly valve is designed for dependable flow control in water and wastewater systems. This valve features a ductile iron flanged body and is equipped with a 120VAC on/off electric actuator with a manual hand-wheel override for open/close service.

Specifications:

Standard: AWWA C504

Class: 150B

Body: Ductile iron, flanged

Disc: ASTM A536 ductile iron with stainless-steel Type 316 edge

Seat: NBR (EPDM optional)

Operation: Electric actuated, 120VAC on/off with manual hand-wheel override

Max Pressure: 200 PSI

Max Temperature: 180°F (80°C)

Weight: 78 lbs

Operation: The electric actuator provides automated on/off valve control for remote or integrated system operation. The manual hand-wheel override allows valve operation during power loss or maintenance conditions.

Construction: The ductile iron body provides strength and corrosion resistance. The stainless-steel disc edge enhances wear resistance and sealing performance, while the resilient NBR seat supports dependable shutoff.

Applications: Municipal water distribution, wastewater treatment, industrial process piping, pump stations, and automated control systems requiring electrically actuated butterfly valves.

Flomatic Quality: Flomatic Azure® butterfly valves are engineered to meet industry standards and deliver consistent performance using proven materials and manufacturing processes for water system applications worldwide.

* Actuator sizing assumes 50 PSI max differential pressure.
