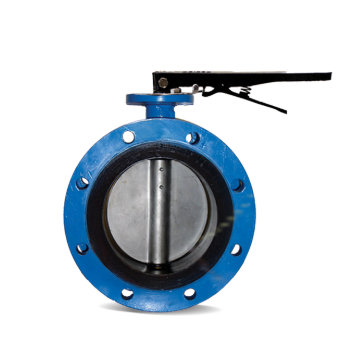

Flomatic 450000091 Azure® Model 45 6" Lever Operated Butterfly Valve

The Flomatic 450000091 Azure® Model 45 6" lever-operated butterfly valve is designed for dependable flow control in water and wastewater systems. This valve is manufactured to AWWA C504 standards and features a ductile iron flanged body with a bonded resilient seat for reliable sealing.

Specifications:

Standard: AWWA C504

Class: 150B

Body: Ductile iron, flanged

Disc: ASTM A536 ductile iron with stainless-steel Type 316 edge

Seat: Bonded NBR (EPDM optional)

Operation: Lever operated

Max Pressure: 200 PSI

Max Temperature: 180°F (80°C)

Weight: 65 lbs

Operation: The manual lever operator provides quick, positive valve positioning for smaller valve sizes. Lever operation allows simple on/off or throttling service where powered actuation is not required.

Construction: The ductile iron body provides structural strength and corrosion resistance. The stainless-steel disc edge enhances wear resistance and sealing performance, while the bonded resilient seat supports dependable shutoff.

Applications: Municipal water distribution, wastewater treatment, industrial process piping, pump stations, and infrastructure applications requiring compact, manually operated butterfly valves.

Flomatic Quality: Flomatic Azure® butterfly valves are engineered to meet industry standards and deliver consistent performance using proven materials and manufacturing processes for water system applications worldwide.
