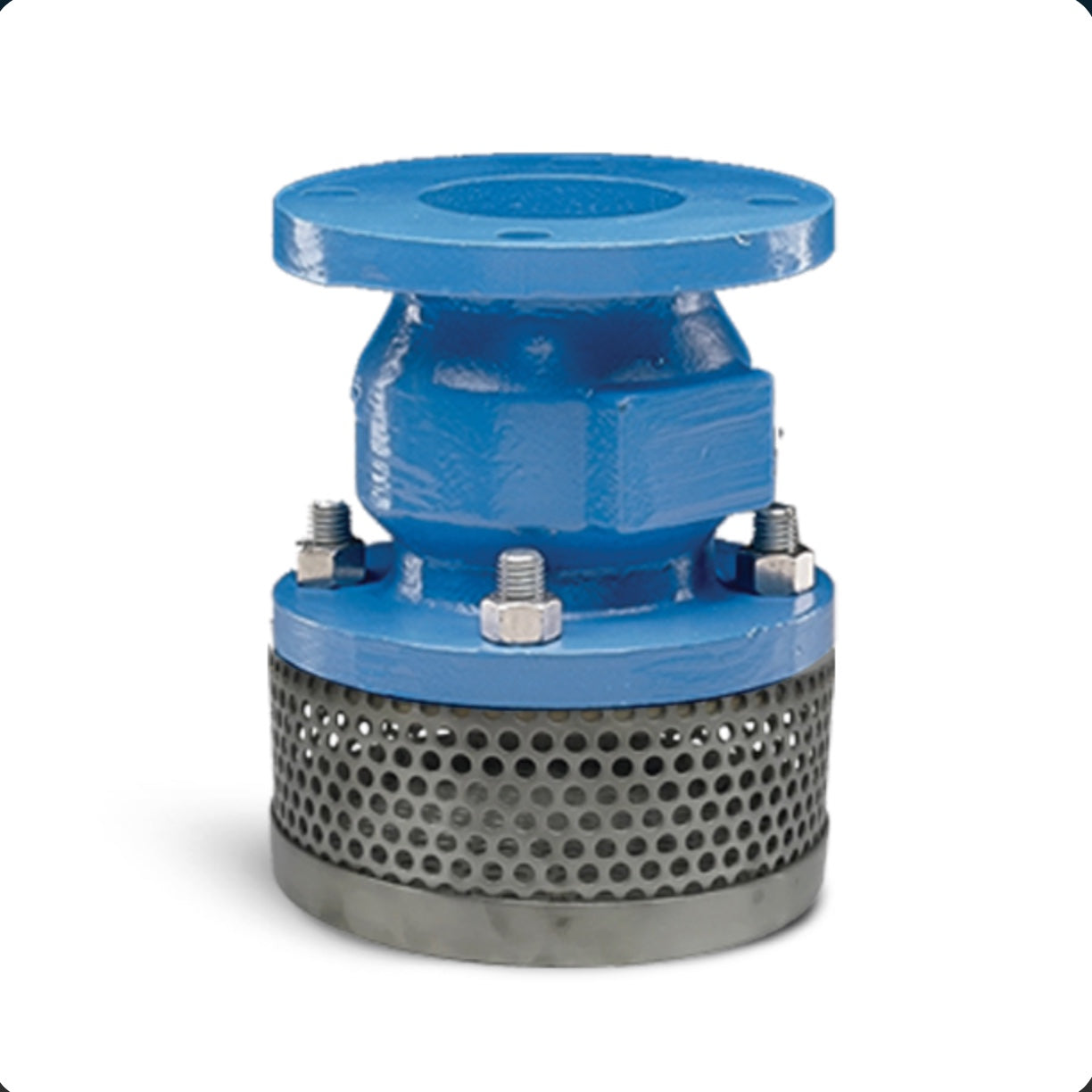

Flomatic 4768BT 2-1/2" Ductile Iron Foot Valve 302BT Series
Flomatic 4768BT 2-1/2" Ductile Iron Foot Valve 302BT Series
SKU:4768BT
Couldn't load pickup availability
Flomatic 4768BT 2-1/2" Ductile Iron Foot Valve 302BT Series is epoxy coated for extended life. The globe style body design is made for class 150 flanges. Designed specifically for municipal and industrial pumping applications where a heavy duty, extremely reliable valve may be required. This top quality foot valve offers field replaceable vulcanized rubber seat ring and has extremely low head loss. The foot valve has flanged connection ANSI 125.
Flomatic Description:
Epoxy coated ductile iron, foot valve with a globe style body design for use with class 150 flanges. Unleaded bronze trim with an EPDM seal and 316 stainless steel strainer for 2" - 12" sizes. Stainless Steel trim standard on 16", 20", 24" sizes (ST Models). Stainless trim available on other sizes.
302BT Series Features & Specifications:
- Size Range: 2 - 24 inch (50 mm - 600 mm)
- Max Temperature: 180°F (82°C)
- Max Pressure: 180 PSI 2"-12" / 150 PSI 14"-24"
Ductile Iron 2" - 12" - Max Pressure 300 PSI at 150°F
Ductile Iron 14", 16", 20", 24" - Max Pressure 250 PSI at 150°F
Cast Iron 18" - Max Press: 150 PSI at 150°F
