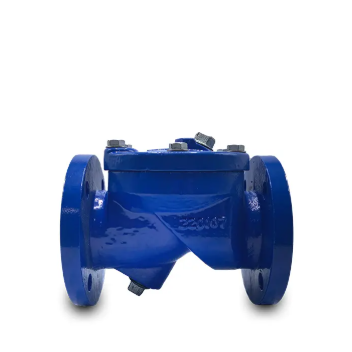

Flomatic 2380 745 2" Flo-Flex® Swing Check Valve

The Flomatic 2380 2" Model 745 Flo-Flex® swing check valve is a flanged, 45° seat check valve designed for dependable backflow prevention and controlled closure in municipal, industrial, and utility pumping applications. This valve features an epoxy-coated ductile iron body, a Buna-N coated Flo-Flex® disc, and corrosion-resistant internal components. It is rated for a maximum working pressure of 250 PSI and a maximum temperature of 140°F (60°C).

Specifications:

Standard: AWWA C508

Body: Epoxy-coated ductile iron

Disc: Flo-Flex® 45° seat, Buna-N coated

Max Pressure: 250 PSI

Max Temperature: 140°F (60°C)

Flange Rating: ASME Class 150

Connection: 2" Flanged, ASME 150#

Weight: 19 lbs

Operation: The 45° Flo-Flex® seat design allows for stable, controlled closure as flow decelerates, helping to reduce slam and water hammer during pump shutdown. The disc opens fully under forward flow and closes smoothly as flow reverses to protect pumps and piping.

Construction: The epoxy-coated ductile iron body provides strength and corrosion resistance for long service life in demanding water system environments. The resilient Buna-N coated Flo-Flex® disc provides reliable sealing while accommodating debris commonly found in raw water and wastewater applications.

Applications: Municipal water and wastewater systems, pump stations, raw water intakes, irrigation systems, and general utility pumping applications requiring a robust Class 150 flanged swing check valve.

Flomatic Quality: Flomatic swing check valves are engineered and manufactured to deliver dependable performance, durability, and long service life in critical pumping applications.
