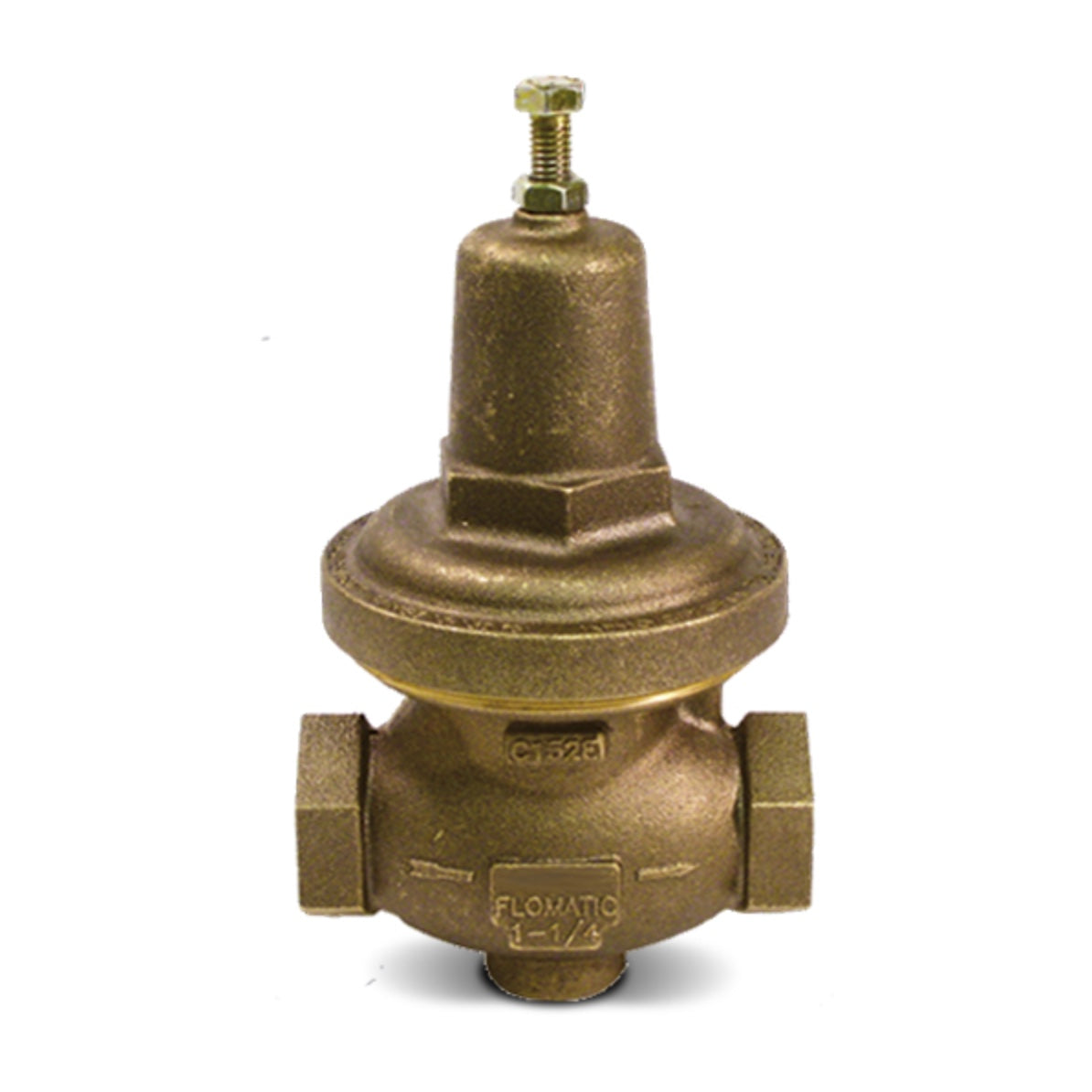

Flomatic C150102EHF Pressure Reducing Valve (1-1/4", 15-150 PSI)
Flomatic C150102EHF Pressure Reducing Valve (1-1/4", 15-150 PSI)
Regular price
$896.50 USD
Regular price
$1,793.00 USD
Sale price
$896.50 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:C150102EHF
Couldn't load pickup availability
Use this Flomatic C150102EHF Pressure Reducing Valve to regulate the inlet pressure of your water for flow rates up to 70 gpm. Tested before leaving the factory to ensure your confidence upon installation.
Specifications:
- Size: 1-1/4 inch Female NPT
- Maximum Operating Temperature: 180°F (80°C)
- Maximum Operating Pressure: 400 PSI
- Pressure Range: 15-150 PSI
- Factory Set at 50 PSI
- Weight: 13 lbs
Pressure Reducing Valve (PRV) - Model C150EHF when properly installed will regulate high inlet pressure to a lower regulated outlet pressure within a range regardless of water flow. This is accomplished by an adjustable spring loaded balancing valve factory set to automatically regulate the downstream pressure. Supplied with one FNPT tail-piece and union nut.
NSF/ANSI 61 Certified and ASSE® Listed 1003.
