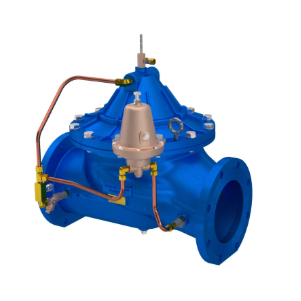

Flomatic C201/CA201 2-1/2" Threaded Modulating Altitude Valve C201-2P5-THD

The Flomatic C201-2P5-THD C201/CA201 modulating altitude valve is a pilot-operated automatic control valve designed for single acting level control with modulation for final filling of storage tanks. This configuration is threaded (NPT).

Specifications:

Valve Type: Modulating altitude valve (single acting, 1-way flow)

Body Style: Full port globe style (Model C) / angle body style (Model CA)

Connection: Threaded (NPT)

Size: 2-1/2"

Service: Level control with modulation for final tank filling

Body & Cover: Ductile iron (cast construction)

Trim: Stainless-steel standard

Elastomers: EPDM (NSF/ANSI 61)

Coating: NSF 61 approved fusion epoxy

Weight: 57 lbs

Operation: The C201/CA201 modulating altitude valve controls tank level by opening and closing based on level control pilot settings. Modulation helps provide controlled final filling.

Construction: The valve body and cover are ductile iron with corrosion-resistant fusion epoxy coating. Stainless-steel trim and pilot components support durability and long-term service.

Applications: Storage tank level control, municipal water distribution, commercial and industrial water systems requiring altitude control and controlled final fill.

Flomatic Quality: Flomatic products are engineered to meet demanding water system requirements and are built for dependable performance. Flomatic pilot operated control valves are built to order and configured to meet application requirements.
