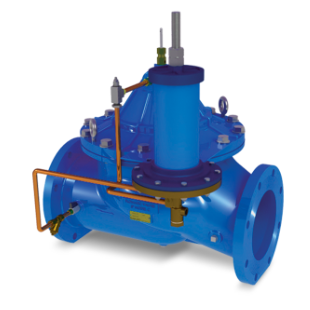

Flomatic C205/CA205 2-1/2" Threaded Non-Modulating Altitude Valve C205-2P5-THD

The Flomatic C205-2P5-THD C205/CA205 non-modulating altitude valve is a pilot-operated automatic control valve designed for single acting level control of storage tanks, reservoirs, and basins. This configuration is threaded (NPT).

Specifications:

Valve Type: Non-modulating altitude valve (single acting, 1-way flow)

Body Style: Full port globe style (Model C) / angle body style (Model CA)

Connection: Threaded (NPT)

Size: 2-1/2"

Service: Level control of storage tanks, reservoirs, and basins

Body & Cover: Ductile iron (cast construction)

Trim: Stainless-steel standard

Elastomers: EPDM (NSF/ANSI 61)

Coating: NSF 61 approved fusion epoxy

Weight: 57 lbs

Operation: The C205/CA205 altitude valve opens and closes based on level control pilot settings to maintain the desired tank level. Non-modulating operation provides on/off control based on the pilot set points.

Construction: The valve body and cover are ductile iron with corrosion-resistant fusion epoxy coating. Stainless-steel trim and pilot components support durability and long-term service.

Applications: Storage tank level control, municipal water distribution, commercial and industrial water systems requiring altitude control.

Flomatic Quality: Flomatic products are engineered to meet demanding water system requirements and are built for dependable performance. Flomatic pilot operated control valves are built to order and configured to meet application requirements.
