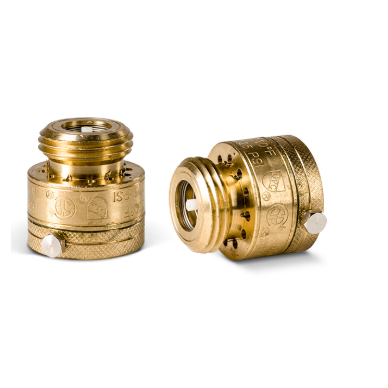

Flomatic Glen-Flo® GF800E GFHB8 3/4" Hose Connection Vacuum Breaker (ASSE 1011)

The Flomatic Glen-Flo® GF800E GFHB8 3/4" hose connection vacuum breaker is designed to prevent back-siphonage of polluted water into potable water systems. This vandal-resistant device is intended for installation on hose connections such as hose bibbs, service sinks, and laundry tubs.

Specifications:

Max Pressure: 125 psi

Max Temperature: 180°F (80°C)

Standard: ASSE 1011

Certification: IAPMO, CSA

Body: Muntz C280 brass

Elastomers: Buna-N (FDA approved)

Internals: Stainless steel and Muntz C280

Polymers: Acetal (NSF listed)

Connection: 3/4" Hose thread (ANSI B1.20.7)

Weight: 0.45 lbs

Operation: Under normal flow conditions, the vacuum breaker allows water to pass freely. If a back-siphonage condition occurs, the internal air inlet opens to break the vacuum and prevent contaminated water from being drawn back into the potable water supply.

Construction: Constructed with a durable brass body and corrosion-resistant internal components. A break-away set screw provides tamper-resistant protection once installed.

Applications: Hose bibbs, service sinks, laundry tubs, and similar hose-connected fixtures where protection against back-siphonage is required.
