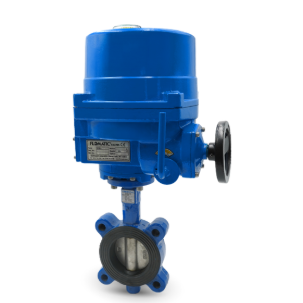

Flomatic S3L07A SYLAX® 3 Lug 4" Electric Actuated Butterfly Valve

The Flomatic S3L07A SYLAX® 3 lug butterfly valve with electric actuation is designed for dependable automated flow control in water and wastewater systems. This valve features a strong ductile iron body with an EPDM seat and a stainless-steel stem and disc for corrosion resistance and long service life.

Specifications:

Type: Lug butterfly valve

Body: Ductile iron

Stem: Stainless-steel

Disc: Stainless-steel

Seat: EPDM

Pressure Rating: 250 PSI, bi-directional

Max Temperature: 230°F (110°C)

Certification: NSF/ANSI 61

Flange Compatibility: ANSI 125/150#

Operator: 120VAC on/off electric actuator

Mounting: ISO 5211 top flange

Weight: 46.0 lbs

Operation: The electric actuator provides reliable on/off valve control and supports integration with automated control systems.

Construction: The ductile iron body provides strength and durability, while the stainless-steel stem and disc support corrosion resistance. The EPDM seat ensures dependable shutoff across the operating range.

Applications: Municipal water distribution, wastewater treatment, industrial piping, HVAC, and infrastructure applications requiring electrically actuated lug-style butterfly valves.

Flomatic Quality: Flomatic SYLAX® butterfly valves are engineered for reliability and performance using proven materials and designs for water system applications worldwide.

* Actuator sizing assumes maximum differential pressure of 50 PSI.
