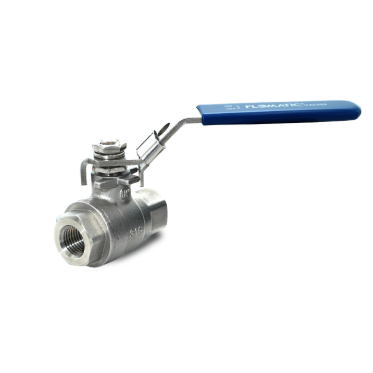

Flomatic SSBV1000-30 316 Stainless-Steel Ball Valve 3"

The Flomatic SSBV1000-30 316 stainless-steel ball valve is a full port valve designed for high-pressure service in industrial and commercial piping applications. This valve features FNPT threaded connections and a drilled and tapped mounting pad for actuator or accessory attachment.

Specifications:

Valve Type: Ball valve

Body Material: 316 stainless-steel

Port: Full port

Connection: FNPT threaded

Mounting: Drilled and tapped two-bolt mounting pad

Handle: Locking stainless-steel handle

Max Pressure: 1000 PSI

Max Temperature: 400°F

Size: 3"

Weight: 23.0 lbs

Operation: Quarter-turn operation allows quick open and close service with minimal pressure drop due to the full port design.

Construction: Constructed entirely of 316 stainless-steel, this valve provides excellent corrosion resistance and durability in demanding environments. The locking handle supports safe operation and helps prevent accidental actuation.

Applications: Industrial process piping, chemical service, water and wastewater systems, compressed air, and high-pressure applications requiring corrosion-resistant materials.

Flomatic Quality: Flomatic stainless-steel ball valves are engineered for reliability and long service life using high-quality materials and precision manufacturing.
