Franklin Electric 2360809566E - 6" Encapsulated MagForce™ High Efficiency Motor - Sand Fighter Type (7.5-15 HP, Three Phase, 460V, 120Hz, 3-Wire)
Franklin Electric 2360809566E - 6" Encapsulated MagForce™ High Efficiency Motor - Sand Fighter Type (7.5-15 HP, Three Phase, 460V, 120Hz, 3-Wire)
SKU:2360809566E
Couldn't load pickup availability
The Franklin Electric 2360809566E - 6" Encapsulated MagForce™ High Efficiency Motor - Sand Fighter Type - is powered with permanent magnet technology. Equipped with a 7.5-15 HP three phase motor, super stainless steel construction and Kingsbury-type thrust bearing this motor was designed to ensure your water continues to flow. Manufactured by Franklin Electric for quality and reliability when consistent performance is required. Please contact a member of Dade Pump's sales or service team for assistance in selecting the correct pump for your needs!

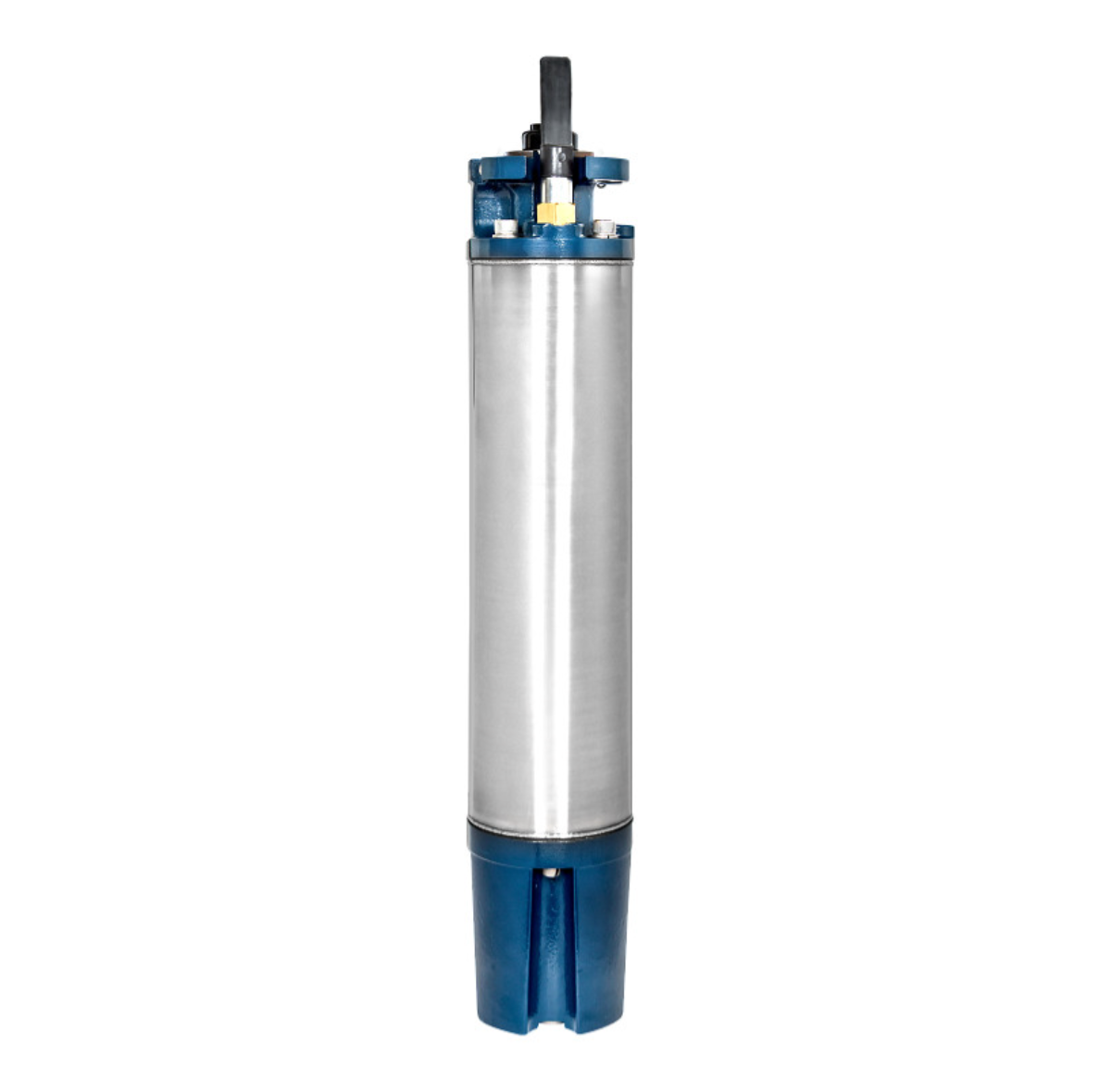

** Please Note: Image is a stock photo and may not match exactly **
Product Specifications:
HP: 7.5-15
Phase: Three
Voltage: 460
Hz: 120
Wire: 3-Wire
Motor Length: 24.98"
Weight: 99 lbs
Lead: Yes - 13'
Manufacturer Description:
Franklin Electric 6-Inch MagForce High Efficiency Motors are the next generation of submersibles powered by permanent magnet technology. Leveraging the unwavering reliability of Franklin Electric's submersible motor design, MagForce High Efficiency Motors offer improved performance over standard induction motors while also providing the features, benefits and robustness you trust for servicing water well applications.
Features and Benefits
- GROUNDBREAKING EFFICIENCY: Powered by MagForce High Efficiency Motor with up to 92% efficiency rating that is 8-12 points (15%) greater than standard induction motor construction. Typical duty rate systems can have a payback of 1 to 2 years.
- SLASH ELECTRICITY CONSUMPTION: Up to 14% energy savings compared to traditional induction motors.
- SIMPLIFIED INVENTORY MANAGEMENT: Available motor options cover a wide range of pump horsepower needs (up to 60 hp) with fewer SKUs to manage.
- SMALLER FOOTPRINT: Lighter and easier to handle than standard induction motors.
- INTUITIVE STARTUP: When optimized and paired with a Franklin Electric variable frequency drive, expect easy startups and reliable protection for any project.
- BUILT TOGETHER TO WORK TOGETHER: Rely on components from a single trusted source for the ultimate in operational compatibility and optimized operation.
- FULLY SUPPORTED: Comes fully supported by the industry’s leading Technical Support professionals and Field Service Engineers.
- Field trial data
Applications - Ideal for Long Run:
- Groundwater remediation
- Drainage water level control
- Municipal/Utility water supply
- Construction site dewatering
- High volume and industrial livestock operations
- Mine site dewatering and tank level control
- Well supply geothermal HVAC systems
Basic Features:
- High efficiency electrical desgin for low operational costs
- Corrosion-resistant all stainless steel exterior construction
- Stainless steel splined shaft
- Hermetically-sealed windings
- Anti-track self-healing resin system
- Water lubrication
- Filter check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm
- Built-in lightning arrestors
- Continuous rating in 86° F (30 °C) water
- Removable "Water-Bloc" lead
- UL 778 recognized
- CSA certified
- ANSI/NSF 61 certified
- NEMA mounting dimensions
Ratings |
|
| HP 120Hz | 7.5-15 hp |
| Frequency | 120 Hz |
| Phases | Three-Phase |
| Amps - Full Load | 17.2 A |
| Amps - Service Factor | 20.5 A |
| Volts | 460 VAC |
| Voltage Tolerance (%) | -10.0% / +10.0% |
| Wire | 3-Wire |
| Thrust Bearing Rating | 3500 lb |
| Lead Length | 13 ft |
| Motor | Encapsulated |
| Continuous Duty | Yes |
| Efficiency Service Factor Load [%] | 92.00 % |
| Protection [IP] | IP68 |
| Lead Wire Size | AWG #10 |
| Lead Retainer Method | Lead Jam Nut |
| Motor Insulation Classification | F |
| Poles | 4 |
| Service Factor - 120Hz | 1.15 |
| VFD Required | YES |
Operation |
|
| Motor NEMA Frame Type | 6" |
| Motor Cooling | Water |
| Minimum Cooling Flow | .50 ft/sec |
| Motor Ambient Temperature Rating Nominal | 86 °F |
| Thrust Bearing Rating | 3500 lb |
| Motor Adapter | Double flange |
| Rotation | Counter clockwise facing the shaft |
| SubTrol Heat Sensor | No |
| Winding Resistance (Main Winding) | 0.86 |
| Maximum Starts in a 1 Hour Period | 20 |
| Maximum Immersion Depth | 1148.29 ft |
Materials of Construction |
|
| Motor Shaft End - Material | Stainless Steel 1.4462 |
| Thrust Bearing | Kingsbury Type |
| Seal | Mechanical Seal |
| Lead Insulation Material | EPR |
| Diaphragm Material | Ethylene-Propylene-Diene (EPDM) |
| Motor Bottom End Bell Material | Cast Iron with E-Coat Paint |
| Motor Fill Solution (Water Soluble / Non Toxic) | Yes |
| Motor Fill Solution | FES91 |
| Motor Top End Bell Material | Cast Iron with E-Coat Paint |
| Shaft Slinger Material | Nitrile Rubber (NBR) |
| Stator Ends Material | Carbon Steel |
| Stator Fill | Resin |
| Stator/ Motor Shell Material | 304 SS |
| Winding Material | Copper |
Dimensions |
|
| Motor Diameter - Physical Diameter | 5.44" |
| Motor Length | 24.98 " |
| Product Weight | 95 lb |
| Product Weight with Pack | 99 lb |
| Carton Length | 42.13 " |
| Carton Width | 6.1 " |
| Carton Height | 8.35 " |
| Shaft Diameter | 1 " |
| Shaft End | Spline |
Other |
|
| Minimum Order Quantity | 1 |
| Drinking Water Agency Approvals | ANSI/NSF Standard 61 |
| Electrical Agency Approvals | UL |
| Warranty Standard Time | 12 Month Install / 24 Month Manufacturing |
| Repair Kit Available | Yes |
