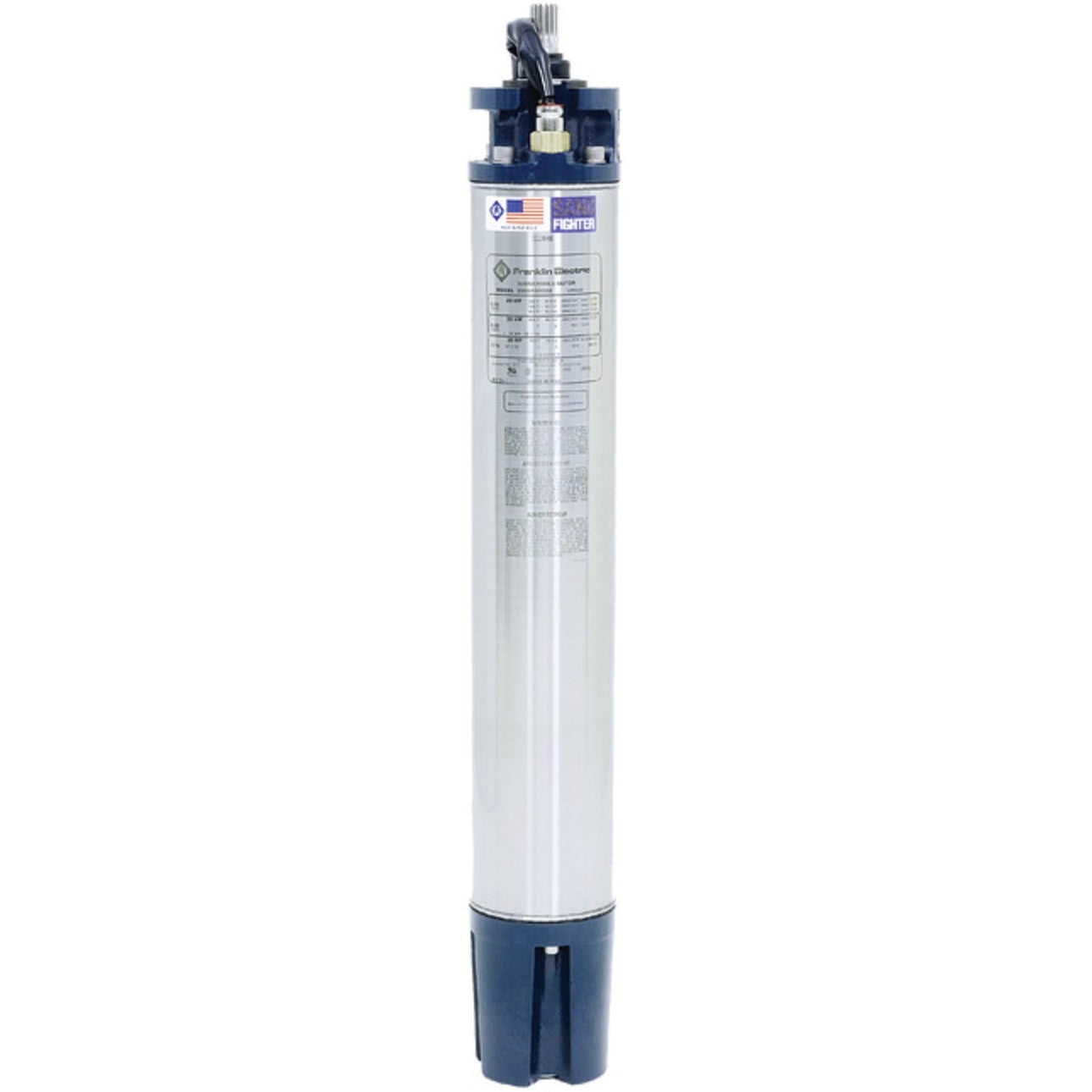

Franklin Electric 2366028120 - 6C3F 6" Encapsulated Submersible Motor - Sand Fighter (10 HP, Three Phase, 230V, 6, W)
Franklin Electric 2366028120 - 6C3F 6" Encapsulated Submersible Motor - Sand Fighter (10 HP, Three Phase, 230V, 6, W)
SKU:2366028120
Couldn't load pickup availability
The Franklin Electric 2366028120 - 6C3F 6" Encapsulated Submersible Motor - Sand Fighter Type. Franklin's 6" submersible motors are used in wells demanding high flow rates or deeper installation. Designed and manufactured by Franklin Electric for quality and reliability when high flow or pressure is needed. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Motor Shell Material: 300 Series SS
Voltage: 230V
Motor: 10 HP, Three Phase
Franklin's 6-inch submersible motors are typically used in large demanding water wells requiring high flow rates or deeper installations. These motors are tough, built to last, and come in a variety of construction options. These motors provide large amounts of water for irrigation, community water systems, and factories where large flows or pressures are required. We understand how important it is to produce reliable systems to avoid significant costs due to failure or downtime.
| HP | 10 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Amps - Full Load | 28.4 A |
| Amps - Service Factor | 32.2 A |
| Volts | 230 VAC |
| Voltage Tolerance (%) | -10.0% / +10.0% |
| Wire | 3-Wire |
| Motor Connection | DOL |
| Thrust Bearing Rating | 3500 lb |
| Lead Length | 13 ft |
| Motor | Encapsulated |
| Continuous Duty | Yes |
| Efficiency Service Factor Load [%] | 79.00 % |
| Protection [IP] | IP68 |
| Lead Wire Size | AWG #10 |
| Lead Retainer Method | Lead Jam Nut |
| Motor Insulation Classification | F |
| Poles | 2 |
| S.F. | 1.15 |
| Motor Cooling | Water |
| Minimum Cooling Flow | .50 ft/sec |
| Motor Ambient Temperature Rating Nominal | 86 °F |
| Thrust Bearing Rating | 3500 lb |
| Motor Adapter | Double flange |
| Rotation | Counter clockwise facing the shaft |
| SubTrol Heat Sensor | No |
| Winding Resistance (Main Winding) | .47-.57 |
Materials of Construction |
|
| Motor Shaft End - Material | 304SS |
| Thrust Bearing | Kingsbury Type |
| Seal Material | Silicon Carbide / Silicon Carbide |
| Seal | Mechanical Seal |
| Lead Insulation Material | Overmolded |
| Diaphragm Material | Nitrile Rubber (NBR) |
| Motor Bottom End Bell Material | Cast Iron with E-Coat Paint |
| Motor Fill Solution (Water Soluble / Non Toxic) | Yes |
| Motor Fill Solution | FES91 |
| Motor Top End Bell Material | Cast Iron with E-Coat Paint |
| Shaft Slinger Material | Nitrile Rubber (NBR) |
| Stator Ends Material | Carbon Steel |
| Stator Fill | Resin |
| Stator/ Motor Shell Material | 300 Series SS |
| Winding Material | Copper |
Dimensions |
|
| Motor Diameter - Physical Diameter | 5.44" |
| Motor Length | 28.2 " |
| Product Weight | 108 lb |
| Product Weight with Pack | 118 lb |
| Carton Length | 34.5 " |
| Carton Width | 7.25 " |
| Carton Height | 10.5 " |
| Shaft Diameter | 1 " |
| Shaft End | Spline |
Other |
|
| Drinking Water Agency Approvals | ANSI/NSF Standard 61 |
| Electrical Agency Approvals | UL |
| Repair Kit Available | Yes |
