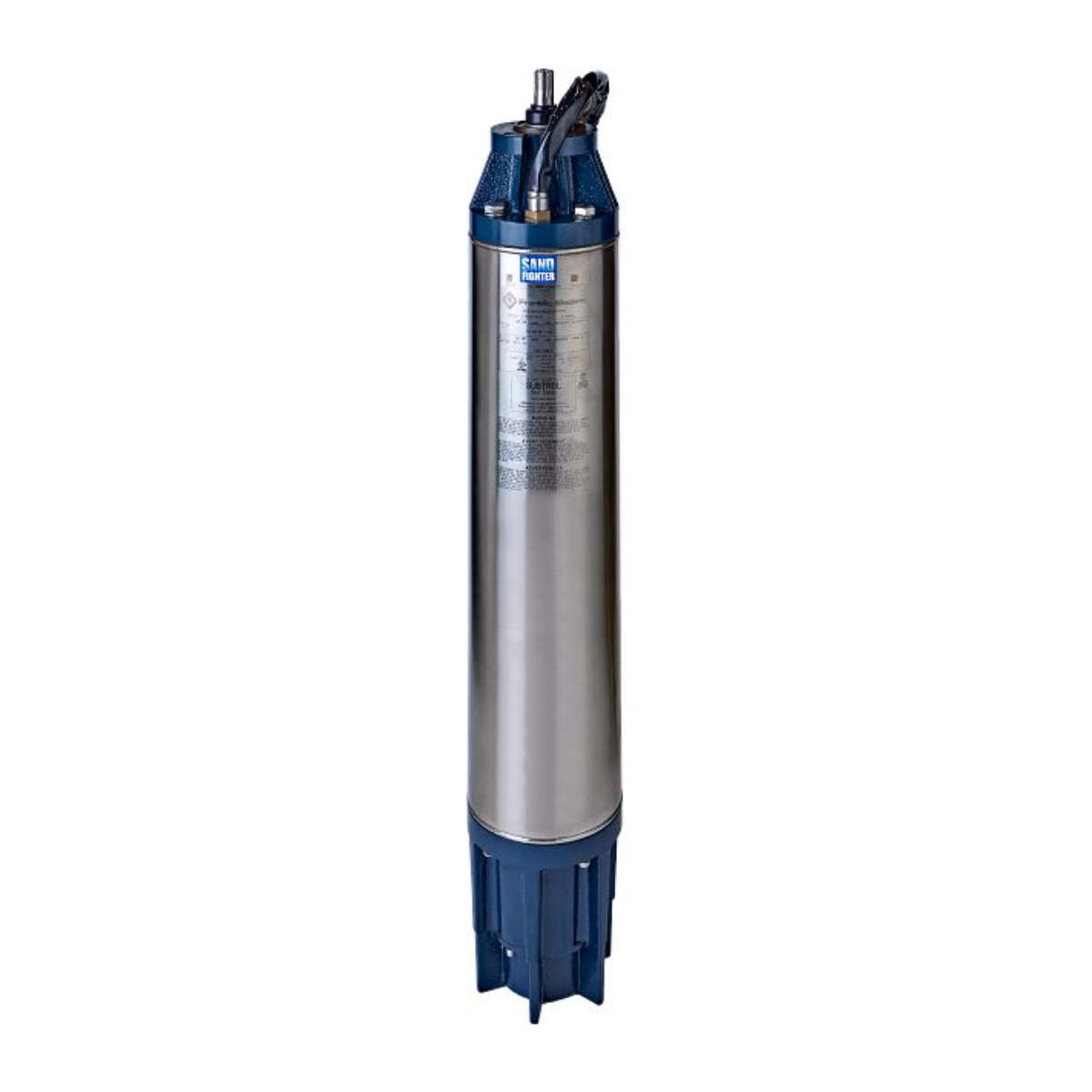

Franklin Electric 2390006121 - 8x6" Encapsulated Submersible Motor - Sand Fighter Type (40 HP, Three Phase, 460V, 60Hz, 3-Wire)

The Franklin Electric 2390006121 - 8" Encapsulated Submersible Motor - Sand Fighter Type - is engineered for large, demanding water applications requiring high flow rates or deeper installations. Designed for vertical operation in 8-inch or larger water wells, the motors feature a 6-inch pump mounting surface that meets NEMA standards, ensuring compatibility with any 6-inch submersible pump or turbine for a wide range of applications. Please contact a member of Dade Pump's sales or service team for assistance in selecting the correct pump for your needs!

** Please Note:  Image is a stock photo and may not match exactly **

Product Specifications:

HP:  40

Phase:  Three

Voltage:  460

Hz: 60

Wire:  3-Wire

Motor Length:  36.2"

Weight:  320 lbs

Lead: Yes - 13'

Motor Connection:  DOL

Manufacturer Description:

Franklin Electric 8x6" Encapsulated Submersible Motors are built for durability. These motors offer a robust construction and deliver substantial water supplies for irrigation, community water systems, and factories needing significant flow or pressure. We focus on providing reliable systems that deliver proven performance for years to come.

Applications:

• These motors are built for vertical operation in 8-inch diameter or larger water wells. The 6-inch pump mounting surface meets NEMA standards to accommodate any 6-inch pump. Temperature and time rating are continuous in 30°C (86 °F) water at 0.5 ft./sec. flow past the motor. Rotation is electrically reversible.
