Franklin Electric 2630165331 - 8" Encapsulated MagForce™ High Efficiency Motor - Sand Fighter Type (125 HP, Three Phase, 460V, 120Hz, 3-Wire)

The Franklin Electric 2630165331 - 8" Encapsulated MagForce™ High Efficiency Motor - Sand Fighter Type - is powered with permanent magnet technology. Equipped with a 125 HP three phase motor, super stainless steel construction and Kingsbury-type thrust bearing this motor was designed to ensure your water continues to flow. Manufactured by Franklin Electric for quality and reliability when consistent performance is required. Please contact a member of Dade Pump's sales or service team for assistance in selecting the correct pump for your needs!

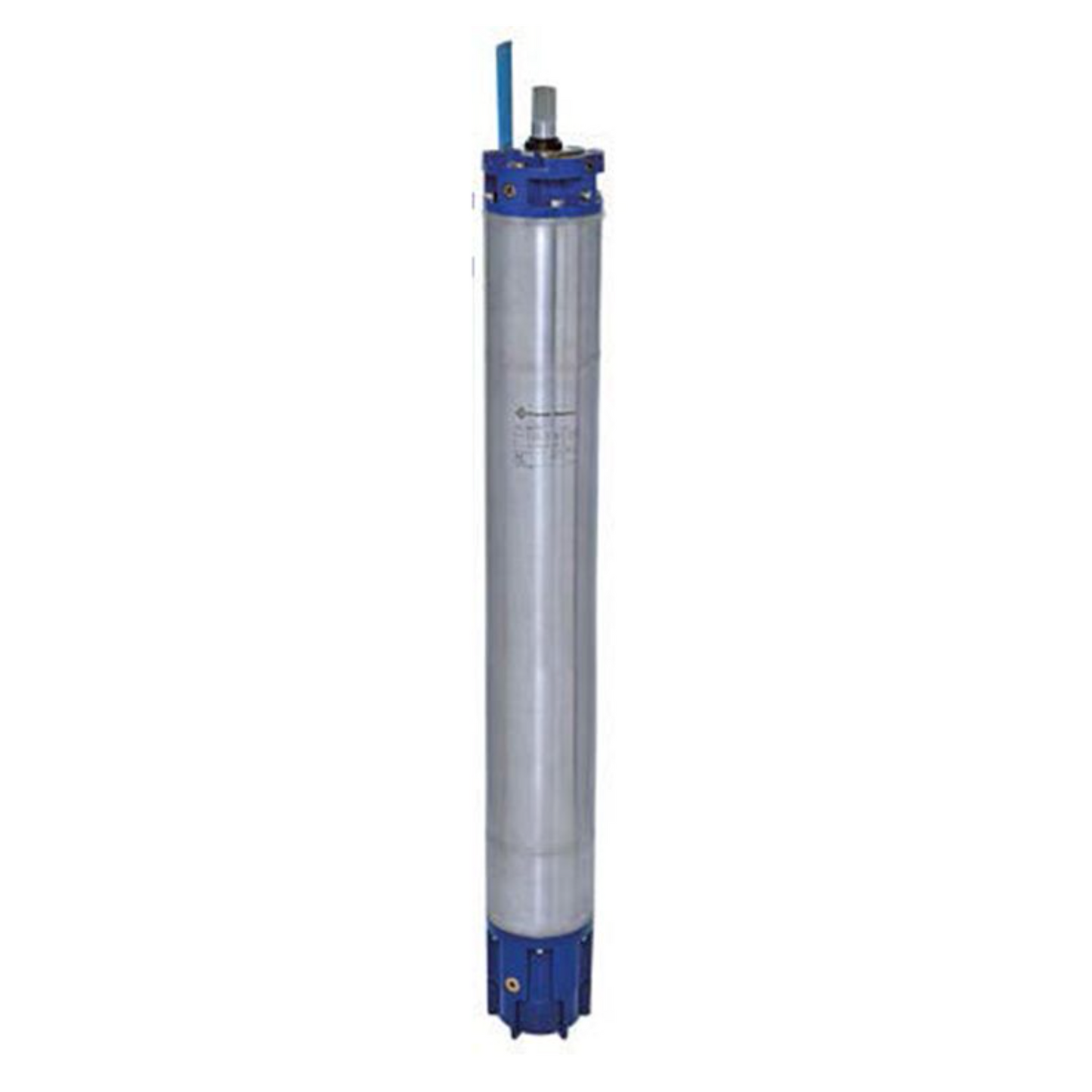

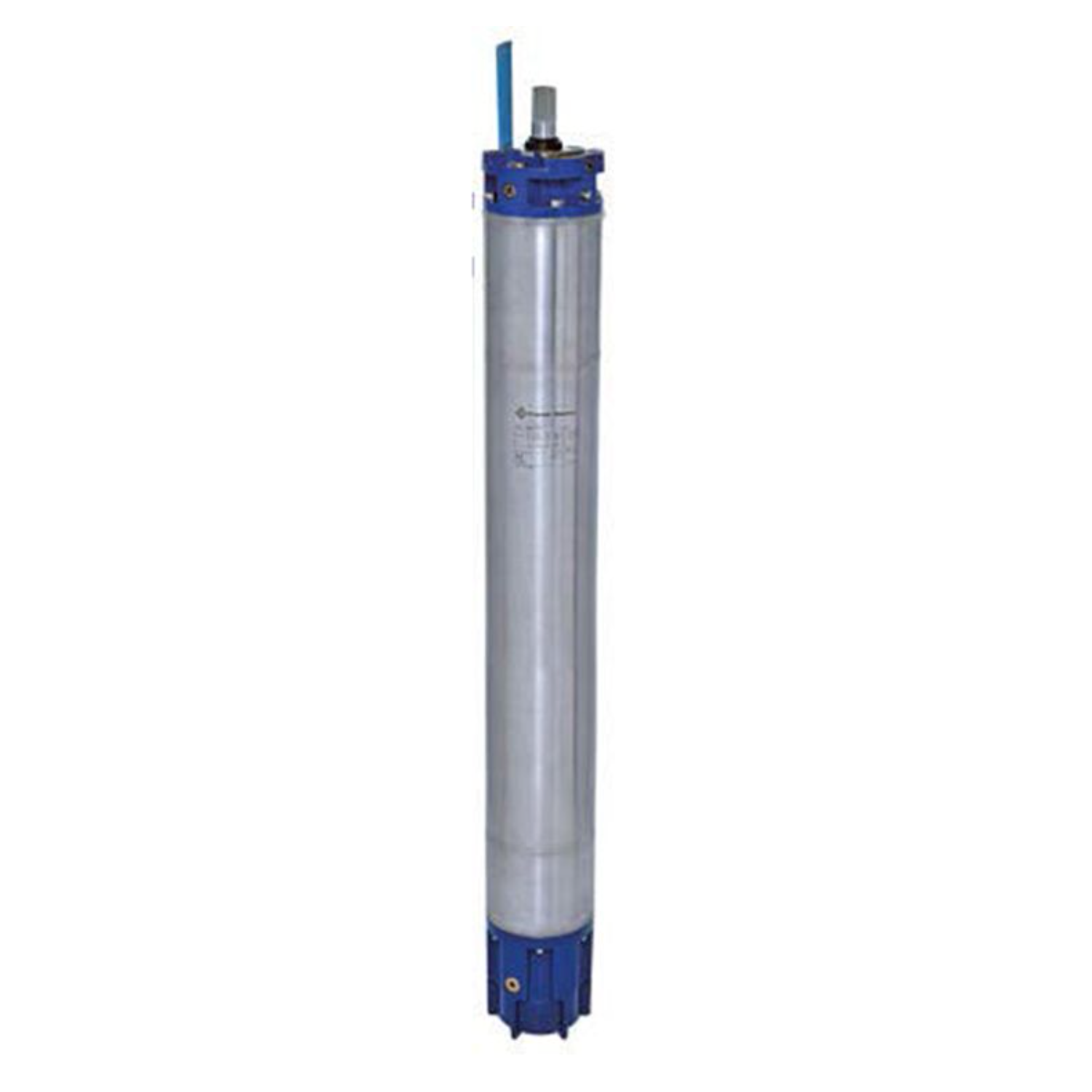

** Please Note:  Image is a stock photo and may not match exactly **

Product Specifications:

HP:  125

Phase:  Three

Voltage:  460

Hz: 120

Wire:  3-Wire

Motor Length:  51.81"

Weight:  437 lbs

Lead: Yes - 21'

Manufacturer Description:

Franklin Electric 8-Inch MagForce High Efficiency Motors are the next generation of submersibles powered by permanent magnet technology. Leveraging the unwavering reliability of Franklin Electric's submersible motor design, MagForce High Efficiency Motors offer improved performance over standard induction motors while also providing the features, benefits and robustness you trust for servicing water well applications.

Features & Benefits

• Powered by MagForce High Efficiency Motor with up to 93% efficiency rating that is 5-6 points (7%) greater than standard induction motor construction. Typical duty rate systems can have a payback* of 1 to 2 years.
• Up to 14% energy savings* compared to traditional induction motors.
• Available motor options cover a wide range of pump horsepower needs (up to 175 hp) with fewer SKUs to manage.
• Lighter and easier to handle than standard induction motors.
• When optimized and paired with a Franklin Electric variable frequency drive, expect easy startups and reliable protection for any project.
• Rely on components from a single trusted source for the ultimate in operational compatibility and optimized operation.
• Comes fully supported by the industry’s leading Technical Support professionals and Field Service Engineers.
• *Field trial data.

Applications - Ideal for Long Run:

• Groundwater remediation
• Drainage water level control
• Municipal/Utility water supply
• Construction site dewatering
• High volume and industrial livestock operations
• Mine site dewatering and tank level control
• Well supply geothermal HVAC systems

Basic Features:

• High efficiency electrical desgin for low operational costs
• Corrosion-resistant all stainless steel exterior construction
• Stainless steel splined shaft
• Hermetically-sealed windings
• Anti-track self-healing resin system
• Water lubrication
• Filter check valve
• Kingsbury-type thrust bearing
• Pressure equalizing diaphragm
• Built-in lightning arrestors
• Continuous rating in 86° F (30 °C) water
• Removable "Water-Bloc" lead
• UL 778 recognized
• CSA certified
• ANSI/NSF 61 certified
• NEMA mounting dimensions
