Franklin Electric 2760096462 - 6H3F 6" Encapsulated DR56 Dual-Rated Motor - 316 SS (60/50 HP, Three Phase, 460/380V, 6/5, W)

Franklin Electric 2760096462 - 6H3F 6" Encapsulated DR56 Dual-Rated Motor - 316 SS (60/50 HP, Three Phase, 460/380V, 6/5, W)

$16,017.65 USD
$29,123.00 USD $16,017.65 USD
Sale Sold out
Shipping calculated at checkout.

2760096462

The Franklin Electric 2760096462 - 6H3F 6" Encapsulated DR56 Dual-Rated Motor - 316 SS Type. This series separates itself with it's high temp capabilities and dual rating. Franklin's 6" submersible motors are used in wells demanding high flow rates or deeper installation. Designed and manufactured by Franklin Electric for quality and reliability when high flow or pressure is needed. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!

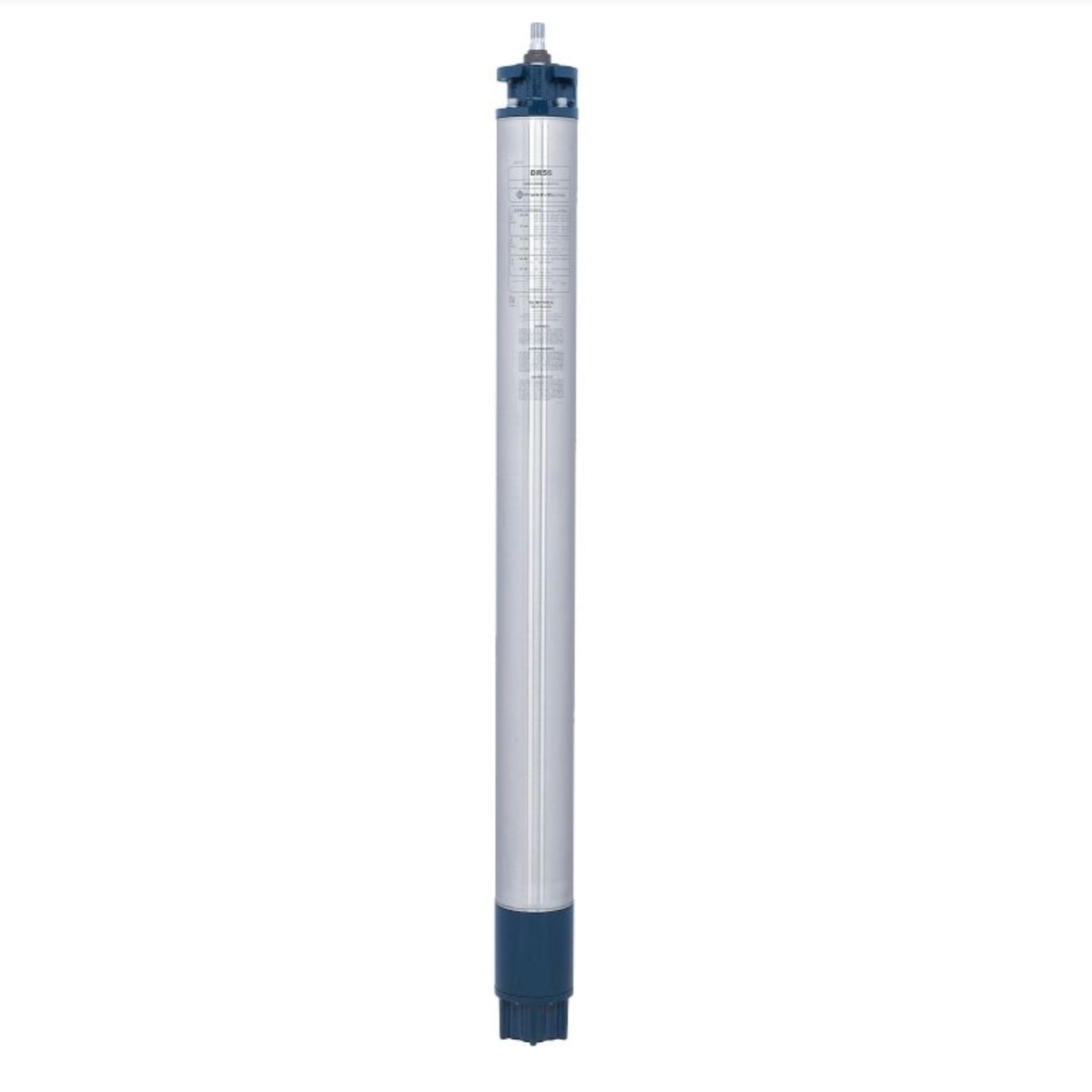

** Picture is stock photo and may not match exactly **

Product Specifications:

HP:  60/50

Voltage:  460/380

Phase:  Three

Weight:  330 lbs

Motor Connection:  DOL

Wire:  3-Wire

Manufacturer Description:

Pumping applications are rapidly changing - and Franklin's DR56 motor was designed and built in response to many requests for a motor that can operate effectively under these evolving application demands. The DR56 6 inch motor utilizes our premium encapsulation process to allow continuous operation in water temperatures of up to 50 °C (provided minimum allowable rates of flow past the motor are maintained). Franklin's DR56 is the right choice for your demanding, high temperature 6 inch well applications.

Series Specifications:

  • Up to 122 °F (50 °C) ambient temperature.
  • Hermetically sealed stator
  • Innovative high temperature winding encapsulation system
  • Kingsbury-type (10,000 lbs) thrust bearing
  • FES91 exclusive water-soluble bearing lubrication
  • Double-flange NEMA mounting for ease of handling and pump mounting
  • Splined stainless steel shaft for maximum shaft/coupling contact
  • Full 60 Hz 3,450 rpm design point for superior pump performance
  • Sand Fighter™ sealing system
  • Subtrol™ heat sensor standard
  • Franklin Electric’s exclusive “Water-Bloc™” lead connection
  • 316 stainless steel and Y- designs available (consult factory for more details)
  • NSF/ANSI 61 Certified

Ratings
HP 60Hz 60 hp
Frequency 50Hz/60Hz
Phases Three-Phase
Amps - Full Load 81 A
Amps - Service Factor 92.3 A
Volts 380 VAC / 460 VAC
Voltage Tolerance (%) -10.0% / +10.0%
Wire 3-Wire
Motor Connection DOL
Thrust Bearing Rating 10000 lb
Lead Length 13 ft
Motor Encapsulated
Continuous Duty Yes
Efficiency Service Factor Load [%] 84.00 %
Protection [IP] IP68
Lead Wire Size AWG #8
Lead Retainer Method Lead Jam Nut
Motor Insulation Classification F
Poles 2
S.F. 1.15

Operation
Motor Cooling Water
Minimum Cooling Flow .50 ft/sec
Motor Ambient Temperature Rating Nominal 122 °F
Thrust Bearing Rating 10000 lb
Motor Adapter Double flange
Rotation Counter clockwise facing the shaft
SubTrol Heat Sensor Yes
Winding Resistance (Main Winding) .22-.27

Materials of Construction
Motor Shaft End - Material 17-4SS
Thrust Bearing Kingsbury Type
Seal Material Silicon Carbide / Silicon Carbide
Seal Mechanical Seal
Lead Insulation Material Overmolded
Diaphragm Material Fluoroelastomers FKM
Motor Bottom End Bell Material 316 SS
Motor Fill Solution (Water Soluble / Non Toxic) Yes
Motor Fill Solution FES92
Motor Top End Bell Material 316 SS
Shaft Slinger Material Nitrile Rubber (NBR)
Stator Ends Material 316 SS
Stator Fill Resin
Stator/ Motor Shell Material 316 SS
Winding Material Copper

Dimensions
Motor Diameter - Physical Diameter 5.44"
Motor Length 64.2 "
Product Weight 302 lb
Product Weight with Pack 330 lb
Carton Length 71.75 "
Carton Width 8.75 "
Carton Height 10.5 "
Shaft Diameter 1 "
Shaft End Spline

Other
Warranty Standard Time 12 Mo. from Date of Install / 24 Mo. from Date of Manufacturing
Repair Kit Available Yes
