Franklin Electric 3NC-323P1-184 NC Series Solids Handling Pump - 87109896-00 (3 HP, 230V, Single Phase, 3" Discharge, 30' Lead)
Franklin Electric 3NC-323P1-184 NC Series Solids Handling Pump - 87109896-00 (3 HP, 230V, Single Phase, 3" Discharge, 30' Lead)
Regular price
$4,016.25 USD
Regular price
$5,355.00 USD
Sale price
$4,016.25 USD
Shipping calculated at checkout.
SKU:3NC-323P1-184
Quantity
Couldn't load pickup availability
Franklin Electric 3NC-323P1-184 NC Series Solids Handling Pump - 87109896-00 - is equipped with a power coated corrosion resistant finish and ductile iron impeller for longevity and decreased downtime. This model has a 3 HP motor with stainless steel shaft and 3" discharge. Franklin Electric manufacturers high quality pumps and motors with the end user in mind.

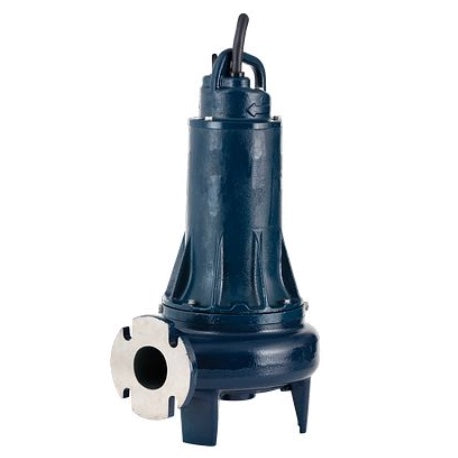

** Picture is a stock photo and may not match exactly **
Product Specifications:
HP: 3
Voltage: 230
Discharge: 3"
Full Load Amps: 25
Lead Length: 30'
Maximum Flow Rate: 610 gpm - See Performance Chart
Maximum Head: 68'
Manufacturer Description:
Ratings |
|
| HP 60Hz | 3 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Amps - Full Load | 25 A |
| Volts | 230 VAC |
| Lead Length | 30 ft |
| Continuous Duty | Yes |
| Motor Insulation Classification | F |
Operation |
|
| Maximum Flow Rate - 60 Hz | 475 gpm |
| Minimum Flow Rate - 60 Hz | 55 gpm |
| Shut Off | 46 ft |
| Minimum Head - 60 Hz | 10 ft |
| Shut Off 60 Hz | 50 ft |
| Max Solid Handling Size | 2.5 " |
| Motor Cooling | Fully Submerged |
| Pump rpm - 60 Hz | 1750 |
Liquid |
|
| Maximum Fluid Temperature | 104 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Ductile Iron |
| Motor Shaft End - Material | 420 Stainless Steel |
| Discharge Material | Cast Iron |
| Intake Screen Material | Cast Iron |
| Seal Material | Silicon Carbide / Silicon Carbide / NBR |
| Seal | Mechanical Seal |
| Motor Fill Solution | Oil (white oil) |
| Volute / Side Inlet Material | Cast Iron |
| Wear Plate | Adjustable/Replaceable Class 20/25 equivalent cast iron |
Dimensions |
|
| Discharge | Flange |
| Discharge Diameter | 3 " |
| Impeller Diameter | 7.24 " |
| Pump Length | 15.6 " |
| Product Weight | 235 lb |
| Product Weight with Pack | 245 lb |
| Carton Length | 20.87 " |
| Carton Width | 18.9 " |
| Carton Height | 35.83 " |
| Pump Height | 26.7 " |
| Pump Width | 12.1 " |
| Shaft Diameter | 1 " |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cCSAus |
| Warranty Standard Time | 12 Month Install / 24 Month Manufacturing |
| Applications | Commercial and Industrial sewage, effluent, irrigation, and general de-watering. |
