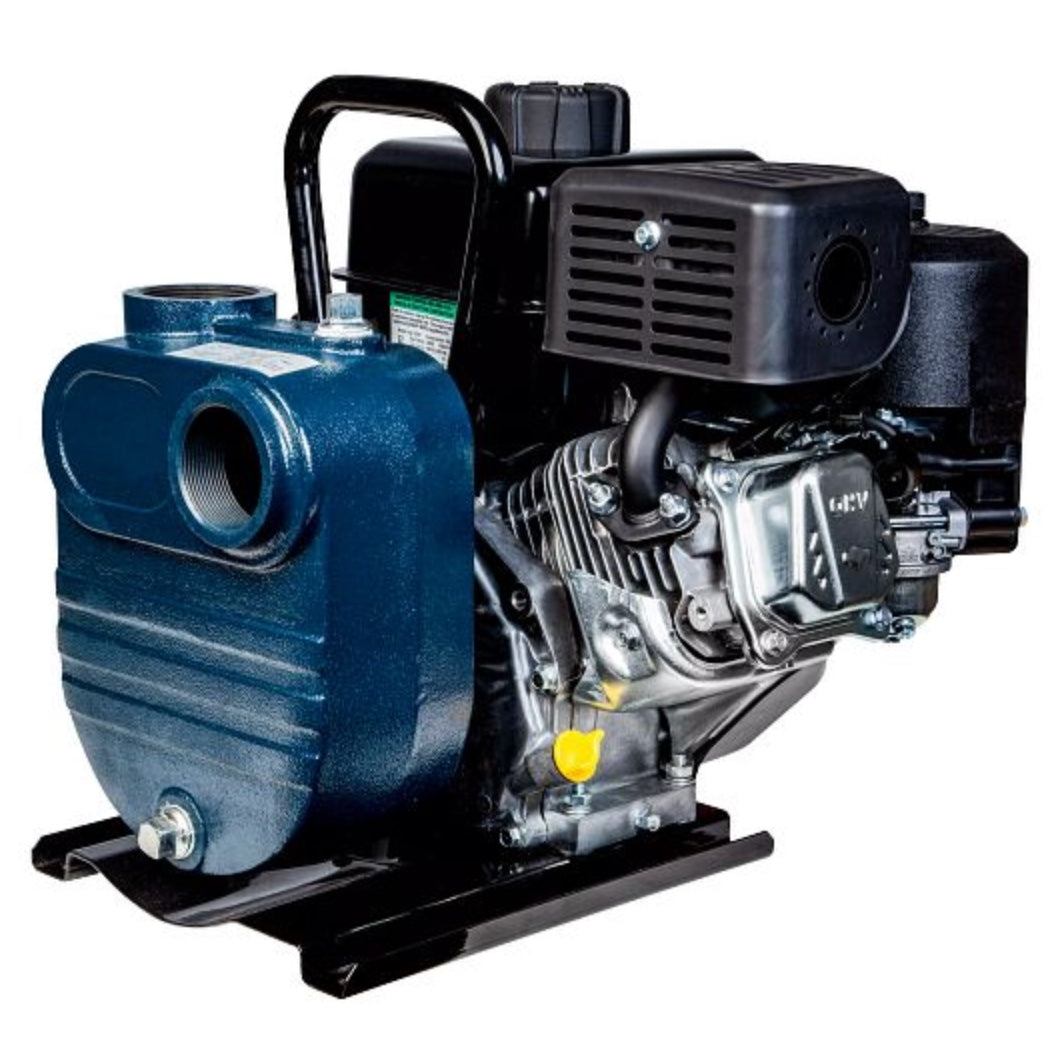

Franklin Electric 90271010 Model FBSGF-10 Gas Engine Driven Self-Priming Centrifugal Pump (6.5 HP Briggs & Stratton, 2" x 2")

Franklin Electric 90271010 Model FBSGF-10 Gas Engine Driven Self-Priming Centrifugal Pump (6.5 HP Briggs & Stratton, 2" x 2")

$1,584.00 USD
$2,448.00 USD $1,584.00 USD
Sale Sold out
Shipping calculated at checkout.

90271010

Franklin Electric 90271010 Model FBSGF-10 Gas Engine Driven Self-Priming Centrifugal Pump is a popular choice for water transfer and irrigation applications. A rugged cast iron casing and semi-open impeller make this pump suitable for many applications. Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.

Pump Specifications:

Pump Casing Material:  Cast Iron

Motor:  Briggs & Stratton 6.5 HP

Impeller Material:  Cast Iron

Ports:  2" x 2" Female NPT

Maximum Water Temperature:  200 Degrees F

Features & Benefits

  • Volute: Cast iron rugged construction with tapped openings for priming, venting and draining
  • Impeller: Semi-open cast iron with “blind hole” for engine shaft protection
  • Mechanical Seal: Standard carbon/ceramic faces, FKM elastomers, 300 series stainless components
  • Engine: Industry recognized Briggs & Stratton, or Honda equipped with adjustable throttle controls
  • Mounting: Horizontal position

Applications:

  • Irrigation
  • Construction
  • Mining
  • Commercial
  • Municipal
  • Light Industrial

Ratings
Motor Surface
Protection [IP] Not Applicable
Engine Size - Driven Pumps (CC) 205

Operation
Stages 1
Motor NEMA Frame Type not applicable
Motor Cooling Air
Rotation Clockwise facing the shaft
Temperature Rating 200 °F

Liquid
Maximum Fluid Temperature 200 °F

Materials of Construction
Pump Body Material Cast Iron
Impeller Semi-open
Impeller Material Cast Iron
Motor Bracket Material Cast Iron
Discharge Material Cast Iron
Seal Material Carbon/Ceramic, FKM, 300 series S.S.
Seal Mechanical Seal
Suction Material Cast Iron
Engine Brand For Driven Pumps Briggs & Stratton
Engine Type For Driven Pumps Air Cooled, 4 Stroke, OHV

Dimensions
Discharge Threaded - FNPT
Discharge Diameter 2 "
Impeller Diameter 4.56 "
Suction Diameter 2 "
Suction Threaded - FNPT
Pump Length 16.69 "
Carton Length 17.69 "
Carton Width 16.75 "
Carton Height 16.63 "
Pump Height 16 "
Pump Width 15.75 "

Other
Warranty Standard Time 12 Month Install / 24 Month Manufacturing
Applications Irrigation, Construction, Mining, Commercial, Municipal, Light Industrial
