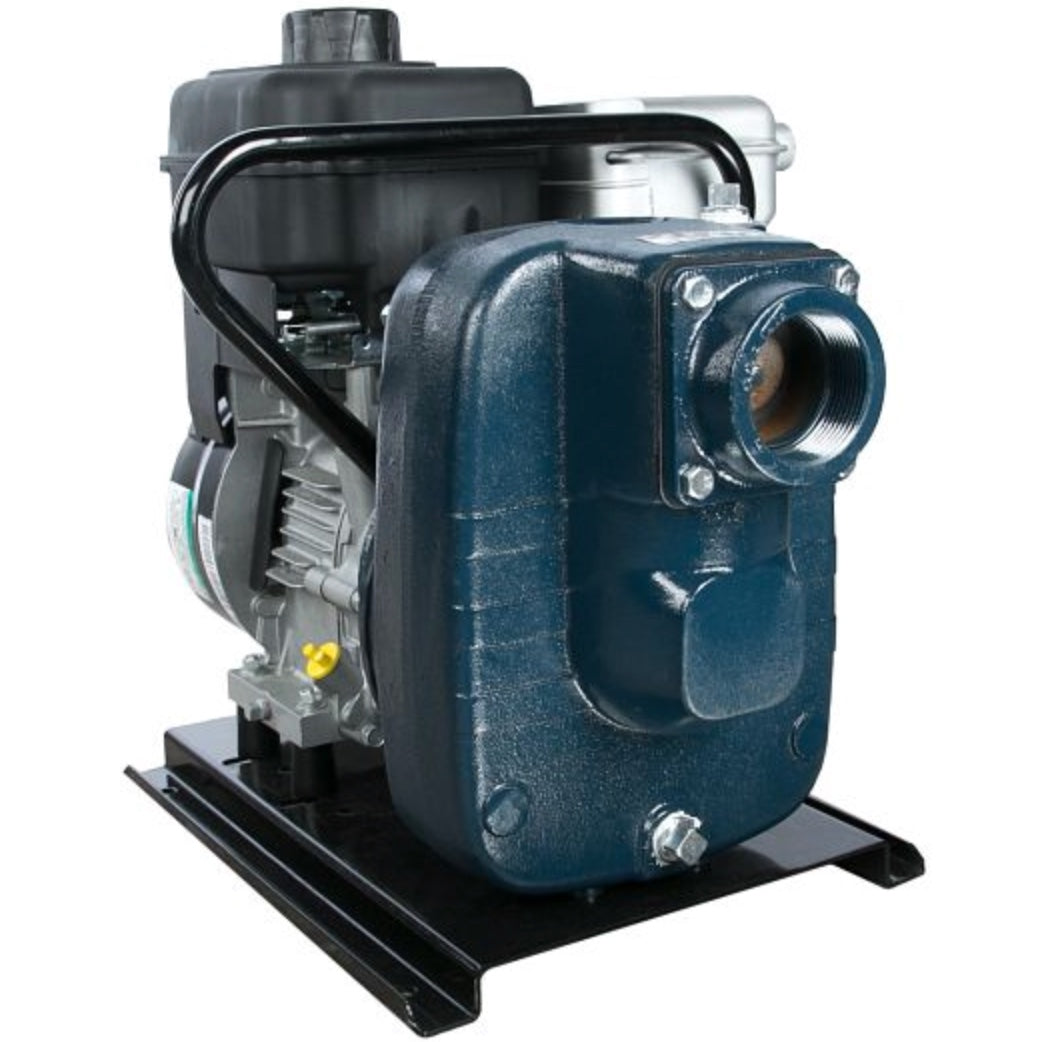

Franklin Electric 90272105 Model FNSGF-5H Gas Engine Driven Self-Priming Centrifugal Pump (5.5 HP Honda, 2" x 2")

Franklin Electric 90272105 Model FNSGF-5H Gas Engine Driven Self-Priming Centrifugal Pump (5.5 HP Honda, 2" x 2")

$3,317.00 USD
$5,115.00 USD $3,317.00 USD
Sale Sold out
Shipping calculated at checkout.

90272105

Franklin Electric 90272105 Model FNSGF-5H Gas Engine Driven Self-Priming Centrifugal Pump is a popular choice for water transfer and irrigation applications. A rugged cast iron casing and enclosed impeller for high pressure make this pump suitable for many applications. Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.

Pump Specifications:

Pump Casing Material:  Cast Iron

Motor:  Honda 5.5 HP

Impeller Material:  Cast Iron

Ports:  2" x 2" Female NPT

Maximum Water Temperature:  200 Degrees F

Features & Benefits

  • Volute: Cast iron rugged construction with tapped openings for priming, venting and draining
  • Impeller: Enclosed cast iron for higher pressure applications
  • Mechanical Seal: Standard carbon/ceramic faces, FKM elastomers, 300 series stainless components
  • Engine: Industry recognized Kohler, Briggs & Stratton, or Honda equipped with adjustable throttle controls
  • Mounting: Horizontal position

Applications:

  • Irrigation
  • Construction
  • Mining
  • Commercial
  • Municipal
  • Light Industrial

Ratings
Motor Surface
Protection [IP] Not Applicable
Engine Size - Driven Pumps (CC) 160

Operation
Stages 1
Motor NEMA Frame Type not applicable
Motor Cooling Air
Rotation Clockwise facing the shaft
Temperature Rating 200 °F

Liquid
Maximum Fluid Temperature 200 °F

Materials of Construction
Pump Body Material Cast Iron
Impeller Closed
Impeller Material Cast Iron
Motor Bracket Material Cast Iron
Discharge Material Cast Iron
Seal Material Carbon/Ceramic, FKM, 300 series S.S.
Seal Mechanical Seal
Diffuser Material Cast Iron
Suction Material Cast Iron
Engine Brand For Driven Pumps Honda
Engine Type For Driven Pumps Air Cooled, 4 Stroke, OHV

Dimensions
Discharge Threaded - FNPT
Discharge Diameter 2 "
Impeller Diameter 6.06 "
Suction Diameter 2 "
Suction Threaded - FNPT
Pump Length 20.25 "
Carton Length 20 "
Carton Width 16 "
Carton Height 16.38 "
Pump Height 14.38 "
Pump Width 16.2 "

Other
Warranty Standard Time 12 Months
Applications Irrigation, Construction, Mining, Commercial, Municipal, Light Industrial
