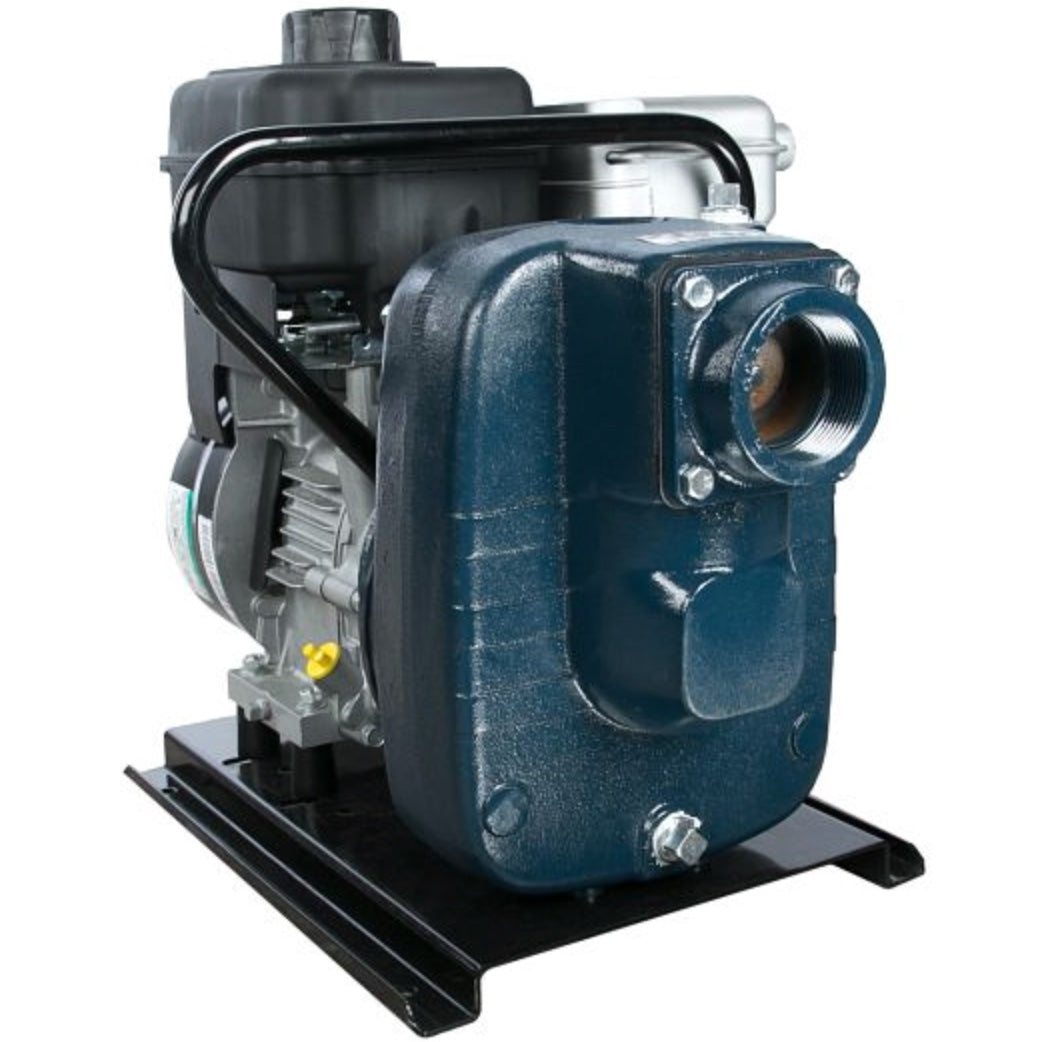

Franklin Electric 90272108 Model FNSGF-8H Gas Engine Driven Self-Priming Centrifugal Pump (9 HP Honda, 2.5" x 2")
Franklin Electric 90272108 Model FNSGF-8H Gas Engine Driven Self-Priming Centrifugal Pump (9 HP Honda, 2.5" x 2")
Regular price
$4,654.00 USD
Regular price
$7,229.00 USD
Sale price
$4,654.00 USD
Unit price
/
per
Shipping calculated at checkout.
SKU:90272108
Couldn't load pickup availability
Franklin Electric 90272108 Model FNSGF-8H Gas Engine Driven Self-Priming Centrifugal Pump is a popular choice for water transfer and irrigation applications. A rugged cast iron casing and enclosed impeller for high pressure make this pump suitable for many applications. Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.
Pump Specifications:
Pump Casing Material: Cast Iron
Motor: Honda 9 HP
Impeller Material: Cast Iron
Ports: 2.5" x 2" Female NPT
Maximum Water Temperature: 200 Degrees F
Features & Benefits
- Volute: Cast iron rugged construction with tapped openings for priming, venting and draining
- Impeller: Enclosed cast iron for higher pressure applications
- Mechanical Seal: Standard carbon/ceramic faces, FKM elastomers, 300 series stainless components
- Engine: Industry recognized Kohler, Briggs & Stratton, or Honda equipped with adjustable throttle controls
- Mounting: Horizontal position
Applications:
- Irrigation
- Construction
- Mining
- Commercial
- Municipal
- Light Industrial
Ratings |
|
| Motor | Surface |
| Protection [IP] | Not Applicable |
| Engine Size - Driven Pumps (CC) | 270 |
Operation |
|
| Stages | 1 |
| Motor NEMA Frame Type | not applicable |
| Motor Cooling | Air |
| Rotation | Clockwise facing the shaft |
| Temperature Rating | 200 °F |
Liquid |
|
| Maximum Fluid Temperature | 200 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Cast Iron |
| Motor Bracket Material | Cast Iron |
| Discharge Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
| Diffuser Material | Cast Iron |
| Suction Material | Cast Iron |
| Engine Brand For Driven Pumps | Honda |
| Engine Type For Driven Pumps | Air Cooled, 4 Stroke, OHV |
Dimensions |
|
| Discharge | Threaded - FNPT |
| Discharge Diameter | 2 " |
| Impeller Diameter | 6.56 " |
| Suction Diameter | 2.5 " |
| Suction | Threaded - FNPT |
| Pump Length | 23.66 " |
| Carton Length | 23 " |
| Carton Width | 21.69 " |
| Carton Height | 22.44 " |
| Pump Height | 17.75 " |
| Pump Width | 17.31 " |
Other |
|
| Warranty Standard Time | 12 Month Install / 24 Month Manufacturing |
| Applications | Irrigation, Construction, Mining, Commercial, Municipal, Light Industrial |
