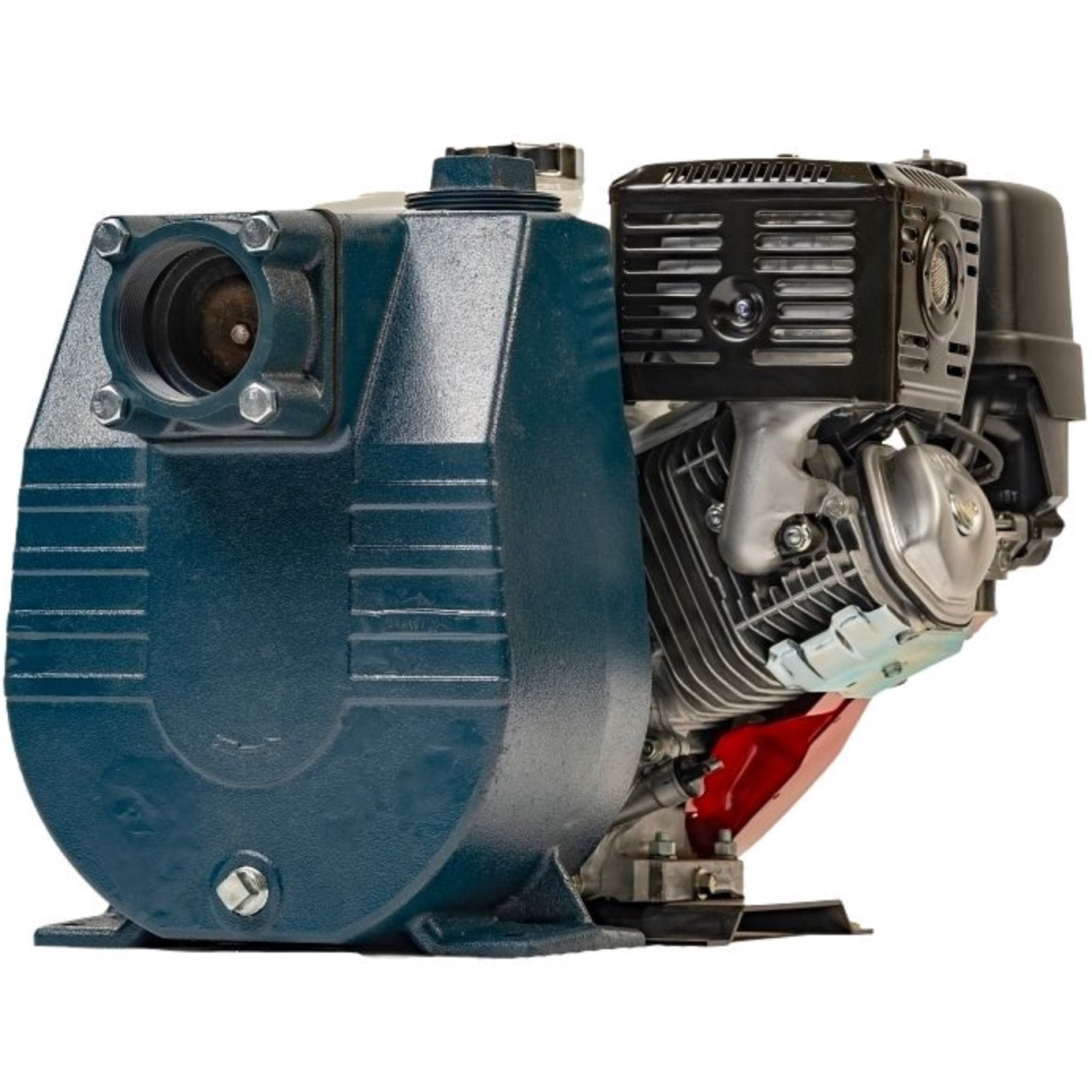

Franklin Electric 90281218 Model FMIG40-18K Gas Engine Driven Self-Priming Centrifugal Pump (624CC Kohler, 4" x 4")

Franklin Electric 90281218 Model FMIG40-18K Gas Engine Driven Self-Priming Centrifugal Pump is a popular choice for water transfer and irrigation applications. Ideal for flow rates up to 300 gpm and 50-60 psi. A rugged cast iron casing and removable front cover make this pump suitable for many applications. Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.

Pump Specifications:

Pump Casing Material:  Cast Iron

Motor:  Kohler 624CC

Impeller Material:  Cast Iron

Ports:  4" x 4" Female NPT

Maximum Water Temperature:  200 Degrees F

Features & Benefits

• Volute: Cast gray iron rugged construction. Self-priming with priming and drain plugs.
• Removable front cover features a built in check valve to facilitate priming
• Impeller: Semi-open cast iron, non-clogging, designed for water but can also handle small quantities of mud, sand, or silt up to 10% by volume
• Replaceable steel wear plate for maintaining maximum pump efficiency
• Mechanical Seal: Standard carbon/ceramic faces, FKM elastomers, 300 series stainless components
• Engine: Industry recognized Honda or Kohler
• Mounting: Horizontal position

Applications:

• Irrigation
• Construction
• Mining
• Commercial
• Municipal
• Light Industrial
