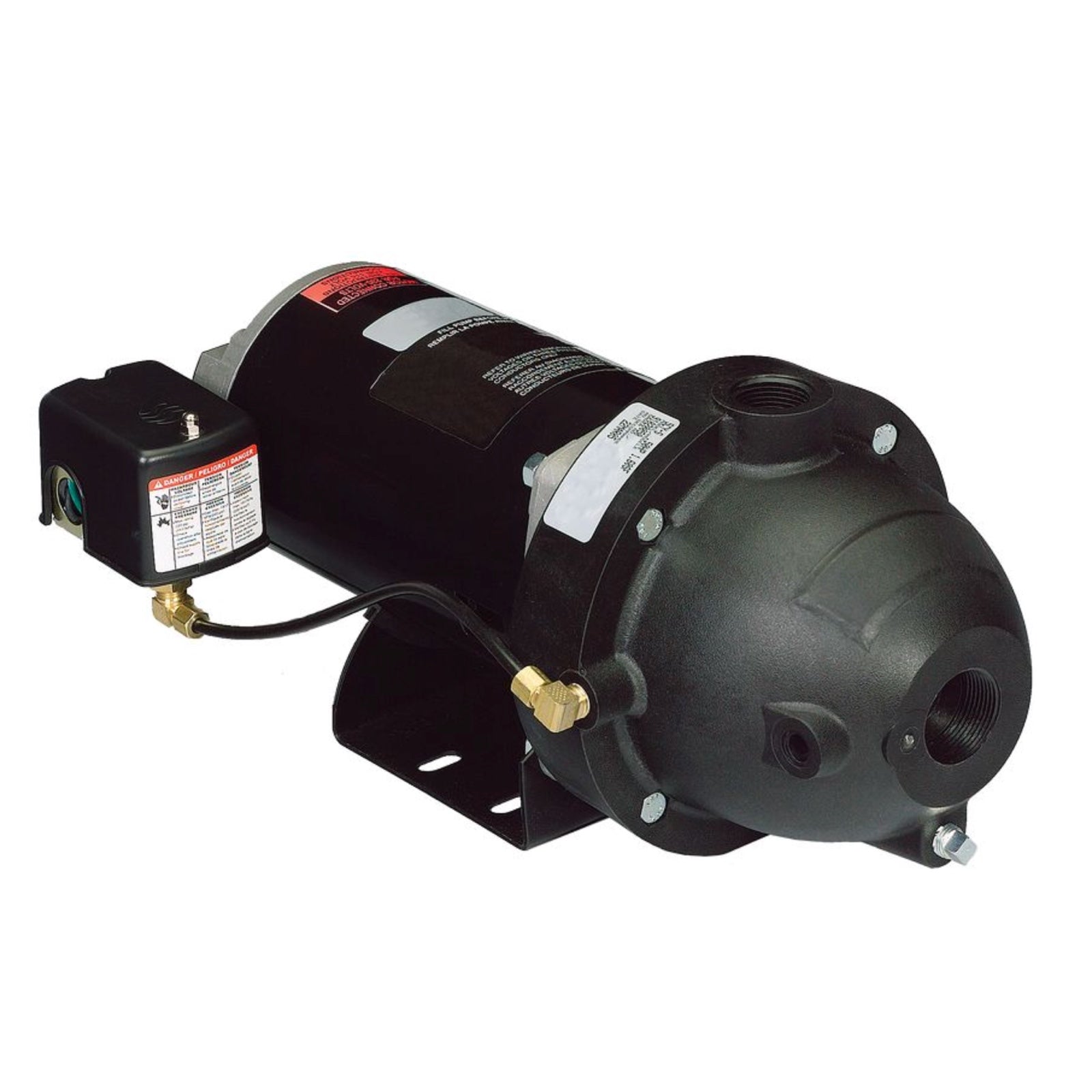

Franklin Electric 91090005 Model FSWJ05P SWJ Series Non-Corrosive Shallow Well Jet Pump (1/2 HP, Single Phase, 115/230V, ODP)

The Franklin Electric 91090005 Model FSWJ05P SWJ Series Non-Corrosive Shallow Well Jet Pump is designed for depths up to 25'. A thermoplastic corrosion resistant pump casing and impeller ensure minimum downtime. Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.

Pump Specifications:

Pump Casing Material:  Thermoplastic

Voltage:  115/230V

Motor:  1/2 HP, Single Phase, ODP

Impeller Material:  Thermoplastic

Ports:  1-1/4" x 1" Female NPT

Maximum Water Temperature:  120 Degrees F

Duty Cycle:  Continuous

Frequency:  60 Hz

Non-corrosive thermoplastic construction allows the SWJ shallow well jet pump to be used in clean water installations without the fear of corrosion. The Self cleaning injector screen provides an additional level of anti clogging for those turbid environments that a shallow well jet pump is required.

SWJ Series Features & Benefits:

• Non-corrosive thermoplastic construction.
• Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service.
• Self cleaning, anti-clogging injector screen.
• Thermoplastic impeller and diffuser ensure increased hydraulic performance.
• Floating stainless steel eye seal for maximum performance and efficiency.
• Square-flange mounting provides easy serviceability without disturbing the plumbing.
• Built-in drain plug for easy winterizing and servicing.
• Mechanical shaft seal allows positive protection against leaking.
• Order pressure gauge separately.
• Pressure switch is installed and set at 30/50 psi.
• Handles water temperatures up to 120 ˚F/49 ˚C and working pressure up to 75 psi.
• 1-1/4" inlet and 1" outlet - all models
• NSF/ANSI/CAN 372 Certified
