Franklin Electric 91180005 Model FVJ05CI VersaJet Series Cast Iron Shallow Well Jet Pump is designed for depths up to 25'. A rugged cast iron casing and ceramic mechanical seal ensure minimum downtime. Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.

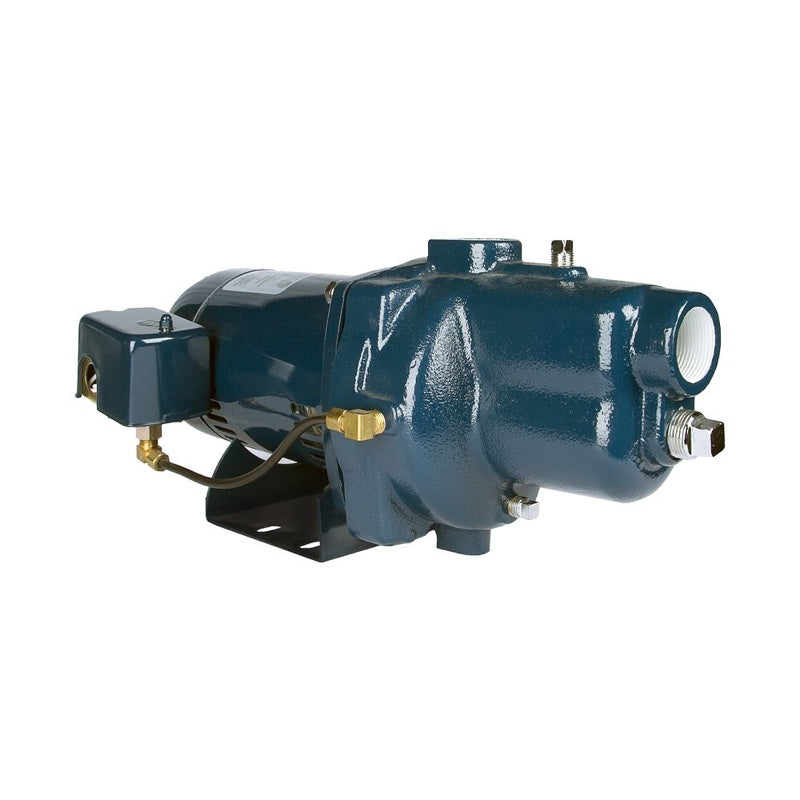

**Picture is stock photo and may not match exactly**
Pump Specifications:
Pump Casing Material: Cast Iron
Voltage: 115/230V
Motor: 1/2 HP, Single Phase, ODP
Impeller Material: Modified PPO
Ports: 1-1/4" x 1" Female NPT
Maximum Water Temperature: 120 Degrees F
Duty Cycle: Continuous
Frequency: 60 Hz
The VersaJet Series shallow well jet pump is designed for shallow well applications and is capable of raising water from a depth of 25 feet. All mechanical parts, motor, impeller, electrical controls, etc., are above ground within easy reach. The VersaJet shallow well jet pump line is capable of a wide range of pressures and flows, but this may require replacing the standard factory installed jet nozzle with one of the other provided nozzles.
FVJ Series Features & Benefits:
- Revolutionary "Quick-Change" jet nozzle replacement system allows for easy customization of the pump; performance can be quickly changed from a high pressure to high flow set-up without removing the plumbing or opening the case
- Impeller (with stainless steel insert), diffuser, jet nozzle, and venturi all molded with Modified PPO, a material that increases efficiency and hydraulic performance
- Phenolic/Ceramic mechanical shaft seal with nitrile elastomers and 18-8SS hardware ensures positive sealing and longevity
- Heavy-duty cast iron case includes both pressure and drain ports
- Floating stainless steel eye seal provides maximum performance and efficiency
- Powered by high quality, industry proven, UL778 approved, indoor/outdoor square-flange single phase motors
- Pressure switch installed and set at 30/50 psi
- Water temperatures up to 120 °F/49 °C; 75 psi maximum working pressure
- 1-1/4" inlet and 1" outlet - all models
- NSF/ANSI/CAN 372 Certified
Ratings
|
| HP 60Hz |
1/2 hp |
| Frequency |
60 Hz |
| Phases |
Single-Phase |
| Volts |
115 VAC / 230 VAC |
| S.F. |
1.27 |
| Amps at 230 Volts |
6.2 A |
Operation
|
| Motor Enclosure |
ODP |
Liquid
|
| Maximum Fluid Temperature |
120 °F |
Materials of Construction
|
| Pump Body Material |
Cast Iron |
| Impeller |
Closed |
| Impeller Material |
Modified PPO |
| Seal Material |
Phenolic/Ceramic x Buna-N |
| Seal |
Mechanical Seal |
Dimensions
|
| Discharge |
Threaded - FNPT |
| Discharge Diameter |
1 " |
| Suction Diameter |
1.25 " |
| Suction |
Threaded - FNPT |
| Pump Length |
18 " |
| Product Weight |
34 lb |
| Product Weight with Pack |
34 lb |
| Carton Length |
19.88 " |
| Carton Width |
11 " |
| Carton Height |
12.25 " |
| Pump Height |
7.97 " |
| Pump Width |
9.18 " |
Other
|
| Drinking Water Agency Approvals |
NSF/ANSI 372 |
| Warranty Standard Time |
24 Months |
| Applications |
Ideal for the supply of fresh water to rural homes, farms, and cabins |
