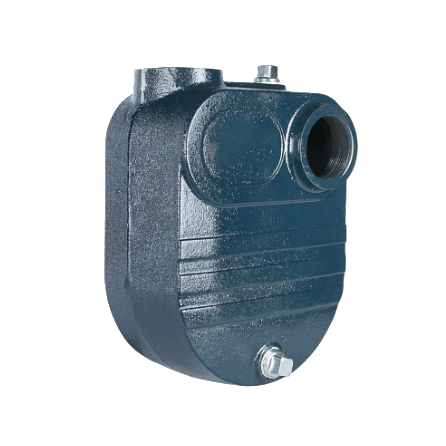

Franklin Electric 92925005 Model FBSE-50K FBSE Series Pump End Kit (1/2 HP, 56J C Face Thrd Shaft)

Franklin Electric 92925005 Model FBSE-50K FBSE Series Pump End Kit.  Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.

*For use with 56J C Face Thrd Shaft Motors. Cast Iron Volute & Impeller.*

Pump Specifications:

Motor: 1/2 HP

Frequency:  60 Hz

Motor Frame:  56J C Face Thrd Shaft

Maximum Fluid Temperature:  212 Degrees F

Pump Material: Cast Iron

Impellar Material: Cast Iron

Discharge Diameter:  2"

Suction Diameter:  1.25"

Pump Length: 5.23"

Product Weight: 18 lb

With its semi-open cast iron impeller, the FBSE Series is ideal for handling fertilizer, salt water, dirty water or other liquids. It features cast iron rugged construction with tapped openings provided for priming, venting and draining.

Features & Benefits

• Volute: Cast iron rugged construction with tapped openings provided for priming, venting and draining.
• Impeller: Semi open cast iron, ideal for handling fertilizer, salt water, dirty water or other liquids. The impeller is blind hole tapped so the liquid will not corrode the shaft.
• Seal: Standard carbon/ceramic faces, Fluoroelastomer (FKM), and 300 series stainless components.
• Motor: Comes with a reliable industry standard motor. Motors range from ½ to 3 hp and use higher than NEMA service factor.

Applications:

• Irrigation
• Construction
• Mining
• Commercial
• Municipal
• Light Industrial
• Residential
