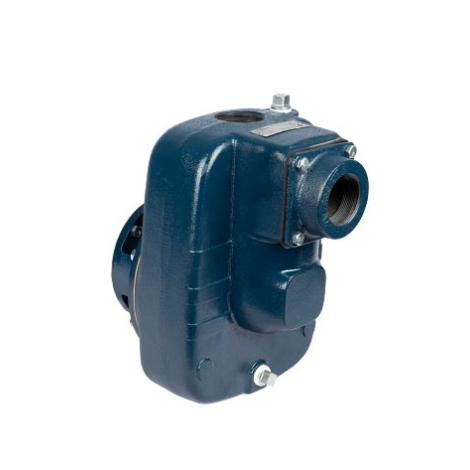

Franklin Electric 92980053 Model FTB5CI-PE Turf Boss Close-Coupled Self-Priming Irrigation Pump End Only (5 HP, 145-184JM)

Franklin Electric 92980053 Model FTB5CI-PE Turf Boss Close-Coupled Self-Priming Irrigation Pump End Only is a popular choice in agriculture, nurseries, car wash and general water transfer purposes. A rugged cast iron casing and self priming capability of 25' make this pump suitable for many applications. Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.

Pump Specifications:

Pump Casing Material:  Cast Iron

Motor:  5 HP

NEMA Frame:  145-184JM

Impeller Material:  Stainless Steel

Discharge Diameter:  2"

Suction Diameter:  2.5"

Maximum Water Temperature:  120 Degrees F

The Turf Boss close-coupled, self-priming centrifugal pump is designed to supply clean or grey water to timer-operated turf irrigation systems. Engineered for durability and easy servicing, it also supports light-duty applications such as agricultural or nursery irrigation, wellpoint dewatering, car wash systems, and general clean-water transfer. As a premium self-priming sprinkler pump, the Turf Boss is CSA and UL certified for indoor or outdoor use. Whether used in irrigation, dewatering, or clean liquid transfer, the Turf Boss delivers the right pressure, right on time.

Note: This pump is not intended for handling solids or abrasive fluids.

FVJ Series Features & Benefits:

• Self-priming design, with the ability to lift water from a depth of 25 feet.
• Easily serviced through a back pull-out design, which leaves the plumbing and both the pump’s base and case undisturbed in their original location.
• Rugged pump case constructed with heavy-duty cast iron ensures optimum durability, quiet operation, and long life.
• Hydraulic components molded with Modified PPO thermoplastic, when coupled with the floating stainless steel impeller eyeseal, ensures dependable and efficient operation.
• Available with a 304 stainless steel impeller for maximum durability.
• Industry proven indoor and outdoor 56-J motors.
• Single-phase: 1 and 1.5 hp motors are dual voltage, set to run with either 115 or 230 V incoming power (2 hp is 230 V only).
• Mechanical shaft seal allows positive protection against leaking.
• Built-in drain plug for easy winterizing and servicing.
• Shut-off pressures up to 130 feet, and flow rates to 70 gpm.
• Handles water temperatures up to 120 °F.
• Integral 1" NPT priming plug.
• 1.5" NPT suction, 1.5" NPT discharge.
