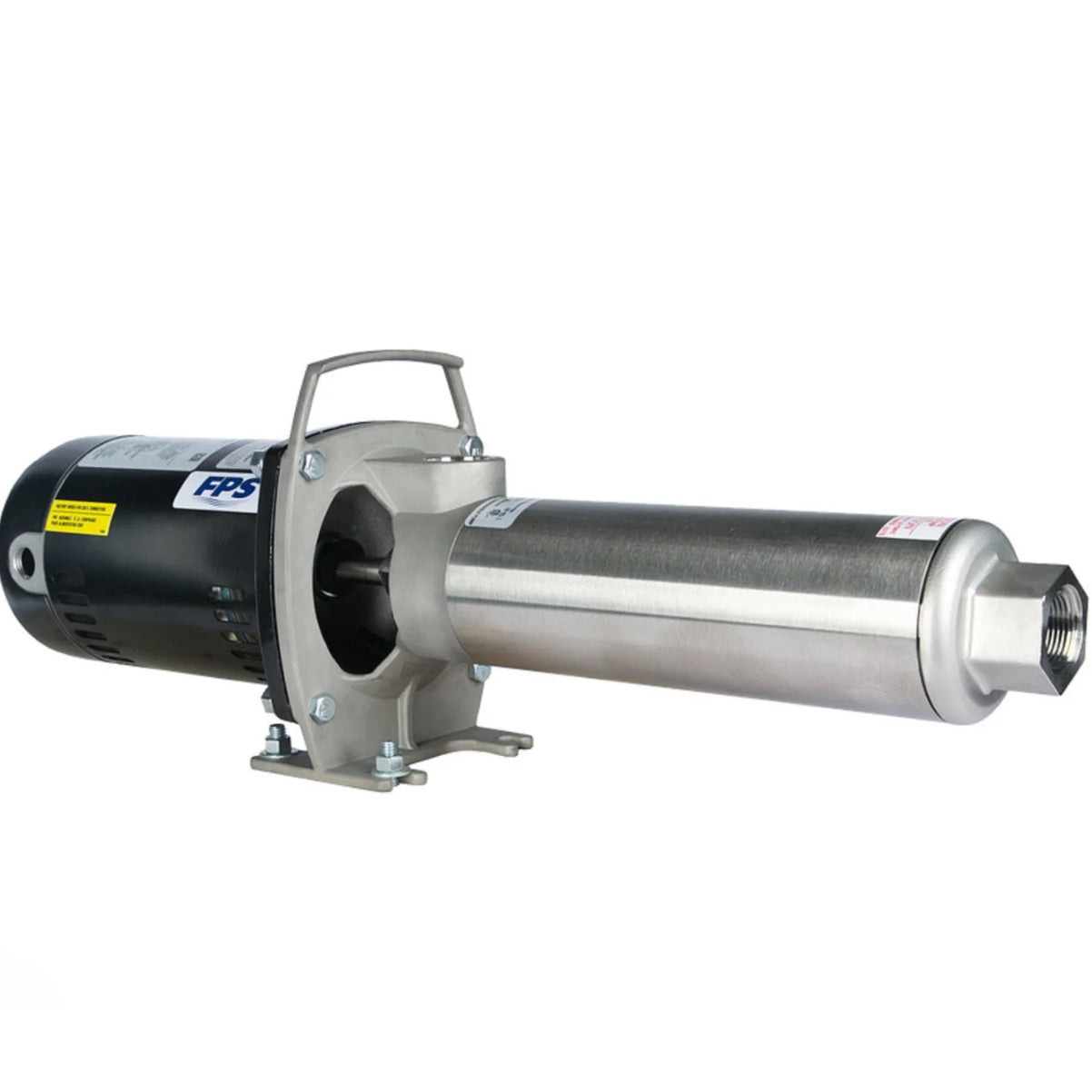

Franklin Electric 95832030 Model 20FBT2S4 BT4 Series Stainless Steel Multi-Stage Booster Pump (2 HP, Single Phase, 115/230V, ODP)
Franklin Electric 95832030 Model 20FBT2S4 BT4 Series Stainless Steel Multi-Stage Booster Pump (2 HP, Single Phase, 115/230V, ODP)
SKU:95832030
Couldn't load pickup availability
The Franklin Electric 95832030 Model 20FBT2S4 BT4 Series Stainless Steel Multi-Stage Booster can be used for residential or commercial applications. A stainless steel casing and maximum flow rate up to 20 gpm make it suitable for many different users. Designed and engineered by Franklin Electric - a brand you know and trust. Contact a Dade Pump customer service representative with any questions or for help selecting the correct pump for your needs.
Pump Casing Material: Stainless Steel
Voltage: 115/230V
Motor: 2 HP, Single Phase, ODP
Stages: 12
Impeller Material: Acetal
Ports: 1" NPT
Operating Flow Rate: 20 gpm - See Performance Chart
Maximum Water Temperature: 120 Degrees F
Duty Cycle: Continuous
Frequency: 60 Hz
The BT4 horizontal booster pump is a low to medium capacity, high pressure, multi-stage unit. The BT4 booster pump can function as a multi-purpose high pressure pump, boosting water pressure from either city mains or private water systems. It is also ideal for applications that require more pressure than flow. Size ranges from 5 gpm to 45 gpm.
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Motor | Surface |
| Protection [IP] | Not Applicable |
| Input Phase | Single-Phase |
| S.F. | 1.25 |
| Amps at 230 Volts | 12 A |
| Service Factor - 50Hz | 1 |
| Flow | 20 gpm |
| Minimum Head - 60 Hz | 492.13 ft |
| Stages | 12 |
| Motor Enclosure | ODP |
| Motor Cooling | Air |
Liquid |
|
| Maximum Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | AISI 304 Stainless Steel |
| Impeller | Closed |
| Impeller Material | Acetal |
| Discharge Material | Stainless Steel |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Stage Housing Diffuser Material | Modified PPO / Stainless Steel 304 |
| Suction Material | Stainless Steel |
Dimensions |
|
| Discharge | Threaded - FNPT |
| Discharge Diameter | 1 " |
| Suction Diameter | 1 " |
| Suction | Threaded - FNPT |
| Pump Length | 35.06 " |
| Product Weight | 55 lb |
| Product Weight with Pack | 55 lb |
| Carton Length | 1.8 " |
| Carton Width | 0.37 " |
| Carton Height | 12.25 " |
| Pump Height | 9.09 " |
| Pump Width | 6.5 " |
Other |
|
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Warranty Standard Time | 12 Months |
| Applications | Water Supply and Pressure Boosting |
