Franklin Electric 95940505 Model 5FS05P4-2W115, FS Series Submersible Well Pump (Flow 5 GPM, 1/2 HP, Shut Off Head 60 Hz 312 ft, 8 Stages, 115V, Single Phase)

Franklin Electric 95940505 Model 5FS05P4-2W115 FS Series Submersible Well Pump is a reliable and efficient water well solution designed for residential and light commercial groundwater applications. Featuring a 1/2 HP encapsulated motor, 60 Hz frequency, Single-Phase operation, and 115 VAC power, this durable 2-wire submersible well pump delivers a consistent 5 GPM flow rate while achieving a maximum 312-foot shut-off head at 60 Hz. The advanced 8-stage hydraulic design provides dependable pressure and efficient water delivery for deep well systems. Built with a corrosion-resistant AISI 304 stainless steel pump body, durable Acetal impellers, thermoplastic components, and an integrated check valve, this pump is engineered for long-lasting performance and reliability. The compact 4-inch class design fits standard water wells and is certified to ANSI/NSF Standard 61 for potable water applications. With a 12 Amp service factor rating, continuous-duty operation, and proven Franklin Electric quality, the 95940505 FS Series Well Pump is an excellent choice for homeowners seeking dependable water pressure and efficient well system performance.

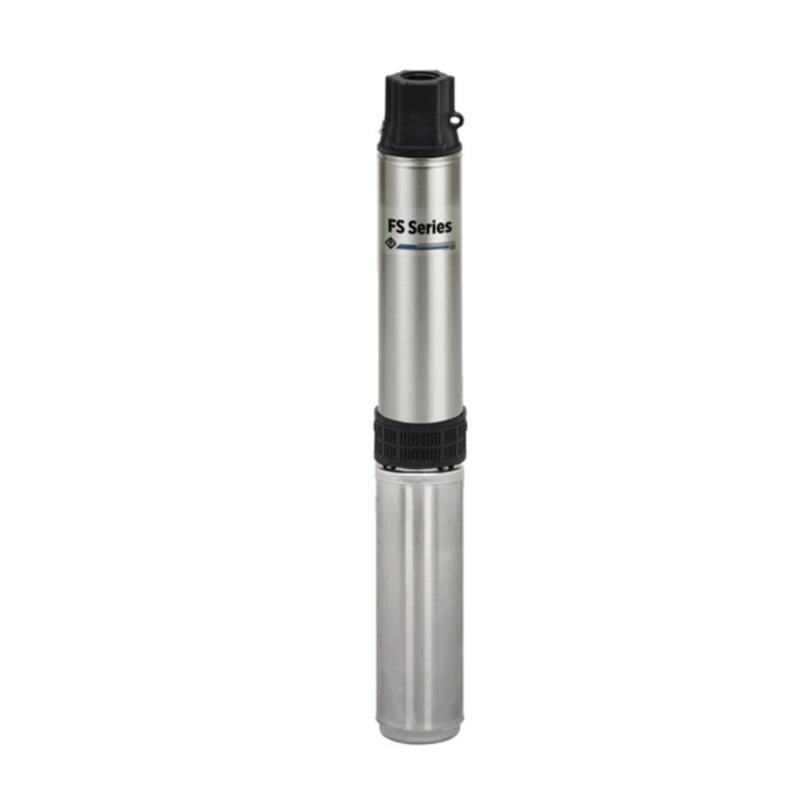

** Please Note:  Image is a stock photo and may not match exactly **

Features & Benefits

• Designed for use in 4" and greater diameter water well applications
• Eight performance ranges: 5, 8, 10, 12, 16, 18, 22 or 26 GPM
• Horsepower ranges: 1/2 to 5
• Exceeds all industry standards for quality manufacturing processes and operational safety
• Constructed from drinking water safe materials that are non-leeching and lead-free
• All stainless steel components are 300 series grade or better
• Industry-standard discharge head and NEMA motor connection bracket produced with proven, reliable, and durable materials. Available in 300 series stainless steel or engineered thermoplastic resins
• 1.25" NPT discharge pipe connection with sufficient wrench flat area allows for quick and easy installation
• Plastic outlet connection pumps have a Flomatic VFD style check valve; stainless steel connection pumps are equipped with a wafer disc-style check valve
• Pump hydraulics are driven by stainless steel, 7/16" hex shaft with a rigid top bearing and splined motor coupling for maximum power distribution efficiency
• 100% factory performance tested Powered by Franklin Electric corrosion-resistant super stainless 4-inch submersible motors with lightning protection
• The maximum water temperature with the proper flow is 120 °F/49 °C. Consult the factory for details.
• NSF/ANSI 61 Certified
