Franklin Electric 95961615 Model 16FS07S4-2W230, FS Series Submersible Well Pump (Flow 16 GPM, 3/4 HP, Shut Off Head 60 Hz 252 ft, 6 Stages, 230V, Single Phase, 2-Wire Stainless Steel)

The Franklin Electric 95961615 (Model 16FS07S4-2W230) is a durable and efficient 3/4 HP submersible well pump designed for residential wells, irrigation systems, and potable water applications. Built as part of Franklin Electric’s trusted FS Series, this pump features advanced floating stage hydraulics that enhance efficiency, reduce wear from abrasive conditions, and minimize internal leakage for improved performance and longer service life. Operating at 60 Hz, single-phase, 230 VAC, and drawing 8 amps, the 16FS07S4-2W230 delivers a powerful flow rate of 16 GPM with a 252-foot shut-off head at 60 Hz. Featuring 6 stages, this pump provides reliable pressure and consistent water delivery for a wide range of well system applications. Constructed with a corrosion-resistant AISI 304 stainless steel pump body, stainless steel intake and discharge components, an encapsulated motor, and a built-in check valve, it is engineered for durability and dependable operation. Certified to ANSI/NSF Standard 61 for drinking water systems, the Franklin Electric 95961615 is an excellent choice for professionals and homeowners seeking a high-quality 230V submersible well pump that combines efficiency, reliability, and long-lasting performance.

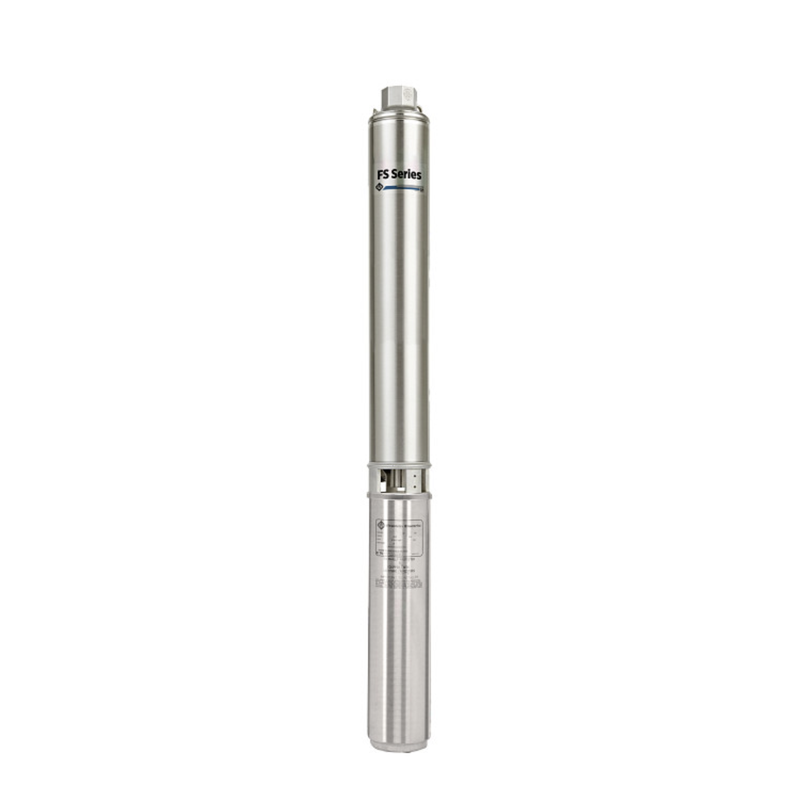

** Please Note:  Image is a stock photo and may not match exactly **

Features & Benefits:

• Designed for use in 4" and greater diameter water well applications
• Eight performance ranges: 5, 8, 10, 12, 16, 18, 22 or 26 GPM
• Horsepower ranges: 1/2 to 5
• Exceeds all industry standards for quality manufacturing processes and operational safety
• Constructed from drinking water safe materials that are non-leeching and lead-free
• All stainless steel components are 300 series grade or better
• Industry-standard discharge head and NEMA motor connection bracket produced with proven, reliable, and durable materials. Available in 300 series stainless steel or engineered thermoplastic resins
• 1.25" NPT discharge pipe connection with sufficient wrench flat area allows for quick and easy installation
• Plastic outlet connection pumps have a Flomatic VFD style check valve; stainless steel connection pumps are equipped with a wafer disc-style check valve
• Pump hydraulics are driven by stainless steel, 7/16" hex shaft with a rigid top bearing and splined motor coupling for maximum power distribution efficiency
• 100% factory performance tested Powered by Franklin Electric corrosion-resistant super stainless 4-inch submersible motors with lightning protection
• The maximum water temperature with the proper flow is 120 °F/49 °C. Consult the factory for details.
• NSF/ANSI 61 Certified
