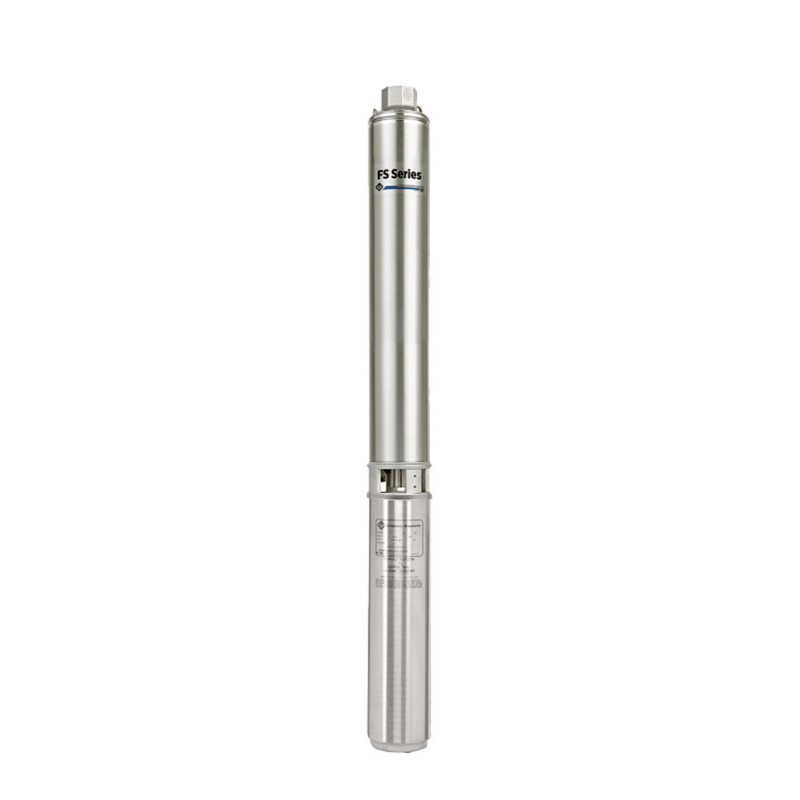

Franklin Electric 95961815 Model 18FS07S4-2W230, FS Series Submersible Well Pump (Flow 18 GPM, 3/4 HP, Shut Off Head 60 Hz 216 ft, 6 Stages, 230V, Single Phase, 2-Wire Stainless Steel)

The Franklin Electric 95961815 (Model 18FS07S4-2W230) is a high-efficiency 3/4 HP submersible well pump designed for reliable performance in residential, agricultural, and potable water applications. Featuring Franklin Electric’s advanced FS Series floating stage hydraulics, this pump is engineered to improve efficiency, reduce wear from abrasive conditions, and minimize internal leakage for enhanced durability and longer operating life. Operating at 60 Hz, single-phase, 230 VAC, and drawing 8 amps, the 18FS07S4-2W230 delivers a strong flow rate of 18 GPM with a 216-foot shut-off head at 60 Hz. Equipped with 6 stages, this pump provides dependable water pressure and consistent flow for a variety of well system applications. Built with a corrosion-resistant AISI 304 stainless steel pump body, stainless steel intake and discharge components, an encapsulated motor, and an integrated check valve, it delivers outstanding reliability and long-term performance. Certified to ANSI/NSF Standard 61 for drinking water systems, the Franklin Electric 95961815 is an excellent choice for professionals and homeowners seeking a durable 230V submersible well pump with efficient operation and trusted Franklin Electric quality.

** Please Note:  Image is a stock photo and may not match exactly **

Features & Benefits:

• Designed for use in 4" and greater diameter water well applications
• Eight performance ranges: 5, 8, 10, 12, 16, 18, 22 or 26 GPM
• Horsepower ranges: 1/2 to 5
• Exceeds all industry standards for quality manufacturing processes and operational safety
• Constructed from drinking water safe materials that are non-leeching and lead-free
• All stainless steel components are 300 series grade or better
• Industry-standard discharge head and NEMA motor connection bracket produced with proven, reliable, and durable materials. Available in 300 series stainless steel or engineered thermoplastic resins
• 1.25" NPT discharge pipe connection with sufficient wrench flat area allows for quick and easy installation
• Plastic outlet connection pumps have a Flomatic VFD style check valve; stainless steel connection pumps are equipped with a wafer disc-style check valve
• Pump hydraulics are driven by stainless steel, 7/16" hex shaft with a rigid top bearing and splined motor coupling for maximum power distribution efficiency
• 100% factory performance tested Powered by Franklin Electric corrosion-resistant super stainless 4-inch submersible motors with lightning protection
• The maximum water temperature with the proper flow is 120 °F/49 °C. Consult the factory for details.
• NSF/ANSI 61 Certified
