Franklin Electric 96175070304 Model 70FMH4P-63 MH Series Horizontal Multi-Stage Booster Pump (7.5 HP, Three Phase, 220V/440V, 70 GPM)
Franklin Electric 96175070304 Model 70FMH4P-63 MH Series Horizontal Multi-Stage Booster Pump (7.5 HP, Three Phase, 220V/440V, 70 GPM)
SKU:96175070304
Couldn't load pickup availability
The Franklin Electric 96175070304 Model 70FMH4P-63 MH Series Horizontal Multi-Stage Booster Pump is designed to meet your pressure boosting needs. All 300 series stainless steel wetted components with FKM mechanical shaft seal for added chemical resistance. Franklin Electric tests all pumps before they are packaged allowing you to purchase and install with confidence. Designed and manufactured in the USA by Franklin Electric, a trusted name in the industry.

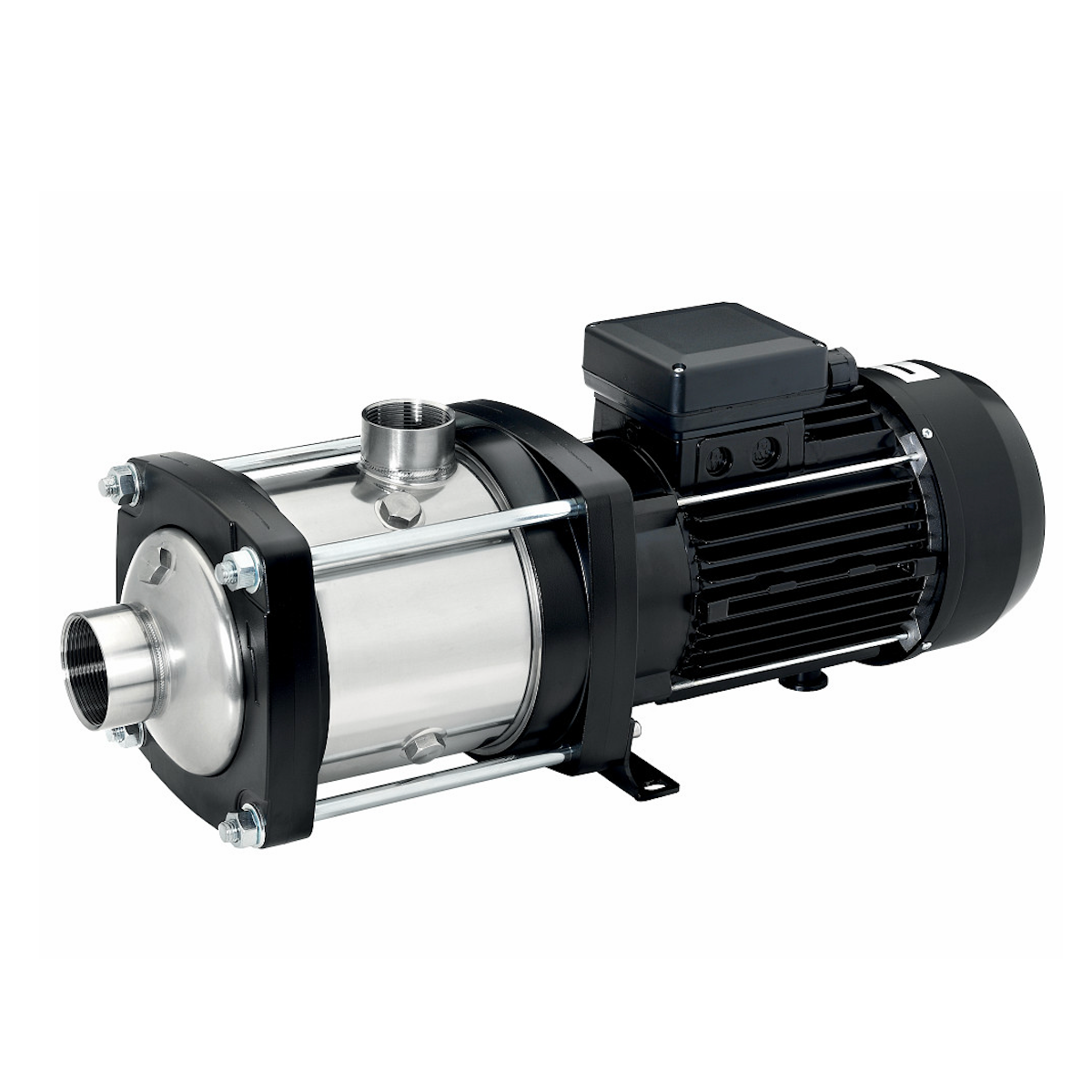

Picture is a stock series photo - it may not match your model. Please contact customer service for assistance selecting the correct product.
Pump Material: Stainless Steel
Motor Bracket: Aluminium
Motor: 7.5 HP, Three Phase
Volts: 220VAC / 440VAC
Stages: 4
Flow Rate: 70 GPM - See Chart
Discharge: 1.5" FNPT
Suction Diameter: 2"
Length: 25.04"
Weight: 96 lbs
The MH Series, multi-stage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications. The MH Series is offered in five flow rates, 3-phase options, and horsepower sizes up to 7.5HP to make sure you have the right pump to fit your application.
Overview
15-30-45 GPM MH Series
- All 300 series stainless steel wetted components
- FKM mechanical shaft seal for added chemical resistance
- Powered by high-quality, industry-proven, UL 778 approved indoor/outdoor square flange motors
- Available in 3 flow rates: 15, 30, and 45 gpm
- 5 motor hp size options in 1-phase or 3-phase
- High-pressure capabilities – 140 psi
- Able to pump fluids at temperatures up to 225 °F
- Can operate in suction lift installation up to 10 feet
- NSF/ANSI/CAN 372 Certified
70-90 GPM MH Series
- Compact close-coupled design; robust and rust resistant; superior efficiency and performance
- Heavy-duty oversized motor shaft
- Impellers and diffusers made of 300 series stainless steel for maximum durability
- Easy maintenance
- Robust ball bearing fitted into the motor bracket for greater longevity
- Flexible application baseplate
- Floating neck ring in PPS
- Strong and leak-proof ball bearing fitted in the motor
- Pumping of clear non-loaded fluids
- Mechanical seal carbon/silicon carbide/EPDM
- Three-phase, 2-pole motor efficiency class IE3; asynchronous, TEFC (Totally Enclosed, Fan-Cooled); P55 protection motor, insulation class F
Ratings |
|
| HP 60Hz | 7.5 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 220 VAC / 440 VAC |
| Motor | Surface |
| Efficiency [η] - Full Load (%) | 89.50 |
| Protection [IP] | IP55 |
| Motor Efficiency | 89.5 |
| Motor Insulation Classification | F |
| Poles | 2 |
| S.F. | 1 |
| Amps at 230 Volts | 19.9 A |
Operation |
|
| Maximum Flow Rate - 60 Hz | 123.28 gpm |
| Minimum Flow Rate - 60 Hz | 44.03 gpm |
| Flow | 70 gpm |
| Maximum Suction Lift | 0 |
| Shut Off 60 Hz | 270 ft |
| Stages | 4 |
| Max Solid Handling Size | 0.08 " |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Cooling | Air |
| Pump Efficiency | 67.7 % |
| Temperature Rating | 230 °F |
Liquid |
|
| Maximum Fluid Temperature | 195 °F |
Materials of Construction |
|
| Pump Body Material | AISI 304 Stainless Steel |
| Impeller | Radial |
| Impeller Material | Stainless Steel AISI 304 |
| Motor Bracket Material | Aluminium |
| Discharge Material | Stainless Steel AISI 304 |
| Seal Material | silicon carbide / silicon carbide / 316 SS / EPDM |
| Seal | Mechanical Seal |
| Diffuser Material | Stainless Steel AISI 304 |
| Stage Housing Diffuser Material | Stainless Steel 304 |
| Suction Material | Stainless Steel |
Dimensions |
|
| Discharge | Threaded - FNPT |
| Discharge Diameter | 1.5 " |
| Impeller Diameter | 4.33 " |
| Suction Diameter | 2 " |
| Suction | Threaded - FNPT |
| Pump Length | 25.04 " |
| Product Weight | 96 lb |
| Pump Height | 10.35 " |
| Pump Width | 7.4 " |
| Shaft Diameter | 0.63 " |
Other |
|
| Warranty Standard Time | 24 Months |
| Applications | Small domestic and industrial systems / Domestic water supply Water distribution / pressure boosting Irrigation / Gardening / Sprinklers / Rainwater recovery Industrial plants / Wash down unit Cooling and chilling / Heating and conditioning / Air conditioning systems Pumping of clear non-loaded fluids |
