Franklin Electric 96310725 Model 7FR15S4-2W230 FPS 3200 Series Stainless Steel 4" Submersible Well Pump (1 1/2 HP, Single Phase, 230V, 23 Stage, 2-Wire, 7 GPM)

The Franklin Electric 96310725 Model 7FR15S4-2W230 FPS 3200 Series Stainless Steel 4" Submersible Well Pump is built with a smaller diameter than standard 4" pumps allowing easier installation. Improved hydraulic performance and upgraded internals increase reliability and longevity. Franklin Electric tests all pumps before they are packaged allowing you to purchase and install with confidence. Designed and manufactured in the USA by Franklin Electric, a trusted name in the industry.

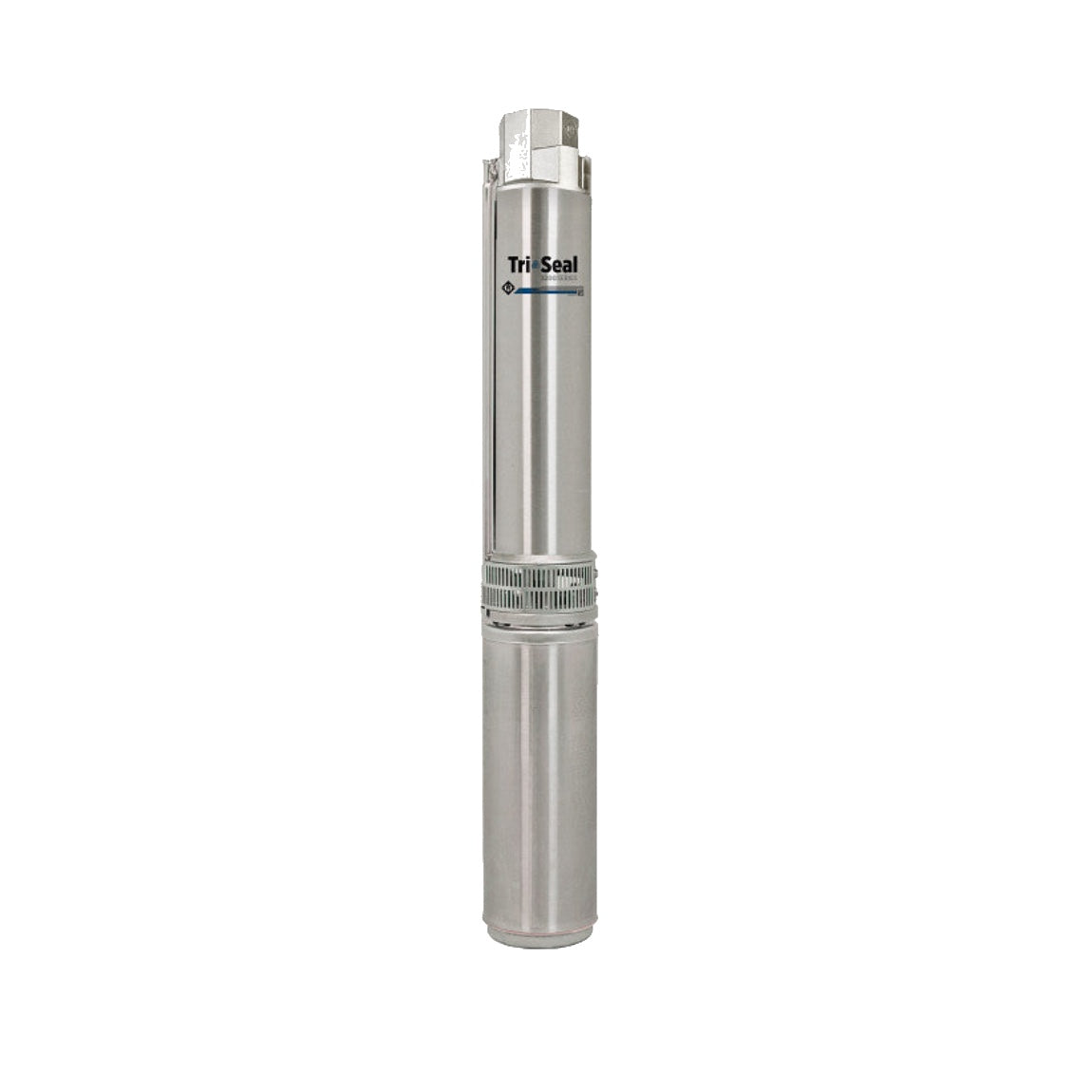

Picture is a stock series photo - it may not match your model. Please contact customer service for assistance selecting the correct product.

Pump Material:  Stainless Steel

Motor Bracket:  Stainless Steel

Voltage:  230V

Motor:  1 1/2 HP, Single Phase

Stages:  23

Flow Rate:  7 GPM - See Chart

Discharge:  1-1/4" NPT

Length:  40.5"

Weight:  48 lbs

The FPS 3200 Series is a submersible well pump and is designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric’s industry leading submersible 4-inch motor. This reduced diameter pump end makes it ideal for installations where the well is considered encrusted or tight in comparison to a standard 4-inch well. The FPS 3200 Series submersible well pump also offers a hydraulic stage design optimized for greater water and pressure output when installed at deeper well depths.

Features & Benefits:

• Pump diameter is smaller than a standard 4-inch submersible for easier installation in reduced diameter 4-inch wells.
• Hex rubber bearing and ceramic shaft sleeve allows sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures.
• Improved hydraulic performance for deeper set depths at all horsepower and flow ratings.
  • Floating stage design allows for maximum efficiency while minimizing the downthrust load that is transferred to the motor.
  • Modified PPO diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance.
  • Acetal impeller provides high performance to increase pressure output while reducing system losses from friction.
• Removable spring-loaded check valve.
• Stainless steel pump intake screen and stainless steel cable guard.
• Maximum water temperature: 120 °F / 49 °C.
• Powered by corrosion-resistant Franklin Electric submersible 4-inch motor with lightning protection.
