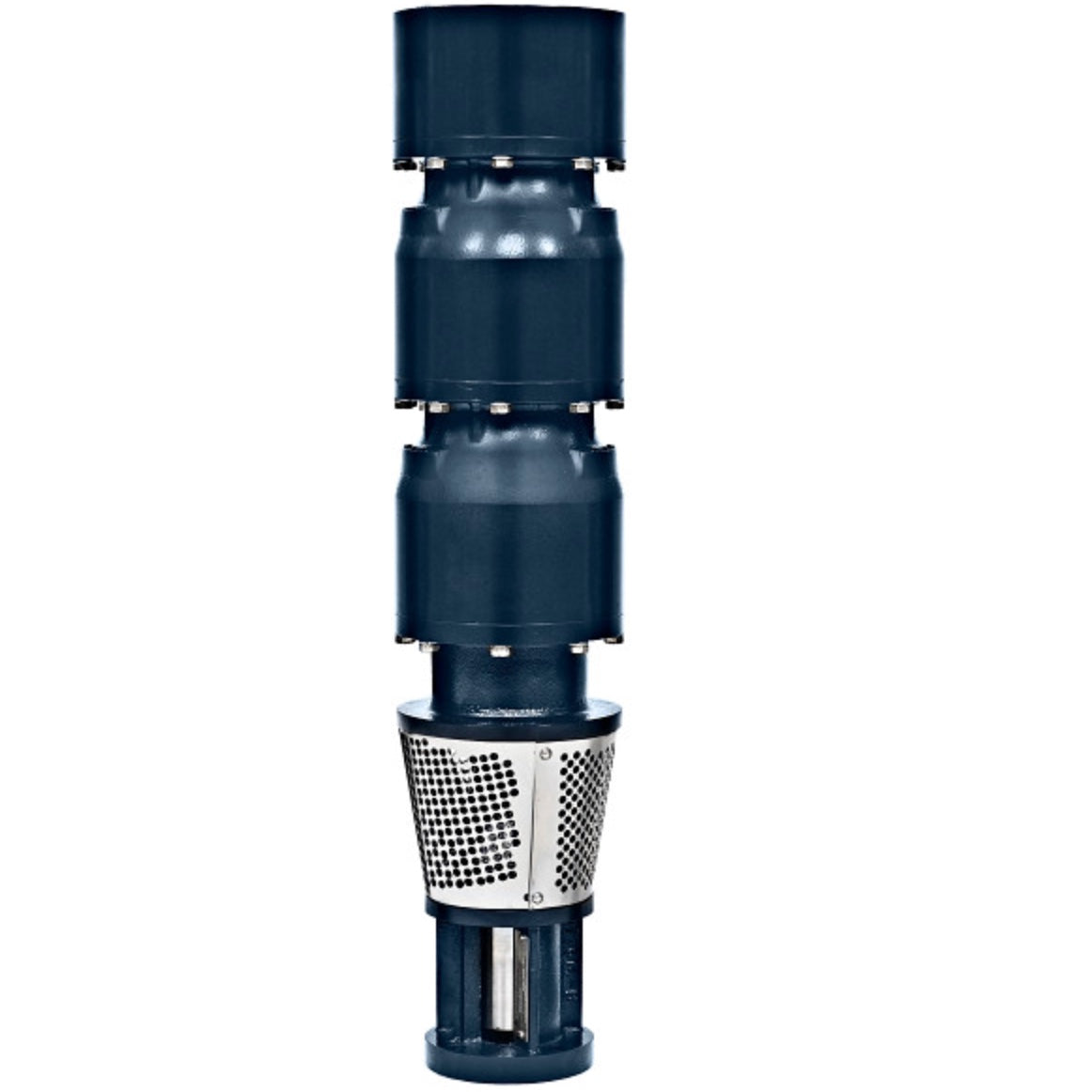

Franklin Electric 97080225806 - 225STS40D8X-0684 8" STS Series Submersible Turbine Pump (40 HP, 60Hz, 225 GPM)
Franklin Electric 97080225806 - 225STS40D8X-0684 8" STS Series Submersible Turbine Pump (40 HP, 60Hz, 225 GPM)
SKU:97080225806
Couldn't load pickup availability
The Franklin Electric 97080225806 - 225STS40D8X-0684 8" STS Series Submersible Turbine Pump flows up to 225 gpm and is the preferred choice for irrigation, agricultural, industrial, commercial and municipal water pumping applications. Designed and manufactured by Franklin Electric for quality and reliability when high flow or pressure is needed. Please contact a member of our sales or service team for assistance in selecting the correct pump for your needs!
Motor: 40 HP
Frequency: 60Hz
Flow: 225 GPM
Shut Off 60 Hz: 760'
Maximum Allowable Amount of Sand: 150 ppm
Impeller: Axial, Stainless Steel AISI 304
Discharge: 4" FNPT
The complete STS Series submersible turbine pump family includes 5-inch, 6-inch, 8-inch, and 9-inch models ideal for irrigation, agricultural, industrial, commercial, or municipal water pumping applications. This submersible turbine pump offers flows from 60 to 1600 gpm and a total dynamic head up to 2300 feet. Each pump features premium materials of construction, including ductile iron motor brackets, ductile iron discharges, cast 304 stainless steel impellers, robust spiral cutlass rubber intermediate bowl bearings, and copper bismuth bronze discharge and motor bracket bearings.
Series Specifications:
| HP | 40 hp |
| Frequency | 60 Hz |
| Flow | 225 gpm |
| Shut Off 60 Hz | 760 ft |
| Maximum Allowable Amount of Sand | 150 ppm |
| Maximum Operating Temperature | 194 °F |
| Pump Efficiency | 79.0 % |
| Temperature Rating | 194 °F |
| Trim | 1A 5B |
| Minimum Immersion Depth | 120 " |
Construction Material:
| Impeller | Axial |
| Impeller Material | Stainless Steel AISI 304 |
| Check Valve | No |
| Discharge Material | Ductile Iron |
| Intake Screen Material | 300 Series |
| Fasteners Material | 300 Series |
| Top Bearing Material | Bronze |
| Coupling Material | Stainless Steel AISI 416 |
| Cable Guard Material | 300 Series |
| Bowl Material | Cast Iron |
| Intermediate Bearing Material | Rubber |
| Motor Adapter Bracket Material | Ductile Iron |
| Pump Shaft Material | Stainless Steel AISI 416 |
Dimensions:
| Discharge | Threaded - FNPT |
| Discharge Diameter | 4 " |
| Bowl Diameter | 7.36 " |
| Diameter With Cable Guard | 7.6 " |
| Motor Length | 36.4 " |
| Pump Length | 52.77 " |
| Product Weight | 254 lb |
| Product Weight with Pack | 282 lb |
| Pump Bracket | 8 " |
Certifications and Warranty:
| Drinking Water Agency Approvals | ANSI/NSF Standard 61 |
